2006 Suzuki DL1000 Fuel Delivery Pipe Diagram

← All diagrams

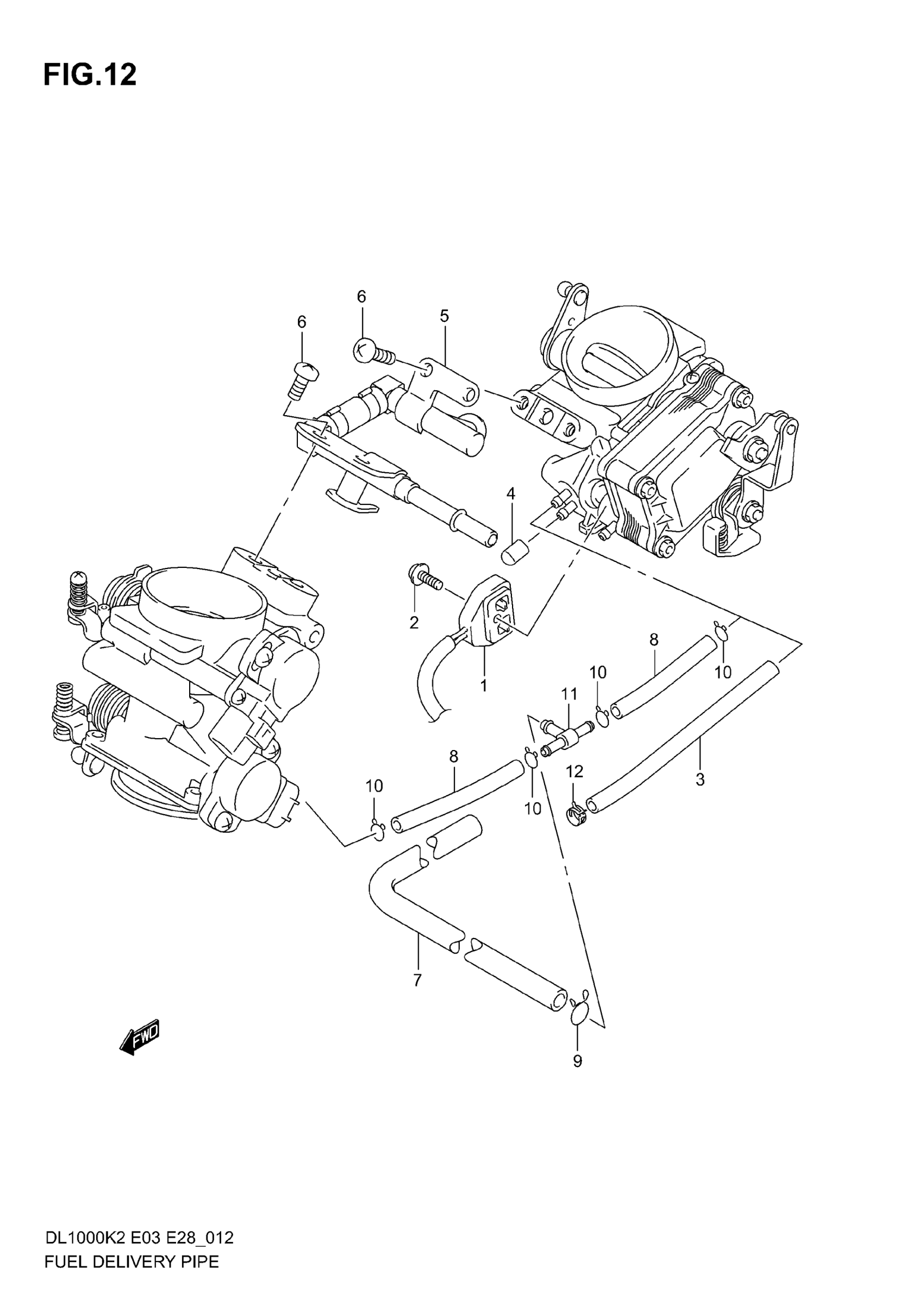

Find the part on the Fuel Delivery Pipe diagram for your 2006 Suzuki DL1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki DL1000 Fuel Delivery Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS ASSY

13477-39F00

1
Out of stock

2

SCREW This part replaces 02112-34163.

02112-3416B

1
Out of stock

3

HOSE (L:425) | E3,E28 L:125 This part replaces 13683-10F60.

13683-10F61

1
Out of stock

4

CAP

13274-84000

2
Out of stock

5

DELIVERY PIPE ASSY This part replaces 15730-06G00.

15730-06G01

1
Out of stock

6

SCREW

13602-06128

4
Out of stock

7

HOSE | E33 This part replaces 13683-06G10.

13683-06G11

1
Out of stock

8

HOSE(3.2X7.4X22 | E33 L:225!70 This part replaces 13681-39F00-225.

13681-39F01-225

2
Out of stock

9

CLIP | E33 This part replaces 09401-10410.

09401-10401

1
Out of stock

10

CLIP | E33

09401-06101

4
Out of stock

11

NIPPLE | E33

13685-04F10

1
Out of stock

12

CLIP (ID:9.4,H:8) | E33

09401-09403

1
Out of stock
