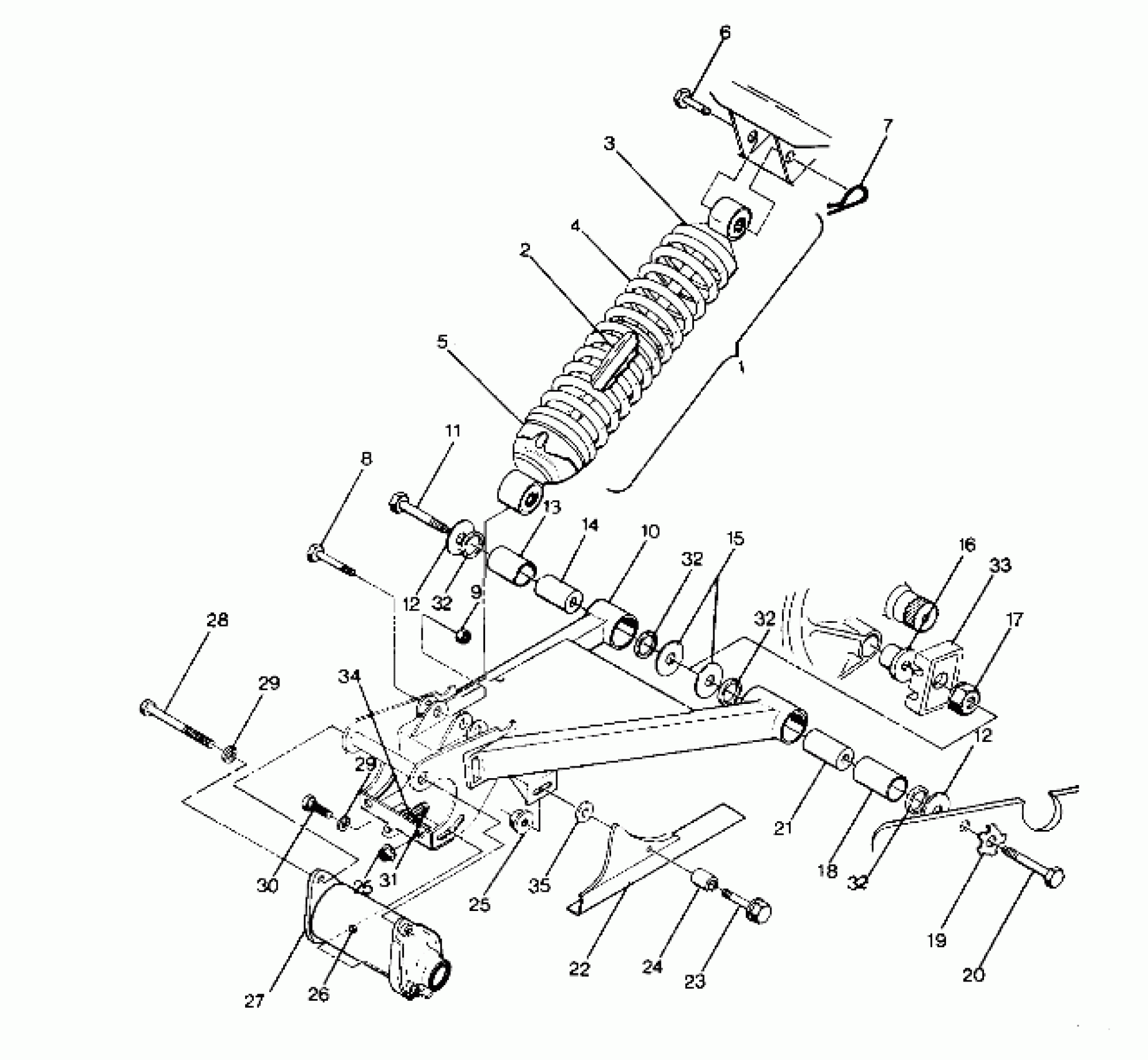

Polaris CYCLONE - W877828 Swing Arm Weldment and Rear Shock Assembly (4913501350021A) Diagram

#

Description
Price

1

SHOCK ASM. [No Longer Available] (Incl. 2,3,4,5)

1580016

Unavailable

2

SHOCK

7041190

Unavailable

3

RETAINER, UPPER

5220631

Unavailable

4

SPRING

7041183

Unavailable

5

RETAINER,BOTTOM

5610101

Unavailable

6

PIN, CLEVIS(10)

7662014

Unavailable

7

HAIR PIN COTTER,(10) [No Longer Available]

7661208

Unavailable

8

BOLT(10) Substituted by 7515492

7512410

Unavailable

9

NUT-LOCK(10)

7542439

$1.49

10

ARM, SWING

1580018

Unavailable

11

BOLT, SPECIAL

7512664

Unavailable

12

BUSHING, MACH.(10)

7555752

Unavailable

12

BUSHING, MACH.(10)

7555752

Unavailable

13

BEARING

3576507

Unavailable

14

BUSHING,LH SWING ARM

5010232

$45.99

15

WASHER(10)

7555749

$1.49

16

BUSHING,SWING ARM MT.

5630267

Unavailable

17

NUT, LOCK(10)

7542717

Unavailable

18

BEARING

3576508

Unavailable

19

PLATE,BOLT LOCK

5220611

Unavailable

20

BOLT, SPECIAL

7512665

Unavailable

21

BUSHING,RH SWING ARM

5010233

Unavailable

22

GUARD, CHAIN

5430776

$35.99

23

SCREW-FLANGED(10)

7515304

$5.59

24

Bushing

5332828

$9.59

25

NUT LOCK(10)

7542321

$1.49

25

NUT LOCK(10)

7542321

$1.49

26

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

27

HOUSING,AXLE, WELD Substituted by 1011657-067

1011556

Unavailable

28

BOLT

7512670

Unavailable

29

LOCK WASHER(10)

7553201

$3.99

29

LOCK WASHER(10)

7553201

$3.99

30

BOLT(10)

7512669

Unavailable

31

BOLT, ADJUSTER

7080293

Unavailable

32

SEAL,OIL

3610016

$28.32

32

SEAL,OIL

3610016

$28.32

32

SEAL,OIL

3610016

$28.32

32

SEAL,OIL

3610016

$28.32

33

GUIDE,CHAIN,INNER

5430934

$28.79

34

NUT HEX(10)

7542301

$1.59

35

WASHER,WROUGHT(10)

7558302

$1.59
