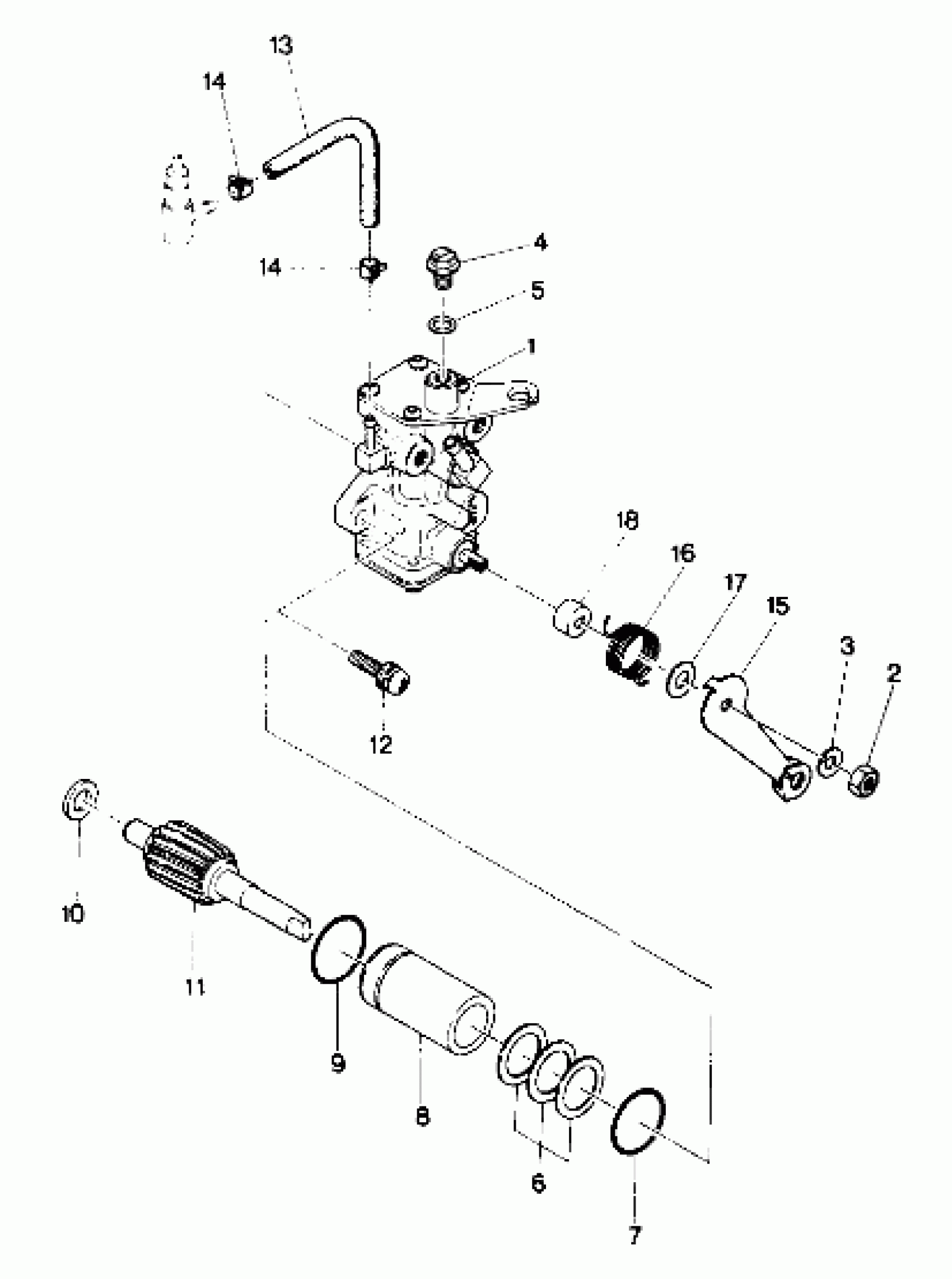

Polaris CYCLONE - W877828 Oil Pump Assembly (4913501350033A) Diagram
#
Description
Price
1
OIL PUMP ASM. (Incl. 4,5,7,13-18)
3083808
Unavailable
4
SCREW-AIR VENT
3083125
Unavailable
6
SPACER #3
3083673
Unavailable
6
SPACER #2
3083672
Unavailable
6
SPACER #1
3083671
Unavailable
7
O RING
3083127
Unavailable
8
BUSHING, OIL PUMP
3083674
Unavailable
9
O RING
3083129
Unavailable
11
Gear, Small
3083429
Unavailable
12
SCREW&WASHER ASM. Substituted by 3083774
3083558
Unavailable
13
PIPE-RUBBER 3
3083140
Unavailable
15
LEVER, CONTROL
3083809
Unavailable
16
SPRING-RETURN
3083123
Unavailable
