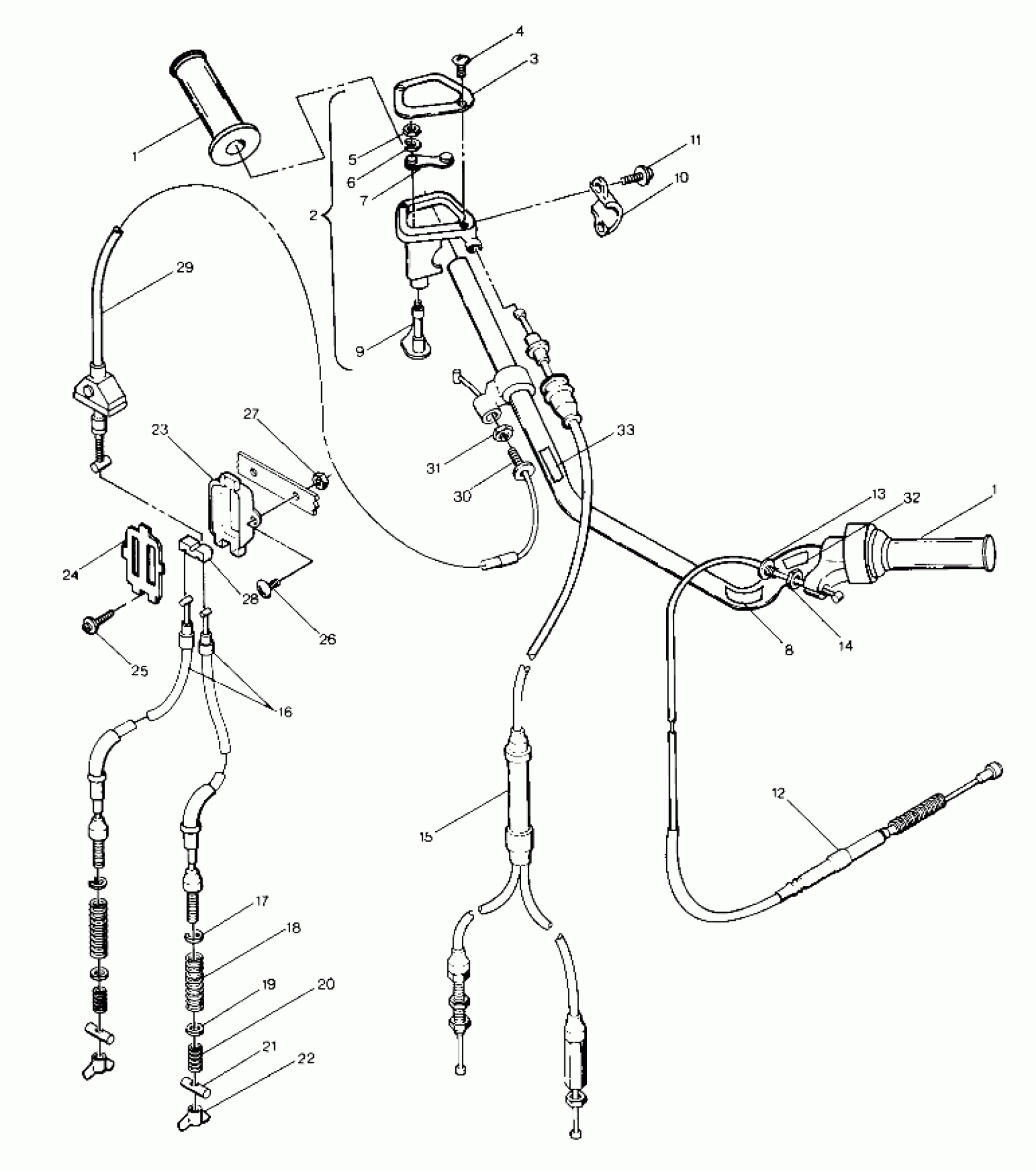

Polaris CYCLONE - W877828 Hand Control Cable Assembly (4913501350013A) Diagram
#
Description
Price
2
LEVER,THROTTLE ASM. [No Longer Available]
2010045
Unavailable
3
COVER,THROTTLE CONTROL (Incl. 3-9)
5430804
Unavailable
4
SCREW
2010054
Unavailable
5
NUT
2010053
Unavailable
6
WASHER [No Longer Available]
2010052
Unavailable
7
ARM,THROTTLE [No Longer Available]
2010069
Unavailable
8
DECAL,O'RIDE SWITCH Substituted by 7076274
7072390
Unavailable
9
LEVER
2010049
Unavailable
10
HOLDER,LEVER,LOW.1
2050005
Unavailable
11
SCREW&WASHER
2010047
Unavailable
12
CABLE,BRAKE
7080340
Unavailable
13
BOLT
2050023
Unavailable
14
NUT
2050024
Unavailable
15
CABLE, THROTTLE
7080328
Unavailable
16
CABLE, BRAKE
2050038
Unavailable
18
SPRING, COMPRESSION
2050033
Unavailable
19
WASHER
2050034
Unavailable
20
SPRING,COMPRESSION
2050015
Unavailable
21
PIN
2050016
Unavailable
22
NUT, WING
2050014
Unavailable
23
HOUSING, BRAKE LINE [No Longer Available]
2050029
Unavailable
24
PLATE
2050031
Unavailable
25
SCREW W/ WASHER
2050032
Unavailable
26
SCREW(10)
7511989
Unavailable
28
CABLE, JOINT
2050030
Unavailable
29
CABLE,BRAKE,UPPER
2050028
Unavailable
32
DECAL,R.BRK,(ENG/FR.) [No Longer Available]
7072377
Unavailable
33
DECAL,F.BRK,(ENG/FR) [No Longer Available]
7072378
Unavailable
