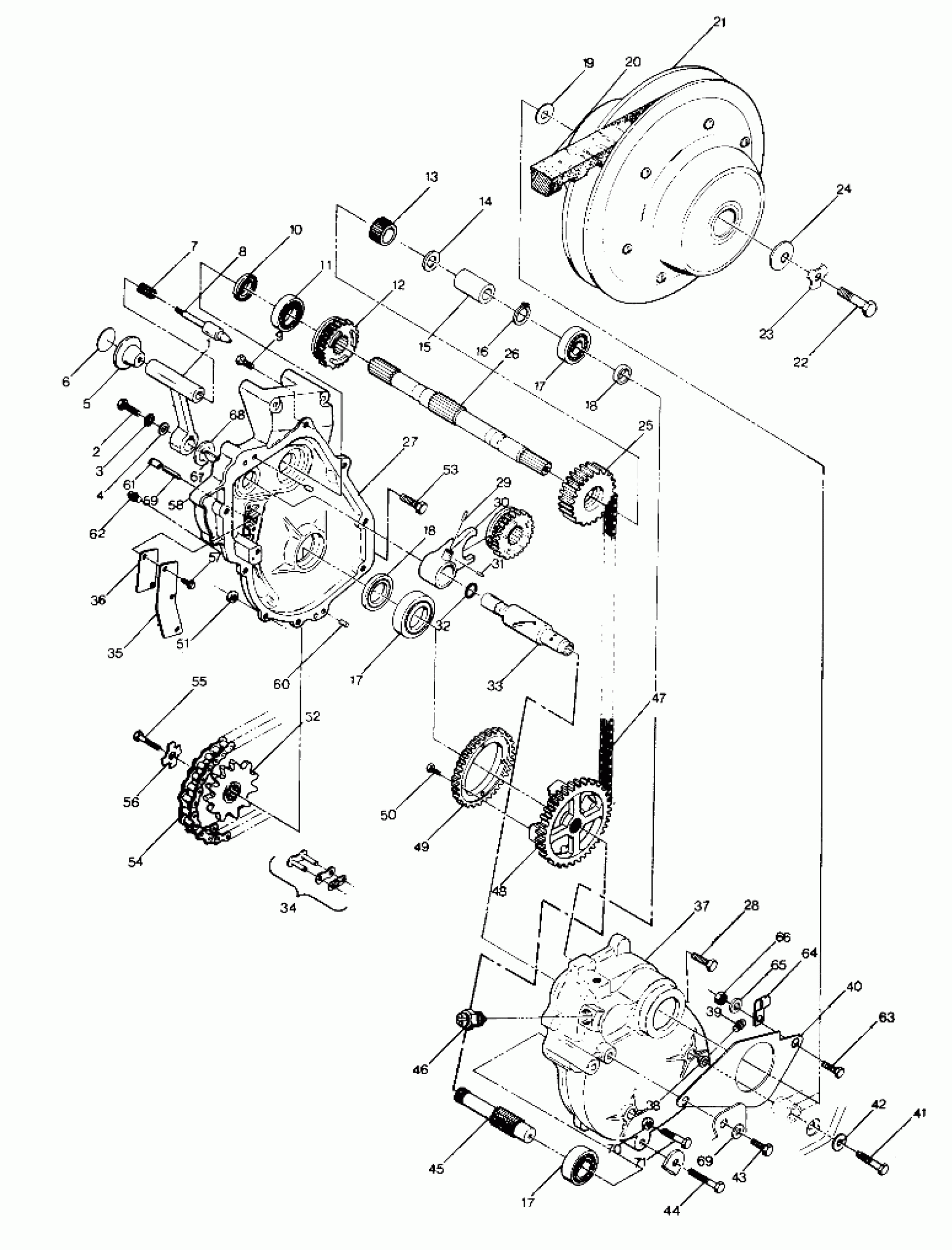

Polaris CYCLONE - W877828 Gearcase Assembly (4913501350025A) Diagram

#

Description
Price

2

BOLT(10) Substituted by 7512240

7512111

Unavailable

3

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

4

WASHER(10)

7558221

$2.39

5

KNOB

7030006

Unavailable

6

DECAL,SHIFT KNOB [No Longer Available]

7072375

Unavailable

7

SPRING,SHIFT LEVER

7041170

$36.03

8

SHAFT,SHIFT LEVER

5020470

$24.33

9

SCREW(10)

7512242

$2.39

10

SEAL, OIL

3610014

Unavailable

11

BEARING, BALL

3514001

$19.99

12

PINION, REVERSE

5130621

$152.37

13

BEARING, NEEDLE

3554502

Unavailable

14

BUSHING, MACH.(10)

7555752

Unavailable

15

SPACER, INPUT SHAFT

5010210

$17.30

16

RING, RET.(10)

7710411

Unavailable

16

RING, RET.(10)

7710411

Unavailable

17

BEARING,205,W/O SEAL

3514304

$15.99

17

BEARING,205,W/O SEAL

3514304

$15.99

17

BEARING,205,W/O SEAL

3514304

$15.99

18

SEAL, OIL

3610015

Unavailable

19

SPACER, DRIVEN

5211041

Unavailable

20

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

21

CLUTCH,DRIVEN Substituted by 1322127

1322120

Unavailable

22

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

23

LOCK WASHER(10)

7552901

$1.49

24

WASHER, DOMED(10)

5220646

$2.39

25

GEAR, FWD.

5130620

$202.17

26

SHAFT, INPUT

5020467

Unavailable

27

GASKET ELIMIN.50CCTUBE Substituted by 2871557

2870587

Unavailable

28

SCREW(10)

7512243

Unavailable

29

PIN, DOWEL(10)

7661819

Unavailable

30

FORK, SHIFT Substituted by 5130662

5130594

Unavailable

31

PIN, SPRING(10)

7661206

Unavailable

32

O RING(10)

5410440

$4.84

33

SHIFT, SHAFT [No Longer Available]

5130616

Unavailable

34

CONNECTOR LINK

3225024

$19.99

35

PLATE, VENT

5211036

Unavailable

36

GASKET, VENT

5810305

Unavailable

37

GEARCASE, LH

5130610

$276.99

38

BUSHING,SWING ARM MT.

5630267

Unavailable

39

PLUG,PIPE,MAGNETIC

7051512

Unavailable

40

RETAINER,BULKHEAD,LH

5220636

Unavailable

41

BOLT, SPECIAL

7512664

Unavailable

42

WASHER(10)

7555749

$1.49

43

BOLT(10) Substituted by 7512492

7515458

Unavailable

44

BOLT(10)

7515472

$2.39

45

SHAFT, OUTPUT Substituted by 5130644

5020461

Unavailable

46

SW,REV./NEUT.INDIC.

4110062

$32.37

47

CHAIN, SILENT

3224038

Unavailable

48

GEAR,FWD,LGE. Substituted by 5130644

5130619

Unavailable

49

RING GEAR, REVERSE Substituted by 5130644

5130590

Unavailable

50

BOLT(10)

7512247

$2.39

51

NUT LOCK(10)

7542403

$3.99

52

SPKT, 12T (Opt.)

3221044

Unavailable

52

SPKT, 11T (Opt.)

3221043

Unavailable

52

SPKT,13T,SPLINED

3221041

$43.99

53

SCREW(10)

7512225

$3.99

54

CHAIN, DRIVE Substituted by 3224056-078

3224040

Unavailable

55

BOLT(10)

7512391

Unavailable

56

WASHER,SHAKEPROOF,5/16

7577902

Unavailable

57

SCREW(10)

7512208

$3.99

58

GEARCASE, RH

5130611

Unavailable

60

PIN, DOWEL(10)

7661904

Unavailable

61

KIT-TANK VENT

2200190

Unavailable

61

OIL,GAL,CHAINCASE&TRANNY(6)3.8L [No Longer Available]

2870464

Unavailable

62

PLUG, PIPE(10)

7051511

Unavailable

63

BOLT(10) Substituted by 7512457

7512491

Unavailable

64

CLAMP, CABLE

7080326

Unavailable

65

WASHER(10) Substituted by 7555806

7555720

$0.79

66

NUT-LOCK(10)

7542439

$1.49

67

WEIGHT, KEY(10)

7721112

Unavailable

68

MACHINERY BUSHING(10)

7556301

$3.19

69

NUT(10)

7542404

$1.59

69

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

69

BOLT(10)

7515485

$3.03

69

GEARCASE ASM. [No Longer Available]

1341041

Unavailable

69

NUT(10)

7542404

$1.59

69

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

69

BOLT(10)

7515485

$3.03

69

GEARCASE ASM. [No Longer Available]

1341041

Unavailable
