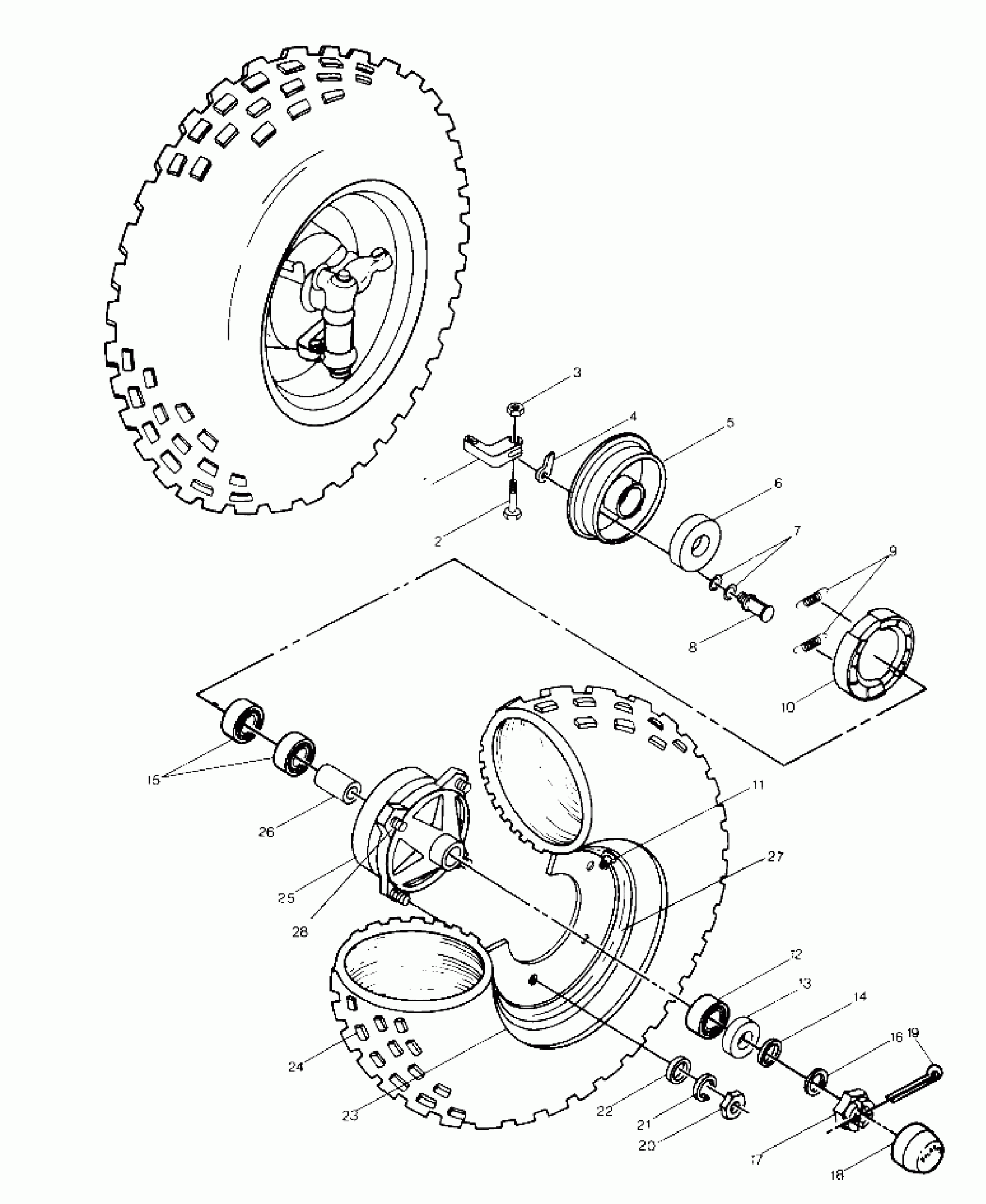

Polaris CYCLONE - W877828 Front Wheel Assembly (4913501350015A) Diagram
#
Description
Price
1
LEVER, CAMSHAFT [No Longer Available]
1525010
Unavailable
1
LEVER, CAMSHAFT
1525016
Unavailable
2
BOLT [No Longer Available]
1525020
Unavailable
3
NUT [No Longer Available]
1525021
Unavailable
4
PLATE, INDICATOR
1525011
Unavailable
5
PLATE,RH BRAKESHOE [No Longer Available]
1525006
Unavailable
5
PLATE,LH BRAKESHOE
1525014
Unavailable
6
SEAL, OIL
1525013
Unavailable
7
O RING
1525012
Unavailable
8
CAMSHAFT
1525009
Unavailable
10
BRAKE SHOE COMPL. Substituted by 2200245
1525007
Unavailable
12
BEARING
1525003
Unavailable
14
COLLAR
1525022
Unavailable
15
BEARING
1525005
Unavailable
18
COVER,DUST,HUB Substituted by 5411164
5410404
Unavailable
20
NUT
1525024
Unavailable
21
WASHER, SPRING
1525026
Unavailable
22
WASHER, PLAIN
1525025
Unavailable
23
RIM,FRONT,PRIMED Substituted by 1520118
1520127
Unavailable
24
TIRE,FR,(22X8-10)
5410408
Unavailable
25
HUB,FRONT
5130645
Unavailable
26
SPACER, BEARING
1525002
Unavailable
27
DECAL,WHEEL(CYCLONE) [No Longer Available]
7072407
Unavailable
28
STUD, WHEEL
7516715
Unavailable
