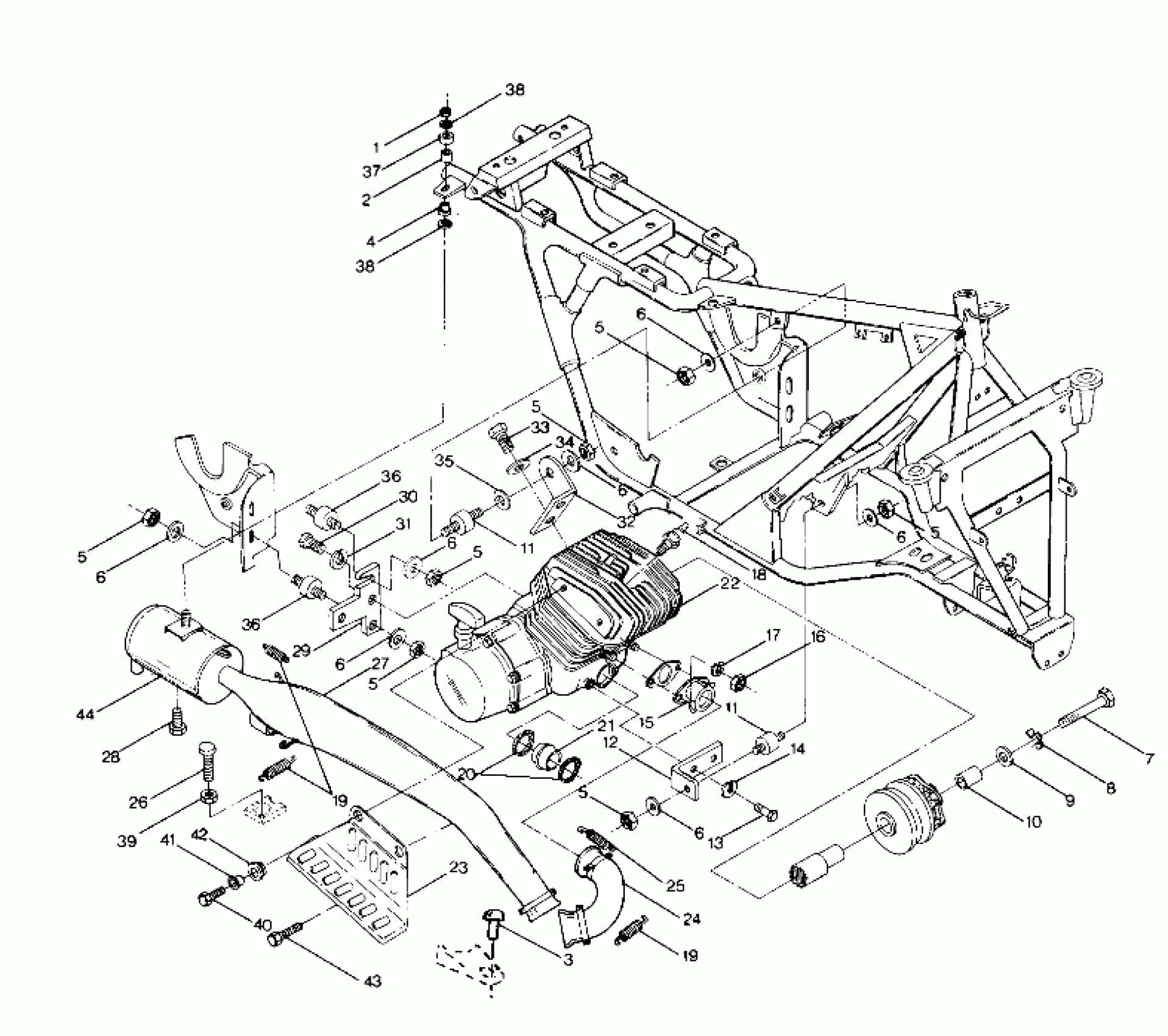

Polaris CYCLONE - W877828 Engine and Muffler Mounting (4913501350005A) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

2

BUSHING,SILENCER MT.

5010235

Unavailable

3

DAMPNER, VIB.

5410467

$8.73

4

DAMPENER

5410241

$5.22

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

7

BOLT(10)

7512566

$33.24

8

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

9

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

10

BUSHING-.437 X.770 X.50

5430261

$7.14

11

MOUNT,MOTOR

3110026

$40.46

11

MOUNT,MOTOR

3110026

$40.46

12

PLATE,FRONT MT.

5220589

Unavailable

13

SCREW(10)

7512490

$3.97

14

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

15

MANIFOLD WELD.

1260521

Unavailable

16

NUT(10)

3080285

Unavailable

17

WASHER LOCK ,(10)

3080530

$3.17

18

SPARKPLUG, RN4YC(3)

3070167

Unavailable

19

SPRING RETURN EXHAUST Substituted by 7042031

3081078

$6.46

19

SPRING RETURN EXHAUST Substituted by 7042031

3081078

$6.46

20

STRAP, BLK

7080272

Unavailable

21

BOOT,CLUTCH INTAKE

5410421

$11.32

22

ENG.CYCLONE(ATV) [No Longer Available]

1211450

Unavailable

23

SHIELD,MUFFLER

5220802

Unavailable

24

HEADPIPE WELD. [No Longer Available]

1260517

Unavailable

25

SPRING-EXHAUST(10)

7042029

$5.65

26

SUPPORT

3110031

Unavailable

27

MUFFLER WELD.

1260516

Unavailable

28

BOLT(10)

7512666

$2.38

29

MOUNT,REAR Substituted by 5241056-067

5220757

Unavailable

32

MOUNT,ENG.,TOP Substituted by 5220471-067

5220471

Unavailable

33

BOLT(10)

7515321

Unavailable

34

LOCK WASHER(10)

7552901

$1.19

35

INSULATOR,MOTOR MT.

5430802

$28.32

36

MOUNT, MOTOR

3110028

Unavailable

36

MOUNT, MOTOR

3110028

Unavailable

37

WASHER,RUBBER

5410436

$1.59

38

WASHER(10)

7555716

$1.59

38

WASHER(10)

7555716

$1.59

39

NUT HEX(10)

7542301

$1.59

40

BOLT&WASHER

3083730

$4.76

41

COLLAR

3083732

Unavailable

42

MOUNTING,RUBBER

3083731

$4.92

43

BOLT&WASHER

3083729

Unavailable

44

ARRESTOR, SPARK [No Longer Available]

1260520

Unavailable
