1979 Kawasaki Custom Cylinders/pistons/crankshaft Diagram

← All diagrams

Find the part on the Cylinders/pistons/crankshaft diagram for your 1979 Kawasaki Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

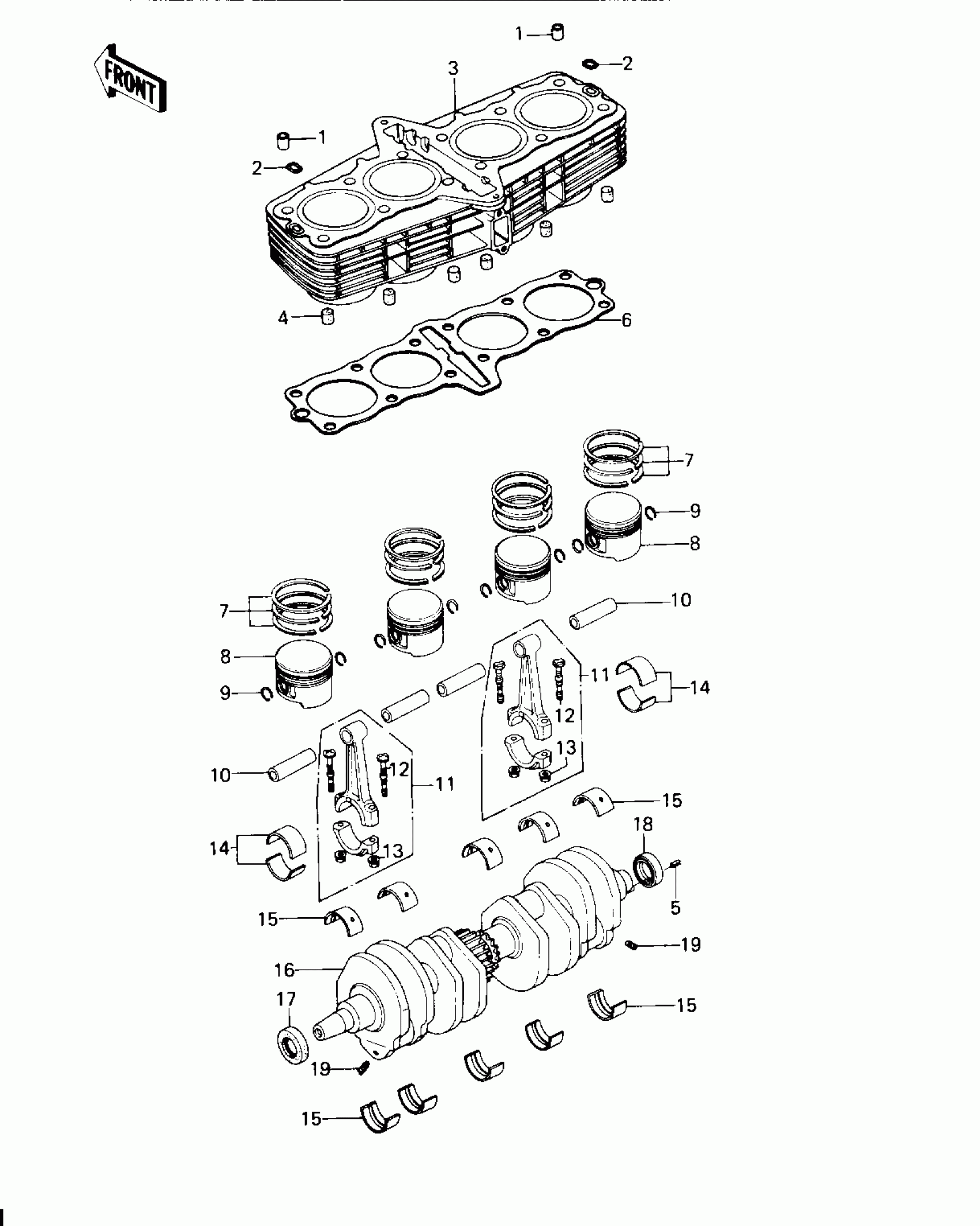

1979 Kawasaki Custom Cylinders/pistons/crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIN,11X14X12.3

92043-1266

1
Out of stock

2

RING-O,CYLINDER OIL LINE PIN

92055-1147

1
Out of stock

3

CYLINDER

11005-1039

1
Out of stock

3

CYLINDER

11005-1039

1
Out of stock

4

DAMPER,13X13.8

92075-075

1
Out of stock

4

PLUG,DAMPER

92066-1016

1
Out of stock

5

PIN-SPRING,4X8

555A0408

1
Out of stock

6

GASKET,CYLINDER BASE

11009-046

1
Out of stock

7

RING SET,PISTON,STD

13008-059

1
Out of stock

7

RING SET,0.020",O.S.

13025-061

—
Out of stock

7

RING SET,0.040",O.S.

13024-060

—
Out of stock

8

PISTON,STD

13001-1002

1
Out of stock

8

PISTON,STD

13001-1002

1
Out of stock

8

PISTON,0.020",O.S.

13029-077

—
Out of stock

8

PISTON,0.040",O.S.

13027-069

—
Out of stock

9

RING-SNAP

92036-005

1
Out of stock

10

PIN-PISTON

13002-032

1
Out of stock

11

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

11

CONNECTING ROD ASSY

13251-1003-HH

1
Out of stock

11

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

11

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

11

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

11

CONNECTING ROD ASSY,J

13251-1007-JJ

1
Out of stock

12

BOLT,CONNECTING ROD

92001-175

1
Out of stock

12

BOLT,CONNECTING ROD,7MM

92001-1793

1
Out of stock

13

NUT,7MM

92016-060

1
Out of stock

14

METAL,CONNECT ROD BRG

13034-050

1
Out of stock

14

METAL,CONNECT ROD BRG

13034-051

1
Out of stock

14

METAL,CONNECT ROD BRG

13034-052

1
Out of stock

15

BUSHING,CRANKSHAFT,BROWN

92028-1102

1
Out of stock

16

CRANKSHAFT ASSY

13037-069

1
Out of stock

17

OIL SEAL,HSCY22397

92050-080

1
Out of stock

18

SEAL-OIL,HSCY25397

92050-081

1
Out of stock

19

SCREW,SLOTTED,6X8

291H0608

1
Out of stock
