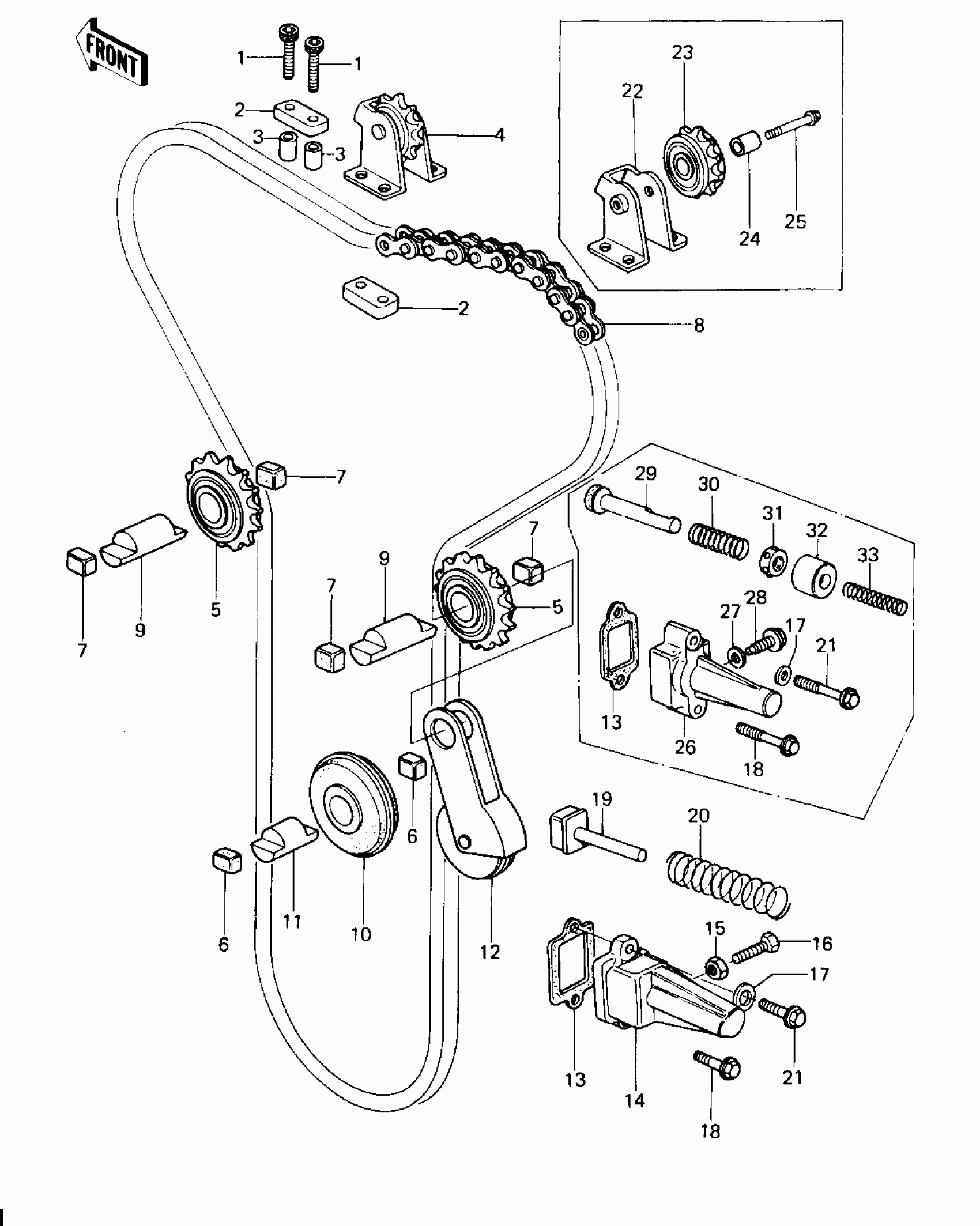

Kawasaki Custom CAM CHAIN/TENSIONER Diagram

#

Description
Price

1

BOLT,ALLEN,6X32

120Q0632

Unavailable

2

DAMPER RUBBER

92075-289

Unavailable

3

COLLAR,6.2X8.1X15

92027-1079

$3.03

4

IDLER ASSY,CAM CHAIN

12053-1013

Unavailable

5

IDLER ASSY,CAM CHAIN

12053-1012

Unavailable

6

DAMPER RUBBER

92075-123

$7.25

7

DAMPER,IDLER SHAFT

92075-232

$4.33

8

CHAIN,CAM

21070-012

$321.25

9

SHAFT-IDLER,GUIDE ROLLAR

12052-005

$29.55

10

ROLLER,CAM CHN GUIDE

12055-004

Unavailable

11

SHAFT-IDLER,CAM CHAIN GUIDE

12052-003

$11.22

12

TENSIONER,CAM CHAIN

12048-015

Unavailable

13

GASKET,TENSIONER

11009-1980

$4.18

14

HOLDER,TENSIONER

12049-1003

Unavailable

15

NUT 6MM

311B0600

Unavailable

16

BOLT,TENSIONER ADJUS

92003-093

Unavailable

17

WASHER OIL PUMP BANJO

92022-077

$2.84

18

BOLT-FLANGED,6X30

130G0630

Unavailable

19

PUSH ROD,CAM CHAIN

12054-001

Unavailable

20

SPRING,TENSTIONER

92081-107

$15.78

21

BOLT,FLANGED,6X35

130H0635

Unavailable

22

IDLER ASSY,CAM CHAIN

12053-1013

Unavailable

23

IDLER ASSY,CAM CHAIN

12053-1012

Unavailable

24

COLLAR,IDLER

92027-261

Unavailable

25

BOLT,FLANGED,6X25

130G0625

Unavailable

26

TENSIONER KIT

99996-1021

Unavailable

27

WASHER OIL PUMP BANJO

92022-077

$2.84

28

BOLT,TENSIONER ADJUST

92001-1155

$4.68

29

ROD ASSY,PUSH

13116-1008

Unavailable

30

SPRING,TENSIONER

92081-1068

Unavailable

31

RETAINER,TENSIONER

14020-1002

$16.44

32

COLLAR, TENSIONER

92027-1102

$41.67

33

SPRING

92081-146

Unavailable
