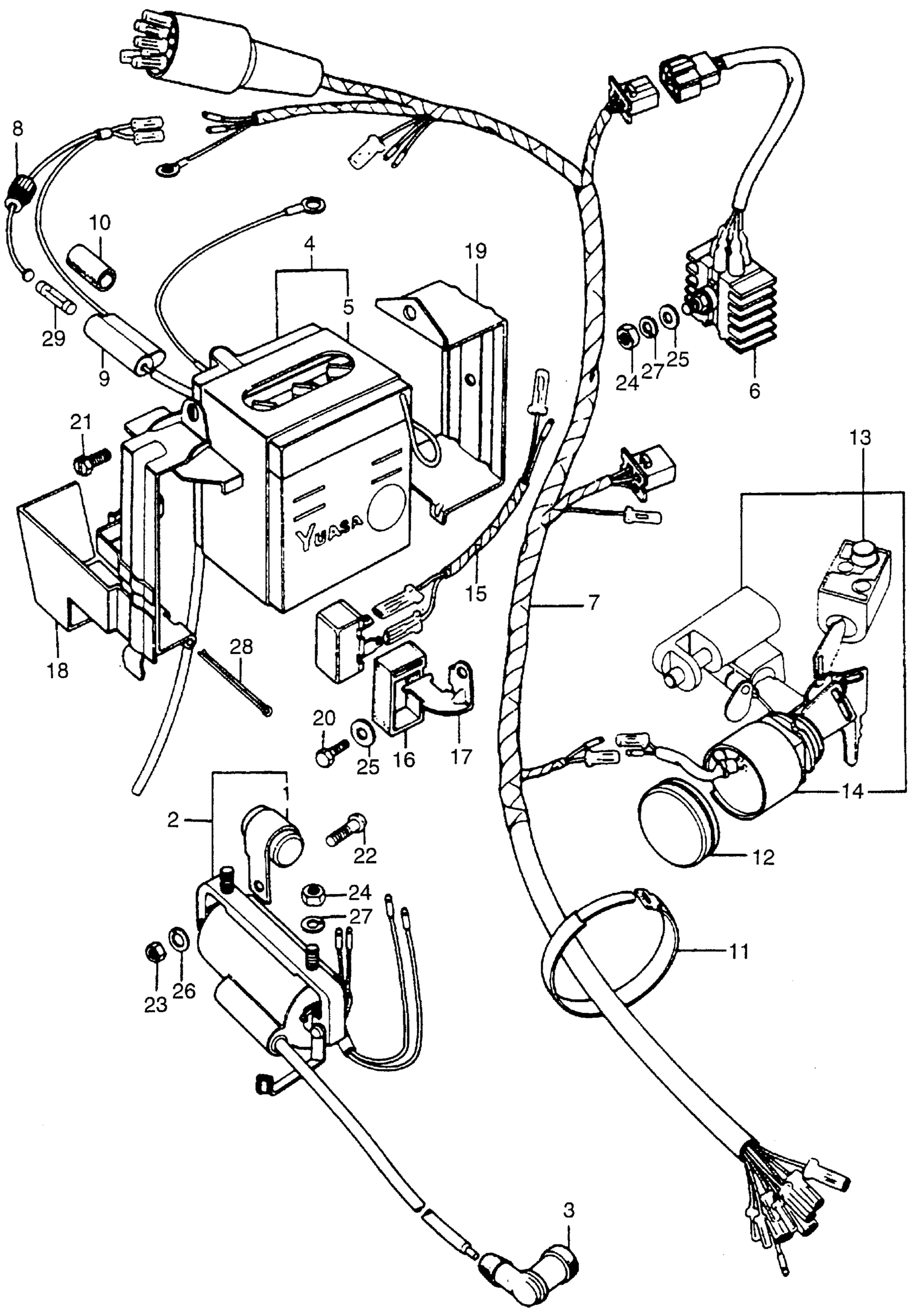

Honda CT90K5A MOTORCYCLE, JPN, VIN# CT90-1500001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

CONDENSER

30250-052-000

$23.28

2

COIL, IGNITION This part replaces 30400-046-000.

30530-102-780

Unavailable

2

COIL, IGNITION This part replaces 30400-046-156.

30530-102-780

Unavailable

2

COIL, IGNITION

30530-102-780

Unavailable

3

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

3

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

3

CAP ASSY. This part replaces 30700-259-600.

30700-MG7-003

$14.30

4

BATTERY (6V-5.5A) This part replaces 31500-102-701.

31500-102-772AH

Unavailable

4

BATTERY (6V-5.5A) This part replaces 31500-102-772.

31500-102-772AH

Unavailable

4

BATTERY (6V-5.5A) This part replaces 31500-128-671.

31500-102-772AH

Unavailable

5

RUBBER, BATTERY MOUNT (NOT AVAILABLE)

31510-046-000

Unavailable

6

RECTIFIER ASSY.

31700-102-731

Unavailable

7

WIRE HARNESS (NOT AVAILABLE)

32100-102-730

Unavailable

8

CONNECTOR A, FUSE (NOT AVAILABLE)

32106-046-000

Unavailable

9

CONNECTOR B, FUSE (YUASA) This part replaces 32112-041-000.

32112-041-008

Unavailable

9

CONNECTOR B, FUSE (YUASA)

32112-041-008

Unavailable

10

COVER, CONNECTOR (NOT AVAILABLE)

32112-102-730

Unavailable

11

BAND A3, WIRE This part replaces 32161-001-000.

95014-61300

$1.97

11

BAND A3, CABLE

95014-61300

$1.97

12

GROMMET, MAIN SWITCH (NOT AVAILABLE)

32983-076-000

Unavailable

13

LOCK SET (NOT AVAILABLE)

35010-102-730

Unavailable

13

LOCK SET (NOT AVAILABLE) This part replaces 35030-102-701.

35010-102-730

Unavailable

14

LOCK SET (NOT AVAILABLE)

35010-102-730

Unavailable

14

LOCK SET (NOT AVAILABLE) This part replaces 35030-102-701.

35010-102-730

Unavailable

14

LOCK SET (NOT AVAILABLE) This part replaces 35100-102-701.

35010-102-730

Unavailable

15

SUB-WIRE, TURN SIGNAL RELAY (NOT AVAILABLE)

38303-107-670

Unavailable

16

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-092-670

Unavailable

17

STAY, TURN SIGNAL RELAY (NOT AVAILABLE)

38307-102-730

Unavailable

18

BAND, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

50373-077-000B

Unavailable

19

PLATE, BATTERY SUPPORT *NH1* (BLACK) (NOT AVAILABLE)

50381-046-000B

Unavailable

20

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

21

BOLT, RECESSED (6X12) This part replaces 92300-06012.

92301-06012-0A

$1.49

21

BOLT, RECESSED (6X12) This part replaces 92300-06012-0A.

92301-06012-0A

$1.49

21

BOLT, RECESSED (6X12)

92301-06012-0A

$1.49

22

SCREW, PAN (5X20)

93500-05020-0A

$1.49

23

NUT, HEX. (5MM)

94001-05000-0S

$2.74

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, SPRING (5MM)

94111-05000

$1.49

27

WASHER, SPRING (6MM)

94111-06000

$1.49

28

PIN, COTTER (3.0X45)

94201-30450

$1.49

29

FUSE A (15A)

98200-11500

$1.49
