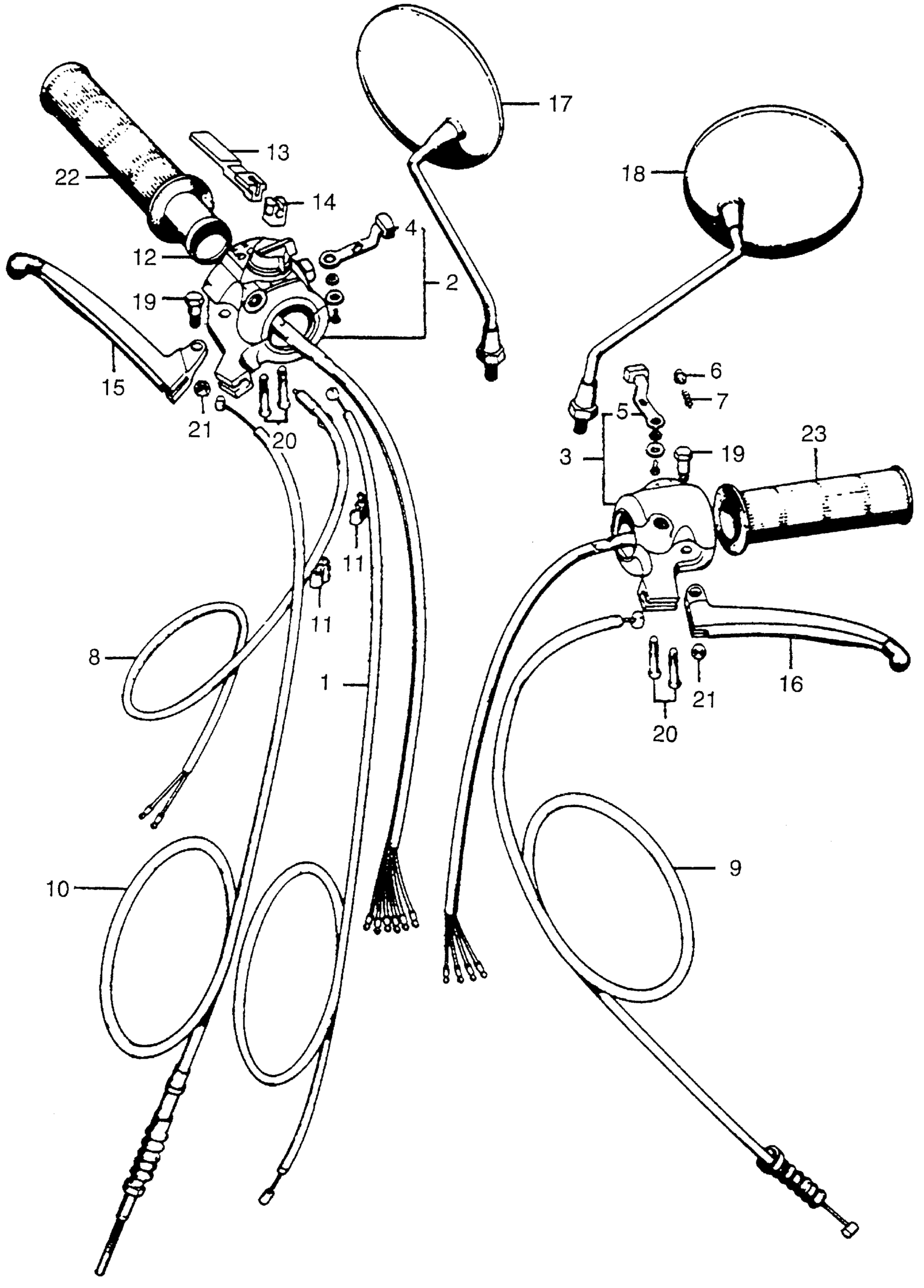

Honda CT90K5A MOTORCYCLE, JPN, VIN# CT90-1500001 TURN SIGNAL + LEVER + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-102-700

Unavailable

2

SWITCH ASSY., LIGHTING STOP (NOT AVAILABLE)

35250-102-731

Unavailable

3

SWITCH ASSY., TURN SIGNAL & HORN (NOT AVAILABLE)

35300-102-000

Unavailable

4

KNOB, LIGHTING SWITCH (NOT AVAILABLE)

35315-230-000

Unavailable

5

KNOB, TURN SIGNAL SWITCH (NOT AVAILABLE)

35316-230-000

Unavailable

6

BUTTON, HORN SWITCH PUSH

35317-001-310

$4.62

7

SPRING, BUTTON

35318-259-000

$5.33

8

SWITCH ASSY., FR. STOP This part replaces 35340-102-003.

35340-GAN-620

$19.20

8

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$19.20

8

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$19.20

8

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$19.20

8

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

9

CABLE, RR. BRAKE (NOT AVAILABLE)

43460-053-000

Unavailable

9

CABLE, RR. BRAKE (NOT AVAILABLE) This part replaces 43460-102-000.

43460-053-000

Unavailable

10

CABLE, FR. BRAKE

45450-102-010

Unavailable

11

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

12

PIPE, THROTTLE GRIP

53141-115-000

Unavailable

13

HINGE, THROTTLE WIRE

53161-250-000

Unavailable

14

HOLDER, THROTTLE CABLE (OUTER) (NOT AVAILABLE) This part replaces 53162-035-000.

53162-042-000

Unavailable

14

HOLDER, THROTTLE CABLE (OUTER) (NOT AVAILABLE)

53162-042-000

Unavailable

15

LEVER, R. HANDLE This part replaces 53175-028-670.

53175-230-010

Unavailable

15

LEVER, R. HANDLE This part replaces 53175-028-671.

53175-230-010

Unavailable

15

LEVER, R. HANDLE This part replaces 53175-028-672.

53175-230-010

Unavailable

15

LEVER, R. HANDLE

53175-230-010

Unavailable

16

LEVER, L. HANDLE This part replaces 53178-035-000.

53178-230-010

Unavailable

16

LEVER, L. HANDLE This part replaces 53178-051-000.

53178-230-010

Unavailable

16

LEVER, L. HANDLE

53178-230-010

Unavailable

17

MIRROR, R.

88110-028-820

$40.97

18

MIRROR, L.

88120-028-670

$49.25

19

SCREW, HANDLEBAR LEVER PIVOT

90114-028-000

$6.95

20

SCREW, PAN (5X24) (SOURCE: VINTAGE PARTS INC.)

93500-05024-0A

Unavailable

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

GRIP C, R. HANDLE

95011-13100

$10.36

23

GRIP C, L. HANDLE

95011-13200

$10.36
