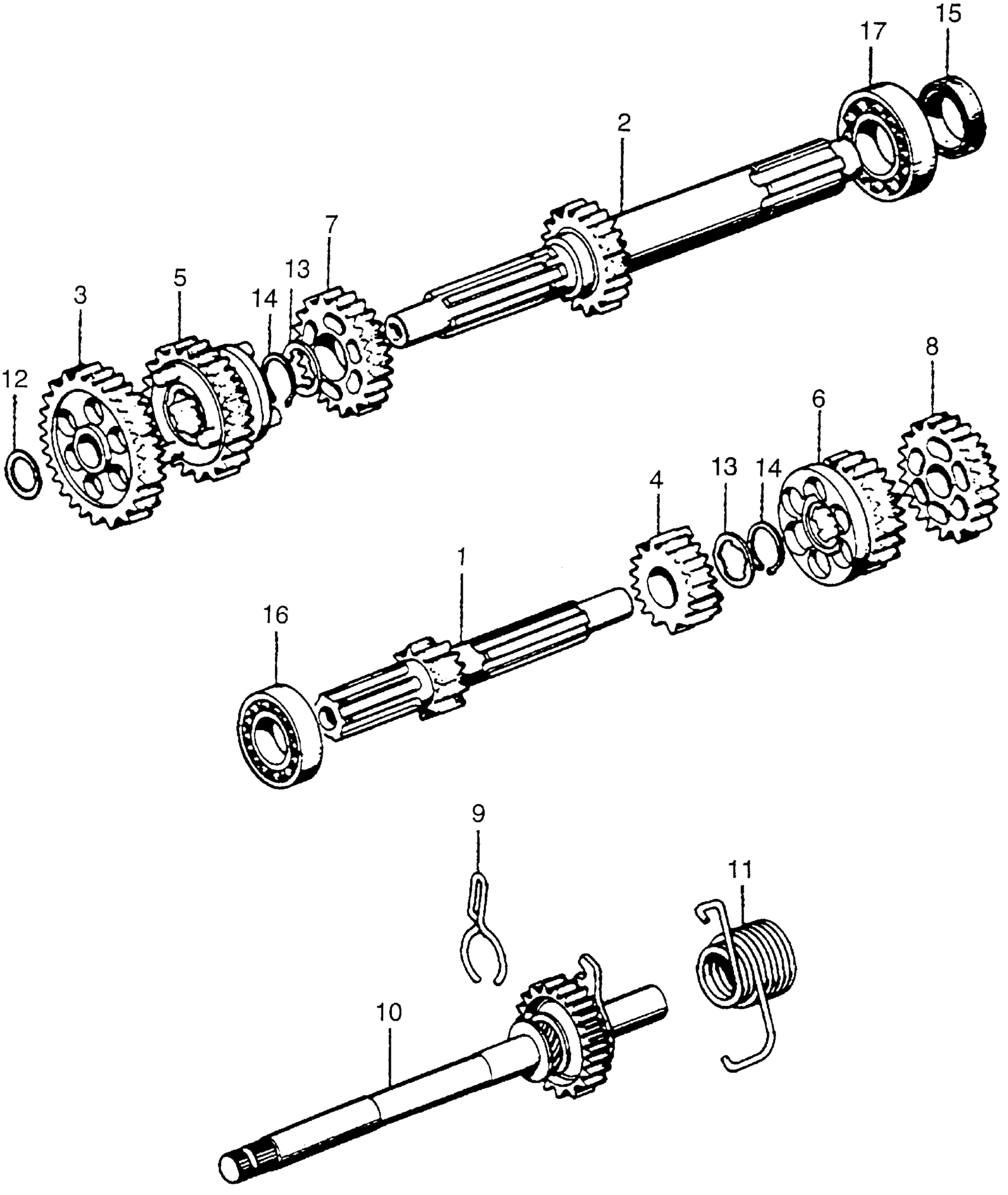

Honda CT90K5A MOTORCYCLE, JPN, VIN# CT90-1500001 TRANSMISSION + KICK STARTER Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T)

23211-028-070

Unavailable

2

COUNTERSHAFT, TRANSMISSION (23T)

23220-053-030

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T)

23421-096-000

Unavailable

4

GEAR, MAINSHAFT SECOND (18T)

23431-052-040

Unavailable

5

GEAR, COUNTERSHAFT SECOND (29T) (NOT AVAILABLE)

23441-052-020

$66.88

6

GEAR, MAINSHAFT THIRD (21T)

23451-052-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T)

23461-052-000

Unavailable

8

GEAR, MAINSHAFT TOP (24T)

23471-052-000

Unavailable

9

SPRING, KICK STARTER RATCHET

28223-035-035

Unavailable

10

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-028-010

Unavailable

11

SPRING, KICK STARTER (NOT AVAILABLE)

28261-028-010

Unavailable

12

WASHER, THRUST (14MM)

90451-001-000

$3.67

13

WASHER, SPLINE (18MM)

90461-028-000

Unavailable

14

CIRCLIP (18MM)

90601-030-000

$1.77

15

OIL SEAL (27X37X7) This part replaces 91201-053-000.

91205-943-003

$11.58

15

OIL SEAL (27X37X7) This part replaces 91201-053-005.

91205-943-003

$11.58

15

OIL SEAL (27X37X7)

91205-943-003

$11.58

16

BEARING, RADIAL BALL (6004) This part replaces 96100-60040.

96100-60040-00

$15.58

16

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

17

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

17

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
