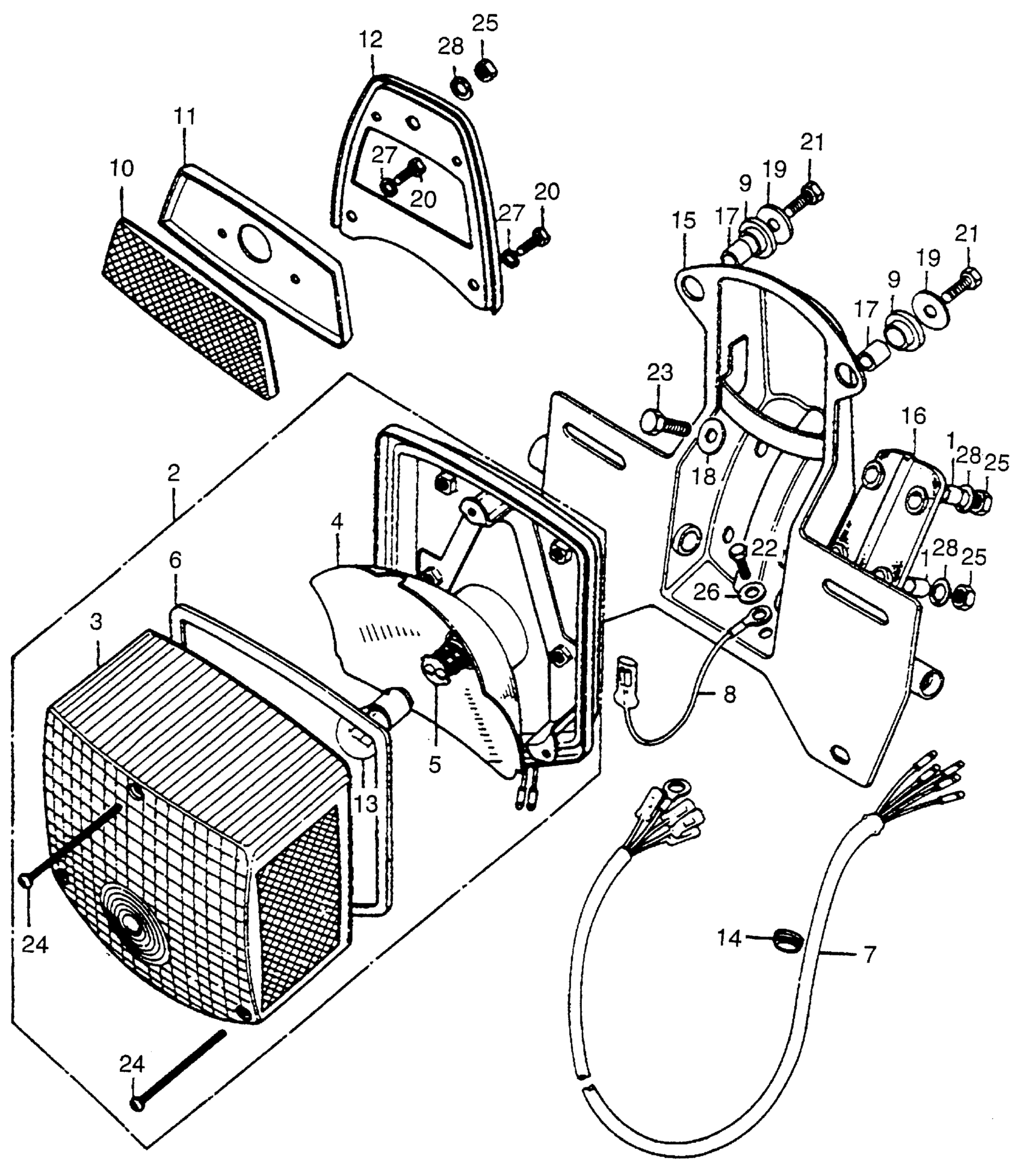

Honda CT90K5A MOTORCYCLE, JPN, VIN# CT90-1500001 TAILLIGHT Diagram

#

Description
Price

1

COLLAR, AIR CLEANER HOUSING MOUNT (NOT AVAILABLE)

17220-300-010

Unavailable

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-102-731

Unavailable

3

LENS, TAILLIGHT This part replaces 33702-092-671.

33702-329-671

Unavailable

3

LENS, TAILLIGHT

33702-329-671

Unavailable

4

BASE, TAILLIGHT (NOT AVAILABLE)

33703-092-671

Unavailable

5

WIRE, TAILLIGHT

33708-098-000

Unavailable

5

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

6

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

7

SUB-WIRE, TAILLIGHT

33711-102-730

Unavailable

8

WIRE, STOP & TAILLIGHT GROUND (NOT AVAILABLE) This part replaces 33712-098-931.

33712-098-970

Unavailable

9

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

10

LENS, REFLEX REFLECTOR (NOT AVAILABLE)

33746-092-671

Unavailable

11

BASE, REFLEX REFLECTOR (NOT AVAILABLE)

33747-092-671

Unavailable

12

STAY, BACK REFLECTOR

33749-092-670

Unavailable

13

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

14

GROMMET B, METER CASE

66219-634-000

Unavailable

15

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84700-102-730

Unavailable

16

RUBBER, NUMBER PLATE BRACKET (NOT AVAILABLE)

84703-102-730

Unavailable

17

COLLAR, LICENSE PLATE BRACKET

84706-341-000

$3.01

18

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

19

WASHER (20MM)

90581-310-000

$1.90

20

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

20

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

20

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

21

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

21

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

21

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

23

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

24

SCREW, PAN (4X55)

93500-04055-0B

$1.49

25

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, SPRING (5MM)

94111-05000

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49
