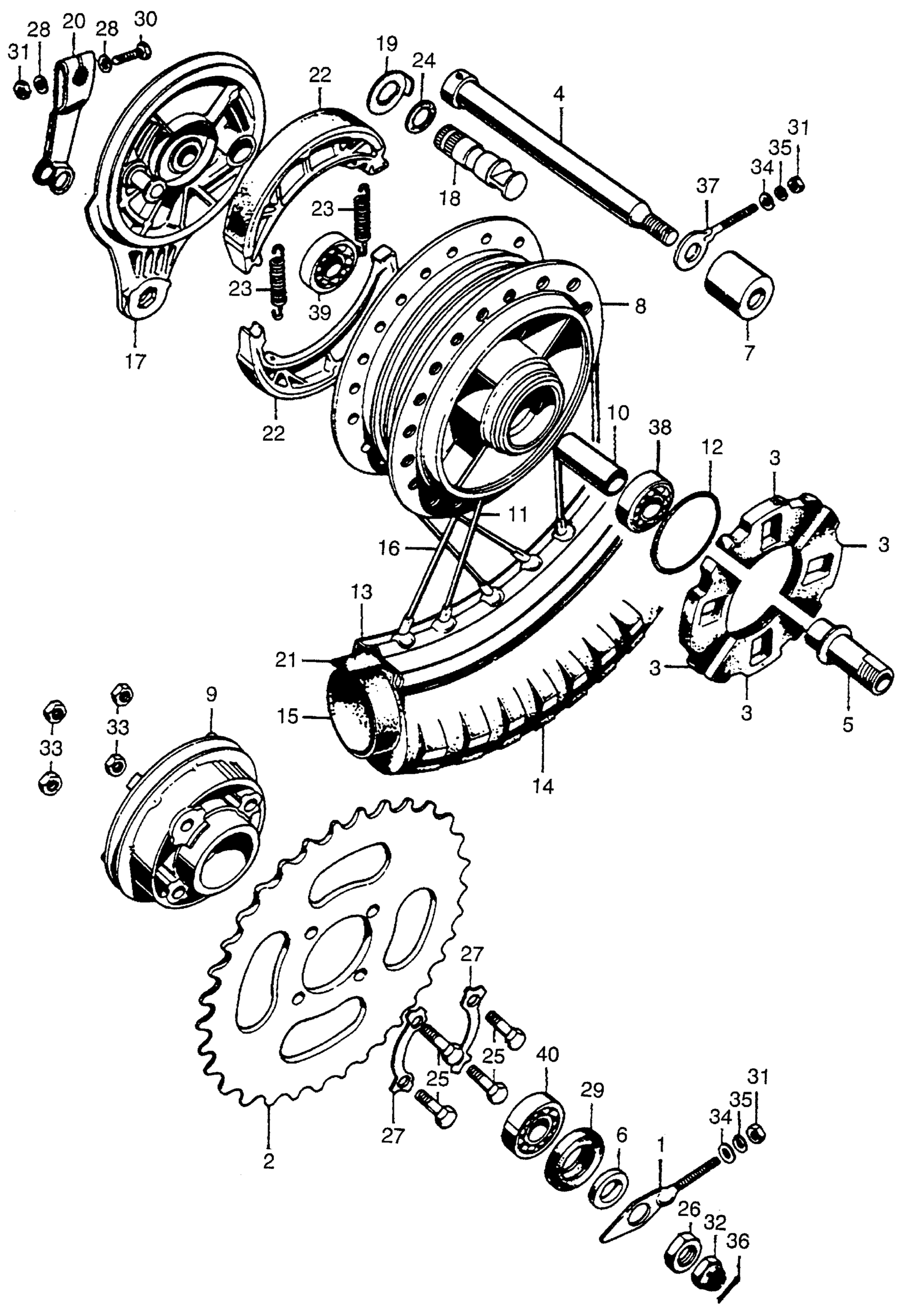

Honda CT90K5A MOTORCYCLE, JPN, VIN# CT90-1500001 REAR WHEEL + BRAKE PANEL Diagram

#

Description
Price

1

ADJUSTER, L. CHAIN This part replaces 40544-001-000.

95014-10020

$5.54

1

ADJUSTER, L. CHAIN

95014-10020

$5.54

2

SPROCKET A (45T) This part replaces 41201-053-020.

41201-053-505

Unavailable

3

DAMPER, RR. WHEEL

41241-033-010

$11.64

4

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-102-000

Unavailable

5

SLEEVE, RR. WHEEL AXLE

42303-033-000

Unavailable

6

COLLAR, RR. WHEEL AXLE SLEEVE (NOT AVAILABLE)

42304-033-000

Unavailable

7

COLLAR, RR. BRAKE PANEL SIDE

42313-GBJ-000

Unavailable

7

COLLAR, RR. BRAKE PANEL SIDE This part replaces 42313-041-000.

42313-GBJ-000

Unavailable

8

HUB, RR. WHEEL | Use up to Frame SN 1520001

42601-102-670

Unavailable

8

HUB, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN 1520002

42601-121-690

Unavailable

9

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-053-010

Unavailable

10

COLLAR, RR. AXLE DISTANCE | Use up to Frame SN 1520001

42620-001-010

Unavailable

10

COLLAR, RR. AXLE DISTANCE | Use from Frame SN 1520002

42620-121-000

Unavailable

11

SPOKE B, RR.

42638-001-020

$4.66

12

O-RING (40.5X3) (NIPPON DUST KEEPER) This part replaces 42653-001-000.

42653-001-004

$2.39

12

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.39

13

RIM, RR. WHEEL This part replaces 42701-077-000.

42701-102-794

$77.20

13

RIM, RR. WHEEL This part replaces 42701-102-791.

42701-102-794

$77.20

14

TIRE, RR. (2.75-17) This part replaces 42711-102-006.

42711-102-764

Unavailable

14

TIRE, RR. (2.75-17) This part replaces 42711-102-009.

42711-102-764

Unavailable

14

TIRE, RR. (2.75-17) This part replaces 42711-102-019.

42711-102-764

Unavailable

14

TIRE, RR. (2.75-17) This part replaces 42711-102-762.

42711-102-764

Unavailable

14

TIRE, RR. (2.75-17) This part replaces 42711-102-763.

42711-102-764

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 0Y400-03310.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 08400-03310.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-033-000.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-102-009.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE)

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-303-003.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-GC4-671.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-169-701.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-244-000.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-303-003.

42712-102-761

Unavailable

16

SPOKE B (10X161.5) (OUTSIDE) This part replaces 42721-001-030.

97251-42163-13

$3.77

16

SPOKE B (10X161.5) (OUTSIDE)

97251-42163-13

$3.77

17

PANEL, RR. BRAKE | Use up to Frame SN 1520001 This part replaces 43100-028-020.

43100-098-950

Unavailable

17

PANEL, RR. BRAKE | Use up to Frame SN 1520001

43100-098-950

Unavailable

17

PANEL, RR. BRAKE | Use from Frame SN 1520002

43100-102-730

Unavailable

18

CAM, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1520001

43141-028-010

Unavailable

18

CAM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1520002

43141-365-670

Unavailable

19

INDICATOR, RR. BRAKE | Use from Frame SN 1520002

43145-324-700

Unavailable

20

ARM, RR. BRAKE | Use up to Frame SN 1520001

43410-041-020

Unavailable

20

ARM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1520002

43410-102-730

Unavailable

21

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

21

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

22

SHOE SET, BRAKE (ASK) | Use from Frame SN 1520002 This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

22

SHOE SET, BRAKE (ASK) | Use from Frame SN 1520002 This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

22

SHOE, BRAKE (N/A: USE P/N 451A0-001-670) | Use up to Frame SN 1520001

45120-001-010

Unavailable

23

SPRING, BRAKE SHOE | Use from Frame SN 1520002

43151-110-000

$2.92

23

SPRING, BRAKE SHOE | Use up to Frame SN 1520001

45133-028-000

$2.03

24

DUST SEAL, BRAKE CAM | Use from Frame SN 1520002

45134-250-000

$2.92

25

BOLT, SPROCKET

90128-001-030

Unavailable

26

NUT, RR. AXLE SLEEVE

90307-001-000

Unavailable

27

WASHER, TONGUED (8MM) (NOT AVAILABLE)

90522-033-000

Unavailable

28

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

29

OIL SEAL (25X47X6.5) This part replaces 91253-033-000.

91253-033-003

$5.94

29

OIL SEAL (25X47X6.5)

91253-033-003

$5.94

30

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

30

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

30

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

31

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

32

NUT, CASTLE (12MM)

94011-12000-0S

$1.54

33

NUT, HEX. (8MM)

94030-08000

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

34

WASHER, PLAIN (6MM)

94101-06800

$1.49

35

WASHER, SPRING (6MM)

94111-06000

$1.49

36

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

36

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

36

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

36

PIN, COTTER (3.0X45)

94201-30450

$1.49

37

ADJUSTER A, R. CHAIN

95014-10100

$5.54

38

BEARING, RADIAL BALL (6301U) This part replaces 96100-63010.

96140-63010-10

$14.84

38

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

38

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

39

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

39

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

40

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030.

96140-63030-10

$14.48

40

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030-00.

96140-63030-10

$14.48

40

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48
