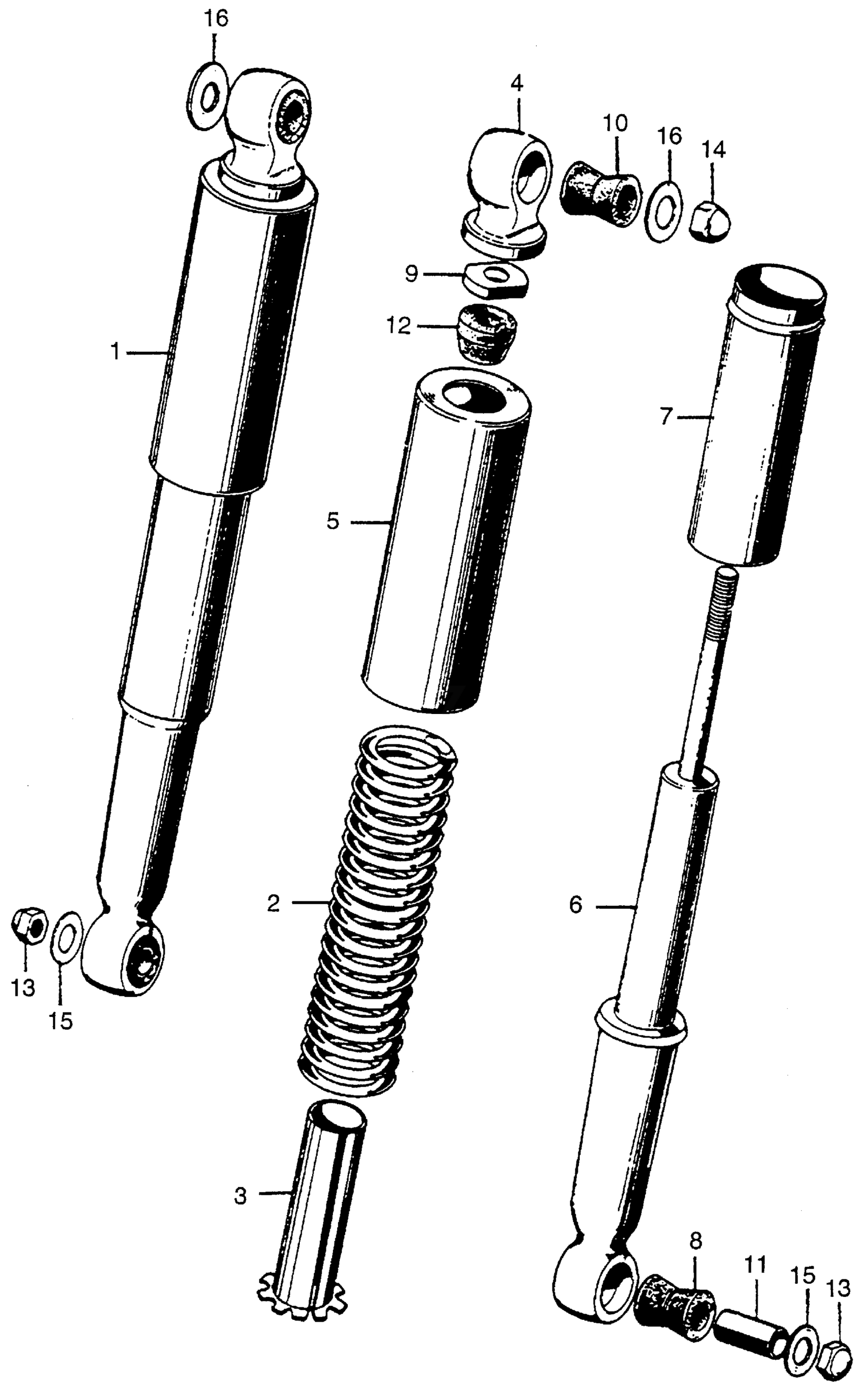

Honda CT90K5A MOTORCYCLE, JPN, VIN# CT90-1500001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. *YR6* (MARS ORANGE) (NOT AVAILABLE)

52400-077-000JL

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-077-000

Unavailable

3

GUIDE, RR. SHOCK ABSORBER SPRING

52409-011-000

Unavailable

4

METAL, RR. SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52410-033-000

Unavailable

5

CASE, RR. SHOCK ABSORBER (UPPER) *YR6* (MARS ORANGE) (NOT AVAILABLE)

52410-034-000JL

Unavailable

6

DAMPER, RR. (NOT AVAILABLE)

52450-077-000

Unavailable

7

CASE, RR. SHOCK ABSORBER (LOWER)

52465-051-000

Unavailable

8

BUSH, RR. SHOCK ABSORBER RUBBER

52476-001-020

$4.92

9

NUT, RR. SHOCK ABSORBER LOCK (UPPER) (NOT AVAILABLE)

52481-033-000

Unavailable

10

BUSH, SHOCK RUBBER This part replaces 52485-001-010.

52495-098-000

Unavailable

10

BUSH, SHOCK RUBBER

52495-098-000

Unavailable

11

COLLAR, SWINGARM RUBBER BUSH

52486-001-000

$4.85

12

RUBBER, RR. SHOCK ABSORBER STOPPER (NOT AVAILABLE)

52489-033-000

Unavailable

13

NUT, CAP (10MM)

94021-10020-0S

$2.08

14

NUT, CAP (12MM)

94021-12020-0S

Unavailable

15

WASHER, PLAIN (10MM)

94101-10000

$1.49

16

WASHER, PLAIN (12MM)

94101-12000

$1.49
