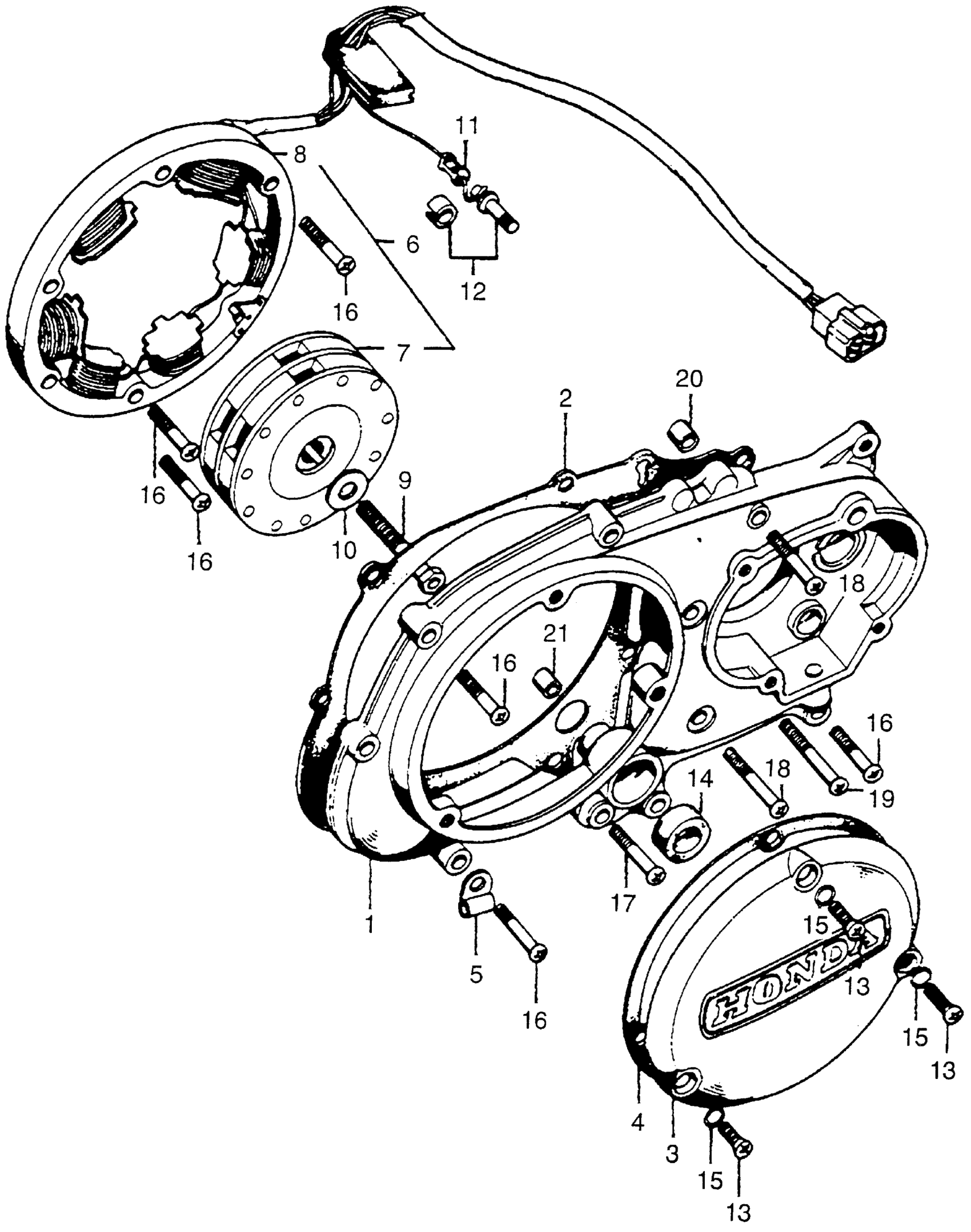

Honda CT90K5A MOTORCYCLE, JPN, VIN# CT90-1500001 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-053-050

Unavailable

2

GASKET, L. CRANKCASE COVER This part replaces 11395-053-010.

11395-053-306

Unavailable

2

GASKET, L. CRANKCASE COVER

11395-053-306

Unavailable

3

COVER, ALTERNATOR (NOT AVAILABLE)

11431-128-000

Unavailable

4

GASKET, ALTERNATOR COVER This part replaces 11691-028-000.

11691-028-306

Unavailable

4

GASKET, ALTERNATOR COVER

11691-028-306

Unavailable

5

CLAMP, OVERFLOW TUBE

16236-045-000

Unavailable

5

CLAMP, OVERFLOW TUBE This part replaces 16245-028-000.

16236-045-000

Unavailable

6

ALTERNATOR ASSY. This part replaces 31100-102-720.

31100-102-721

Unavailable

7

ROTOR (DENSO) (NOT AVAILABLE)

31101-053-004

Unavailable

8

STATOR (NOT AVAILABLE) This part replaces 31102-102-720.

31102-102-721

Unavailable

8

STATOR (NOT AVAILABLE)

31102-102-721

Unavailable

9

BOLT, ALTERNATOR ROTOR MOUNT (DENSO)

31104-128-004

Unavailable

10

WASHER, ALTERNATOR ROTOR MOUNT (DENSO) (NOT AVAILABLE)

31105-128-004

Unavailable

11

GROMMET, NEUTRAL SWITCH WIRE (NOT AVAILABLE)

32981-121-003

Unavailable

12

CONTACT ASSY., NEUTRAL SWITCH

35750-028-000

Unavailable

13

SCREW, OVAL (6X18) (NOT AVAILABLE) This part replaces 90141-028-000.

93700-06018-02

Unavailable

13

SCREW, OVAL (6X18) (NOT AVAILABLE) This part replaces 93700-06018-0B.

93700-06018-02

Unavailable

14

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

14

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

14

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

14

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

14

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

15

O-RING (5.5X1.5)

91301-216-000

$2.38

16

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

17

SCREW, PAN (6X35)

93500-06035-0A

$1.49

17

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

18

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

18

SCREW, PAN (6X40)

93500-06040-0A

$1.49

19

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

19

SCREW, PAN (6X45)

93500-06045-0A

$1.49

20

PIN A, DOWEL (8X12)

94301-08120

$2.19

21

PIN A, DOWEL (10X14)

94301-10140

$2.28
