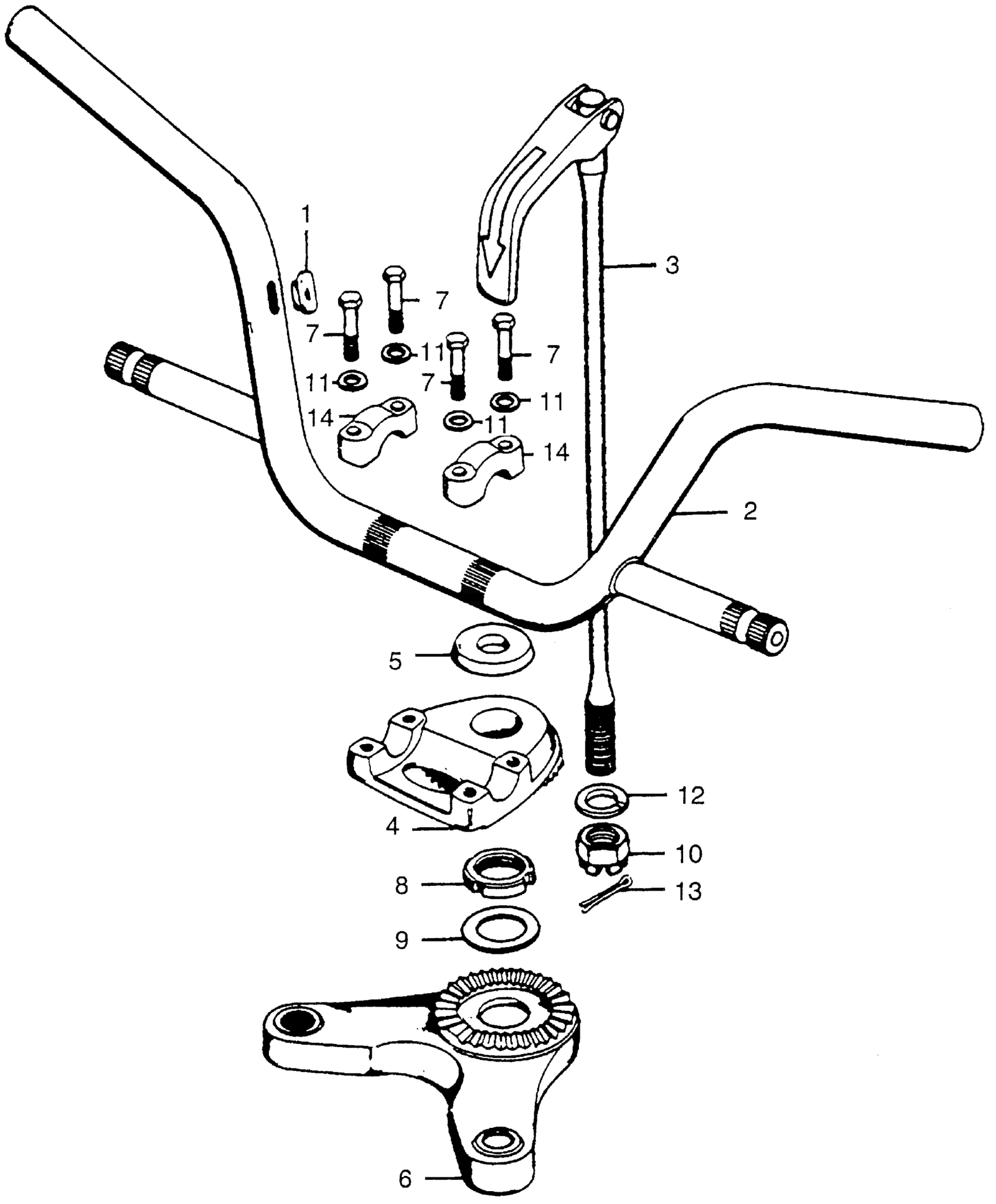

Honda CT90K5A MOTORCYCLE, JPN, VIN# CT90-1500001 HANDLEBAR Diagram

#

Description
Price

1

GROMMET, THROTTLE CABLE | Use up to Frame SN 1520001

17911-023-000

$4.12

2

HANDLEBAR (NOT AVAILABLE) | Use up to Frame SN 1520001

53100-102-730

Unavailable

2

HANDLEBAR (NOT AVAILABLE) | Use from Frame SN 1520002

53100-102-731

Unavailable

3

LEVER, HANDLEBAR CLAMP (NOT AVAILABLE)

53130-102-700

Unavailable

4

HOLDER, HANDLEBAR (LOWER) (NOT AVAILABLE)

53132-102-000

Unavailable

5

WASHER, HANDLEBAR CLAMP LEVER (NOT AVAILABLE)

53133-102-000

Unavailable

6

PLATE, FORK TOP BRIDGE

53231-102-000

Unavailable

7

BOLT, HEX. (6X28)

90117-065-000

$2.62

8

NUT C, STEERING STEM This part replaces 90304-030-000.

95020-13100

Unavailable

8

NUT C, STEERING STEM

95020-13100

Unavailable

9

WASHER, STEERING STEM This part replaces 90503-011-000.

90503-051-870

$2.84

9

WASHER, STEERING STEM

90503-051-870

$2.84

10

NUT, CASTLE (14MM)

94012-14000-0S

Unavailable

11

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

11

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

11

WASHER, PLAIN (6MM)

94101-06800

$1.49

12

WASHER, SPRING (14MM)

94111-14000

Unavailable

13

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

13

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

13

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

13

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

13

PIN, COTTER (3.0X45)

94201-30450

$1.49

14

HOLDER A1, HANDLEBAR (UPPER) This part replaces 95014-21100.

95014-21101

$6.31

14

HOLDER A1, HANDLEBAR (UPPER)

95014-21101

$6.31
