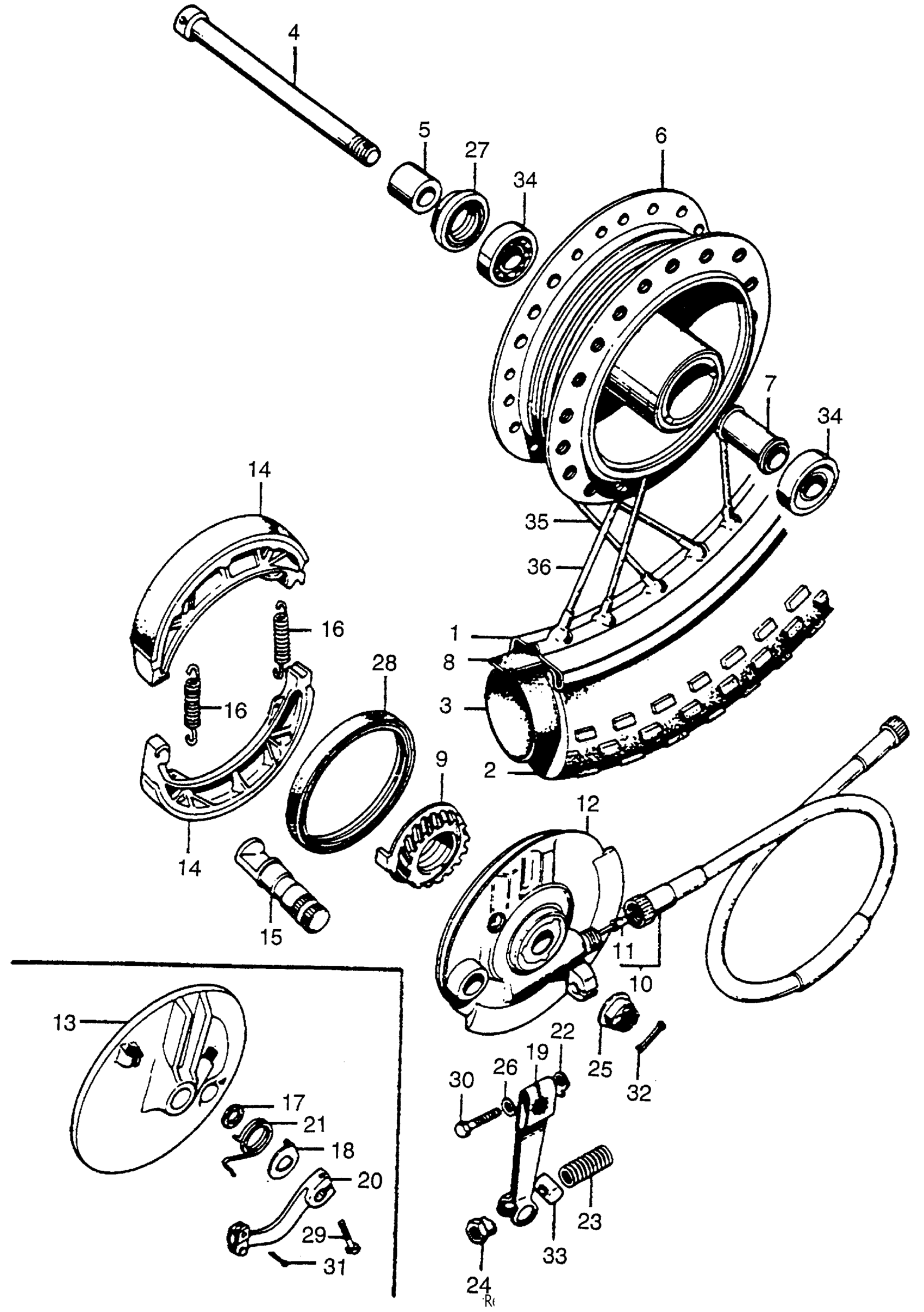

Honda CT90K5A MOTORCYCLE, JPN, VIN# CT90-1500001 FRONT WHEEL + BRAKE PANEL Diagram

#

Description
Price

1

RIM, RR. WHEEL This part replaces 42701-030-003.

42701-102-794

$77.20

1

RIM, RR. WHEEL This part replaces 42701-030-006.

42701-102-794

$77.20

1

RIM, RR. WHEEL This part replaces 42701-102-791.

42701-102-794

$77.20

1

RIM, RR. WHEEL This part replaces 44701-030-000.

42701-102-794

$77.20

1

RIM, RR. WHEEL This part replaces 44701-030-003.

42701-102-794

$77.20

1

RIM, RR. WHEEL This part replaces 44701-102-791.

42701-102-794

$77.20

2

TIRE, RR. (2.75-17) This part replaces 42711-102-006.

42711-102-764

Unavailable

2

TIRE, RR. (2.75-17) This part replaces 42711-102-009.

42711-102-764

Unavailable

2

TIRE, RR. (2.75-17) This part replaces 42711-102-019.

42711-102-764

Unavailable

2

TIRE, RR. (2.75-17) This part replaces 42711-102-762.

42711-102-764

Unavailable

2

TIRE, RR. (2.75-17) This part replaces 42711-102-763.

42711-102-764

Unavailable

3

TUBE, TIRE (2.75-17) (INOUE) This part replaces 0Y400-03310.

42712-102-761

Unavailable

3

TUBE, TIRE (2.75-17) (INOUE) This part replaces 08400-03310.

42712-102-761

Unavailable

3

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-033-000.

42712-102-761

Unavailable

3

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-102-009.

42712-102-761

Unavailable

3

TUBE, TIRE (2.75-17) (INOUE)

42712-102-761

Unavailable

3

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-303-003.

42712-102-761

Unavailable

3

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-GC4-671.

42712-102-761

Unavailable

3

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-169-701.

42712-102-761

Unavailable

3

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-244-000.

42712-102-761

Unavailable

3

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-303-003.

42712-102-761

Unavailable

4

AXLE, FR. WHEEL

44301-107-000

Unavailable

5

COLLAR, FR. WHEEL SIDE

44311-229-000

$6.58

6

HUB, FR. WHEEL | Use up to Frame SN 1520001 This part replaces 44601-107-770.

44601-397-000

Unavailable

6

HUB, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 1520002

44601-116-670

Unavailable

6

HUB, FR. WHEEL | Use up to Frame SN 1520001

44601-397-000

Unavailable

7

COLLAR, FR. AXLE DISTANCE

44620-030-000

Unavailable

8

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

8

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

9

GEAR, SPEEDOMETER | Use up to Frame SN 1520001

44804-028-000

Unavailable

9

GEAR, SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 1520002

44804-102-731

Unavailable

10

CABLE ASSY., SPEEDOMETER | Use up to Frame SN 1520001

44830-GF4-000

$23.38

10

CABLE ASSY., SPEEDOMETER | Use up to Frame SN 1520001 This part replaces 44830-011-010.

44830-GF4-000

$23.38

10

CABLE ASSY., SPEEDOMETER | Use up to Frame SN 1520001 This part replaces 44830-077-000.

44830-GF4-000

$23.38

10

CABLE, SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 1520002 This part replaces 44830-102-730.

44830-126-940

Unavailable

10

CABLE, SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 1520002 This part replaces 44830-102-770.

44830-126-940

Unavailable

10

CABLE, SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 1520002

44830-126-940

Unavailable

10

CABLE ASSY., SPEEDOMETER | Use up to Frame SN 1520001 This part replaces 44831-011-010.

44830-GF4-000

$23.38

11

CABLE, SPEEDOMETER (INNER) (NOT AVAILABLE) | Use up to Frame SN 1520001 This part replaces 44830-028-000.

44830-303-010

Unavailable

11

CABLE, SPEEDOMETER (INNER) (NOT AVAILABLE) | Use up to Frame SN 1520001 This part replaces 44830-056-000.

44830-303-010

Unavailable

11

CABLE, SPEEDOMETER (INNER) (NOT AVAILABLE) | Use up to Frame SN 1520001

44830-303-010

Unavailable

11

CABLE, SPEEDOMETER (INNER) (NOT AVAILABLE) | Use up to Frame SN 1520001 This part replaces 44831-028-000.

44830-303-010

Unavailable

12

PANEL, FR. BRAKE | Use up to Frame SN 1520001 This part replaces 45010-102-000.

45010-350-000

Unavailable

12

PANEL, FR. BRAKE | Use up to Frame SN 1520001

45010-350-000

Unavailable

13

PANEL, FR. (NOT AVAILABLE) | Use from Frame SN 1520002

45010-102-730

Unavailable

14

SHOE SET, BRAKE (ASK) | Use from Frame SN 1520002 This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

14

SHOE SET, BRAKE (ASK) | Use from Frame SN 1520002 This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

14

SHOE, BRAKE (N/A: USE P/N 451A0-001-670) | Use up to Frame SN 1520001

45120-001-010

Unavailable

15

CAM, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1520001

45131-030-000

Unavailable

15

CAM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1520002

45131-364-670

Unavailable

16

SPRING, BRAKE SHOE | Use from Frame SN 1520002

43151-110-000

$2.92

16

SPRING, BRAKE SHOE | Use up to Frame SN 1520001

45133-028-000

$2.03

17

DUST SEAL (NOT AVAILABLE) | Use from Frame SN 1520002

45134-121-000

Unavailable

18

INDICATOR, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1520002

45145-364-670

Unavailable

19

ARM, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1520001

45410-028-000

Unavailable

20

ARM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1520002 This part replaces 45410-364-671.

45410-116-670

Unavailable

21

SPRING, FR. BRAKE ARM RETURN | Use from Frame SN 1520002

45411-087-820

Unavailable

22

NUT, FR. BRAKE ARM SETTING | Use up to Frame SN 1520001

45436-001-000

$1.80

23

SPRING, FR. BRAKE ARM | Use up to Frame SN 1520001

45437-001-000

$3.50

24

NUT A, BRAKE ROD ADJUSTING | Use up to Frame SN 1520001 This part replaces 45462-028-000.

95015-41000

$1.49

24

NUT A, BRAKE ROD ADJUSTING | Use up to Frame SN 1520001

95015-41000

$1.49

25

NUT, AXLE (12MM) This part replaces 90305-051-000.

90305-169-000

$6.28

25

NUT, AXLE (12MM)

90305-169-000

$6.28

26

WASHER, RR. BRAKE ARM | Use up to Frame SN 1520001

90525-001-000

$1.95

27

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-000.

90755-229-003

$5.05

27

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

27

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

28

OIL SEAL (47X60X7) | Use from Frame SN 1520002

91251-GK4-003

$9.19

28

OIL SEAL (47X58X7) | Use up to Frame SN 1520001 This part replaces 91251-030-000.

91251-030-003

Unavailable

28

OIL SEAL (47X58X7) | Use up to Frame SN 1520001

91251-030-003

Unavailable

28

OIL SEAL (47X60X7) (ARAI) | Use from Frame SN 1520002 This part replaces 91251-121-000.

91251-GK4-003

$9.19

29

BOLT, HEX. (6X20) | Use from Frame SN 1520002 This part replaces 92000-06020.

92101-06020-0A

$1.49

29

BOLT, HEX. (6X20) | Use from Frame SN 1520002

92101-06020-0A

$1.49

30

BOLT, HEX. (6X25) | Use up to Frame SN 1520001 This part replaces 92000-06025.

92101-06025-0A

$1.62

30

BOLT, HEX. (6X25) | Use up to Frame SN 1520001

92101-06025-0A

$1.62

31

PIN, COTTER (1.6X25) | Use from Frame SN 1520002 This part replaces 94201-16150.

94201-16250

$1.49

31

PIN, COTTER (1.6X25) | Use from Frame SN 1520002

94201-16250

$1.49

32

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

32

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

32

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

32

PIN, COTTER (3.0X45)

94201-30450

$1.49

33

JOINT A, BRAKE ARM | Use up to Frame SN 1520001 This part replaces 95015-31000.

95015-31001

$1.53

33

JOINT A, BRAKE ARM | Use up to Frame SN 1520001

95015-31001

$1.53

34

BEARING, RADIAL BALL (6301U) | Use up to Frame SN 1520001 This part replaces 96100-63010.

96140-63010-10

$14.84

34

BEARING, RADIAL BALL (6301U) | Use up to Frame SN 1520001 This part replaces 96140-63010.

96140-63010-10

$14.84

34

BEARING, RADIAL BALL (6301U) | Use up to Frame SN 1520001

96140-63010-10

$14.84

34

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

35

SPOKE A (12X163) | Use up to Frame SN 1520001

97147-21166-10

$1.93

35

SPOKE A (12X163) | Use up to Frame SN 1520001 This part replaces 97147-21166-12.

97147-21166-10

$1.93

35

SPOKE A (12X162) | Use from Frame SN 1520002

97351-21164-10

$3.21

36

SPOKE A (12X161.5) | Use from Frame SN 1520002 This part replaces 97145-21163-10.

97145-21163-12

Unavailable

36

SPOKE A (12X161.5) | Use from Frame SN 1520002

97145-21163-12

Unavailable

36

SPOKE A (12X162) | Use up to Frame SN 1520001

97351-21164-10

$3.21

36

SPOKE A (12X162) | Use up to Frame SN 1520001 This part replaces 97351-21164-12.

97351-21164-10

$3.21
