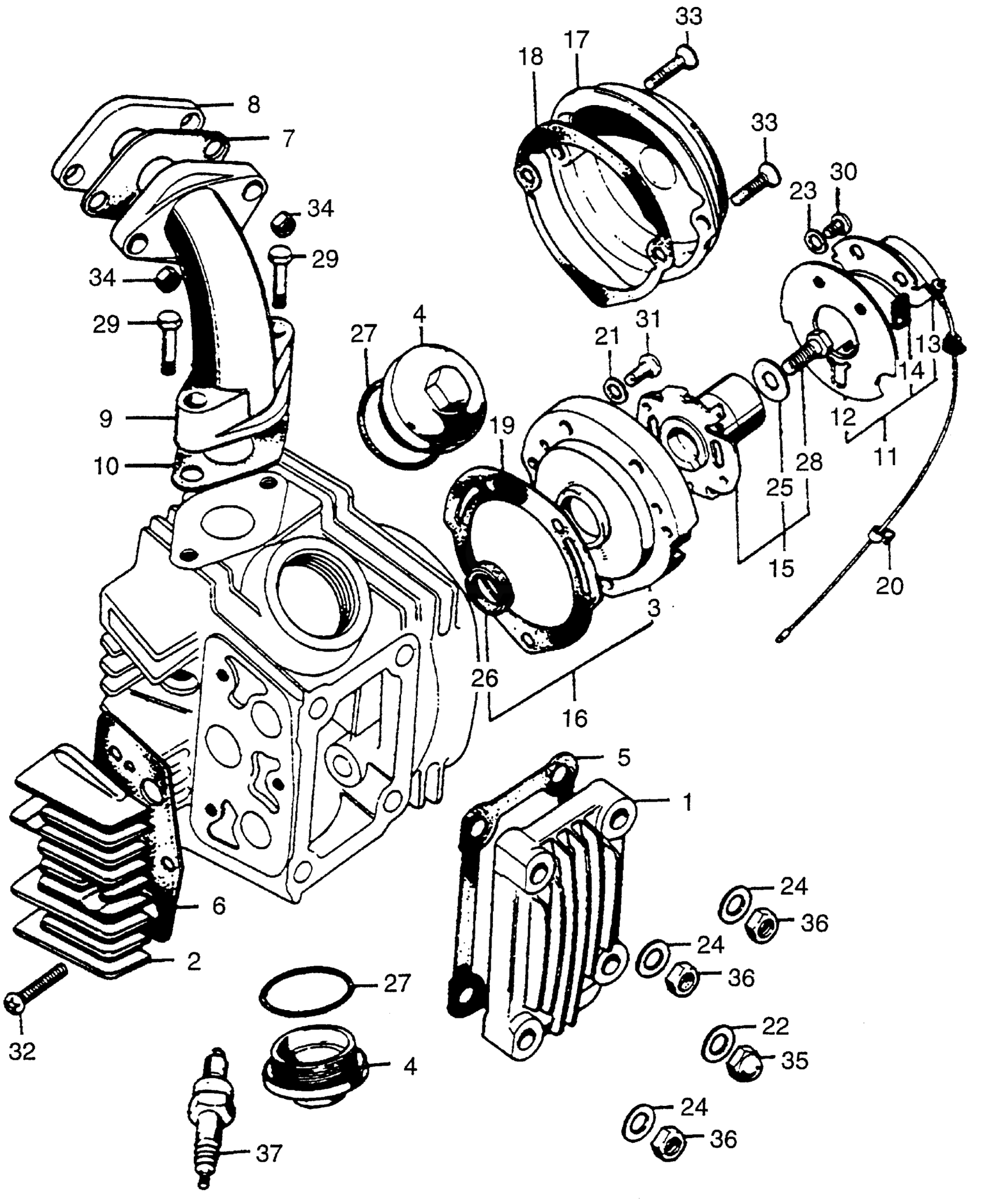

Honda CT90K5A MOTORCYCLE, JPN, VIN# CT90-1500001 CYLINDER HEAD COVER + POINTS Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12301-028-010

Unavailable

2

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-028-000.

12331-028-020

Unavailable

2

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-028-010.

12331-028-020

Unavailable

2

COVER, VALVE ROCKER ARM SIDE

12331-028-020

Unavailable

2

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-128-000.

12331-028-020

Unavailable

3

BASE, POINTS (NOT AVAILABLE) This part replaces 12332-028-030.

12332-028-040

Unavailable

4

CAP, VALVE ADJ.

12361-028-000

$7.89

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-028-000.

12391-121-630

Unavailable

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-028-306.

12391-121-630

Unavailable

5

GASKET, CYLINDER HEAD COVER

12391-121-630

Unavailable

6

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-028-010.

12394-121-630

Unavailable

6

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-028-020.

12394-121-630

Unavailable

6

GASKET, R. CYLINDER HEAD SIDE COVER

12394-121-630

Unavailable

7

GASKET, CARBURETOR This part replaces 16201-077-010.

16201-077-306

Unavailable

7

GASKET, CARBURETOR

16201-077-306

Unavailable

8

INSULATOR, CARB This part replaces 16211-077-010.

16211-077-306

Unavailable

9

PIPE, INLET (NOT AVAILABLE)

17111-102-700

Unavailable

10

GASKET, IN. PIPE This part replaces 17119-046-000.

17119-046-306

$4.69

10

GASKET, IN. PIPE

17119-046-306

$4.69

11

POINTS ASSY. (DENSO) This part replaces 30200-028-003.

30200-107-014

$52.25

11

POINTS ASSY. (DENSO) This part replaces 30200-028-004.

30200-107-014

$52.25

11

POINTS ASSY. (DENSO) This part replaces 30200-028-005.

30200-107-014

$52.25

11

POINTS ASSY. (DENSO) This part replaces 30200-028-013.

30200-107-014

$52.25

11

POINTS ASSY. (DENSO)

30200-107-014

$52.25

12

PLATE, POINTS BASE (TOYO)

30201-107-154

Unavailable

13

POINTS (KOKUSAN)

30202-028-003

Unavailable

13

POINTS (DENSO)

30202-107-004

$38.65

13

POINTS (TOYO)

30202-107-154

$24.86

13

POINTS (DENSO) This part replaces 30202-216-004.

30202-107-004

$38.65

14

FELT, OIL (KOKUSAN) (NOT AVAILABLE)

30205-028-003

Unavailable

14

FELT, OIL (KOKUSAN) (NOT AVAILABLE) This part replaces 30205-028-004.

30205-028-003

Unavailable

14

FELT, OIL (TOYO)

30205-300-154

Unavailable

15

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE) This part replaces 30220-053-003.

30220-053-154

Unavailable

15

ADVANCER ASSY., SPARK (DENSO)

30220-053-004

Unavailable

15

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE)

30220-053-154

Unavailable

16

BASE ASSY., POINTS This part replaces 30360-028-020.

30360-028-030

Unavailable

16

BASE ASSY., POINTS

30360-028-030

Unavailable

17

COVER, POINTS

30370-028-000

Unavailable

17

COVER, POINTS This part replaces 30370-128-000.

30370-028-000

Unavailable

18

GASKET, POINTS COVER

30391-102-306

Unavailable

18

GASKET, POINTS COVER This part replaces 30391-102-720.

30391-102-306

Unavailable

19

GASKET, POINT BASE This part replaces 30392-121-306.

30392-121-631

Unavailable

19

GASKET, POINT BASE This part replaces 30392-121-630.

30392-121-631

Unavailable

19

GASKET, POINT BASE This part replaces 30392-121-690.

30392-121-631

Unavailable

20

CLIP, POINT LEAD WIRE (NOT AVAILABLE)

32901-028-000

Unavailable

21

WASHER, SEALING (6MM)

90441-028-010

$2.80

22

WASHER, SEALING (8MM)

90442-028-000

$1.61

23

WASHER (5MM)

90482-028-000

$2.00

24

WASHER (8MM)

90483-028-000

$1.38

25

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.03

26

OIL SEAL (13X22X5) This part replaces 91201-028-000.

91201-028-005

$7.54

26

OIL SEAL (13X22X5)

91201-028-005

$7.54

27

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.18

27

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.18

27

O-RING (33.5X3.0)

91304-HB3-003

$7.18

28

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.32

28

BOLT, HEX. (6X14)

92101-06014-0A

$1.32

29

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

29

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

30

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

31

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$0.90

31

SCREW, PAN (6X12)

93500-06012-0A

$0.90

31

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$0.90

32

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$0.93

32

SCREW, PAN (6X20)

93500-06020-0A

$0.93

33

SCREW, OVAL (5X22)

93700-05022-0B

$0.81

34

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

34

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

34

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

34

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

34

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

34

NUT, HEX. (6MM)

94001-06200-0S

$1.19

34

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

35

NUT, CAP (8MM) This part replaces 90012-286-000.

94021-08000-0S

$1.48

35

NUT, CAP (8MM) This part replaces 94021-08000.

94021-08000-0S

$1.48

35

NUT, CAP (8MM)

94021-08000-0S

$1.48

35

NUT, CAP (8MM) This part replaces 94022-08000-0S.

94021-08000-0S

$1.48

36

NUT, HEX. (8MM)

94030-08000

$0.97

37

SPARK PLUG (D8HA) (NGK) This part replaces 98066-58714.

98066-58717

$2.16

37

SPARK PLUG (D8HA) (NGK)

98066-58717

$2.16
