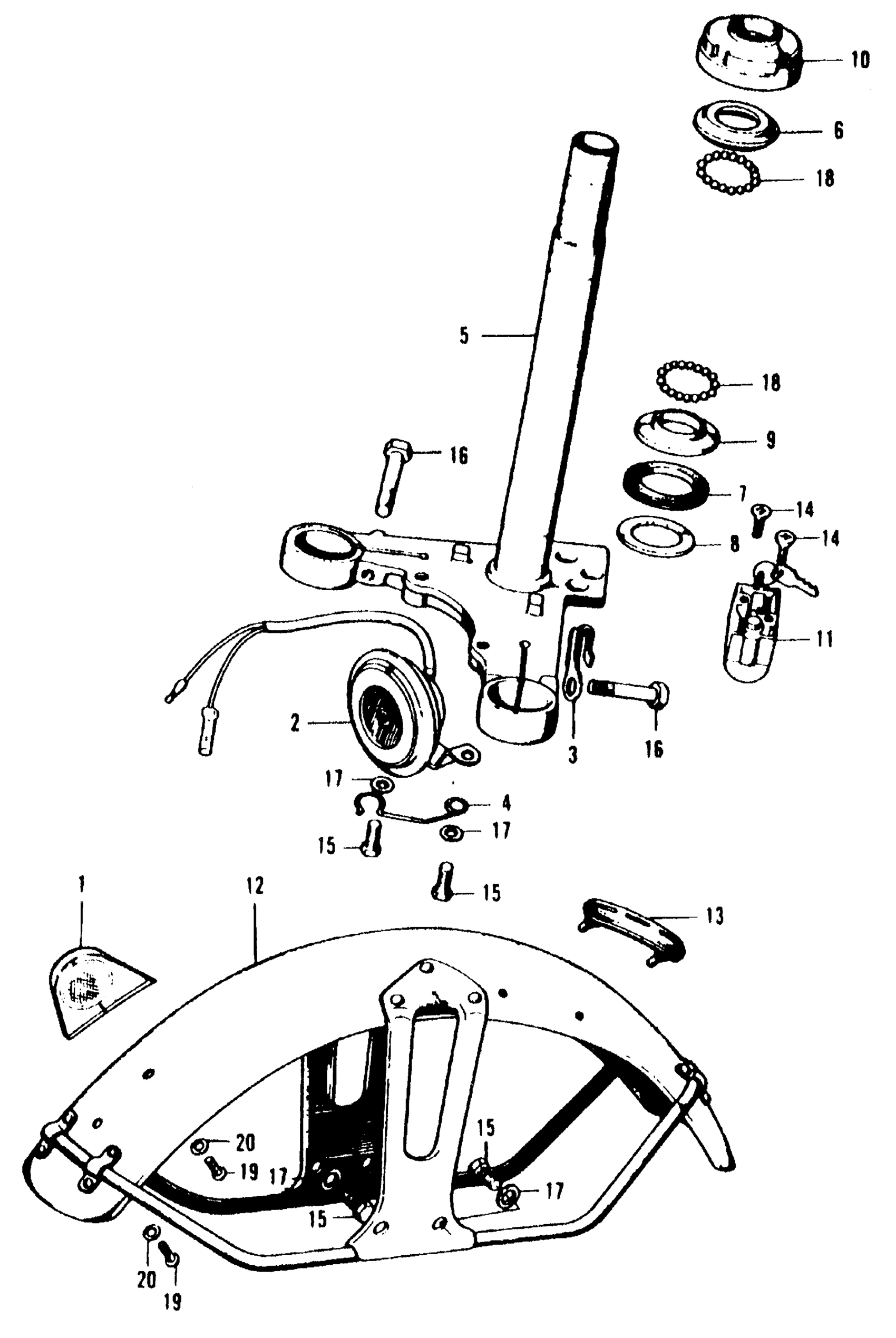

Honda CT90K4A MOTORCYCLE, JPN, VIN# CT90-1400001 STEERING STEM + FRONT FENDER + HORN Diagram

#

Description
Price

2

HORN ASSY.

38100-051-691

Unavailable

3

CLIP, FR. BRAKE CABLE

45465-028-000

Unavailable

4

GUIDE, SPEEDOMETER CABLE (NOT AVAILABLE)

45470-056-000

Unavailable

5

STEM, STEERING *YR6* (MARS ORANGE)

53200-102-000JL

Unavailable

6

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

6

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

6

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$11.09

7

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

8

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

9

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

9

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

9

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

9

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.73

10

THREAD, STEERING HEAD TOP

53220-074-000

$15.84

11

LOCK, HANDLEBAR (NOT AVAILABLE)

35010-202-000

Unavailable

11

LOCK, HANDLEBAR (NOT AVAILABLE) This part replaces 35010-212-000.

35010-202-000

Unavailable

11

LOCK, HANDLEBAR (NOT AVAILABLE) This part replaces 35010-259-000.

35010-202-000

Unavailable

11

LOCK, HANDLEBAR (NOT AVAILABLE) This part replaces 35100-202-000.

35010-202-000

Unavailable

11

LOCK, HANDLEBAR (NOT AVAILABLE) This part replaces 53600-200-000.

35010-202-000

Unavailable

11

LOCK, HANDLEBAR (NOT AVAILABLE) This part replaces 53600-202-003.

35010-202-000

Unavailable

12

FENDER, FR. *YR6* (MARS ORANGE) (NOT AVAILABLE)

61100-102-700JL

Unavailable

13

PROTECTOR, FR. FENDER

61110-102-700

Unavailable

14

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

16

BOLT, HEX. (8X32) This part replaces 92000-08032.

92101-08032-0B

$2.39

16

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

16

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

16

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
