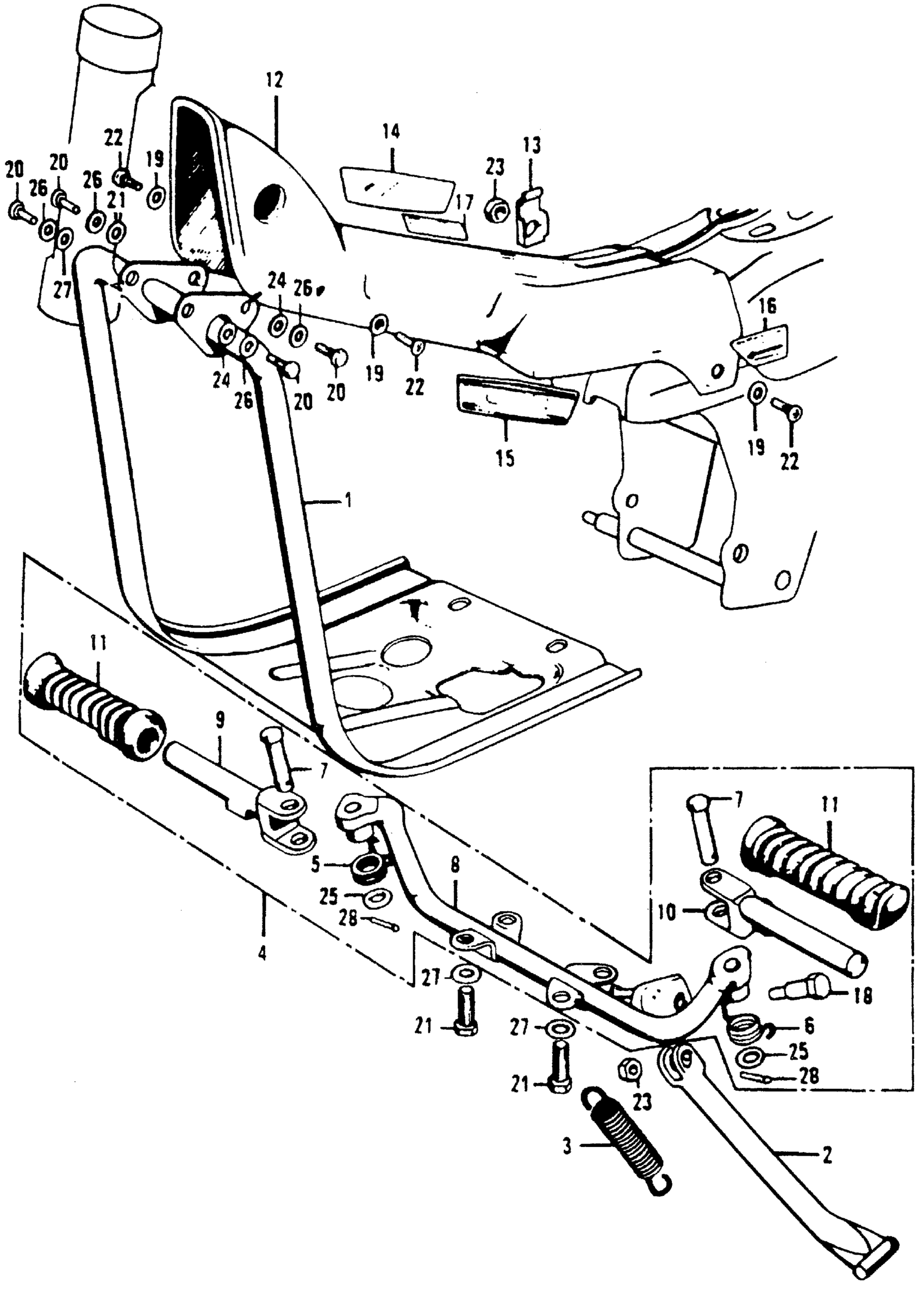

Honda CT90K4A MOTORCYCLE, JPN, VIN# CT90-1400001 MAIN PIPE COVER + CRANKCASEPROTECTOR + STEP BAR Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE (NOT AVAILABLE) This part replaces 11911-102-700XW.

11911-102-790

Unavailable

1

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11911-102-790

Unavailable

2

BAR, SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50530-102-700B

Unavailable

3

SPRING, SIDE STAND This part replaces 50542-200-000.

95014-72204

$3.01

3

SPRING, SIDE STAND This part replaces 95014-72200.

95014-72204

$3.01

3

SPRING, SIDE STAND This part replaces 95014-72201.

95014-72204

$3.01

3

SPRING, SIDE STAND This part replaces 95014-72203.

95014-72204

$3.01

3

SPRING, SIDE STAND

95014-72204

$3.01

4

BAR ASSY., STEP *NH1* (BLACK)

50600-102-000B

Unavailable

5

SPRING, R. STEP RETURN (NOT AVAILABLE)

50601-053-000

Unavailable

6

SPRING, L. STEP RETURN (NOT AVAILABLE)

50602-053-000

Unavailable

7

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

7

PIN, STEP BAR JOINT

50603-033-010

$3.30

8

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50610-077-010B.

50610-102-790ZA

Unavailable

8

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-102-790ZA

Unavailable

9

ARM, R. STEP *NH1* (BLACK) (NOT AVAILABLE)

50630-102-000B

Unavailable

10

ARM, L. STEP *NH1* (BLACK) (NOT AVAILABLE)

50640-102-000B

Unavailable

11

RUBBER, STEP

50661-110-000

$10.76

12

COVER, MAIN PIPE *NH19M* (DARK GRAY METALLIC) (NOT AVAILABLE)

64301-102-670CB

Unavailable

13

PLATE, R. MAIN PIPE COVER MOUNT (NOT AVAILABLE)

64348-077-000

Unavailable

14

EMBLEM, MAIN PIPE COVER (NOT AVAILABLE)

87120-102-700

Unavailable

16

MARK, CARBURETOR CAUTION (NOT AVAILABLE)

87131-077-000

Unavailable

17

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.84

17

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.84

18

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

19

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

19

WASHER (18MM)

90581-831-650

$1.87

20

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

21

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

21

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

22

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

22

SCREW, PAN (6X12)

93500-06012-0A

$1.49

22

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

23

NUT, HEX. (10MM) This part replaces 94002-10000.

94002-10000-0S

$4.06

23

NUT, HEX. (10MM)

94002-10000-0S

$4.06

23

NUT, HEX. (10MM) This part replaces 94002-10000-08.

94002-10000-0S

$4.06

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (6MM)

94111-06000

$1.49

27

WASHER, SPRING (8MM)

94111-08000

$1.49

28

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

28

PIN, COTTER (1.6X25)

94201-16250

$1.49
