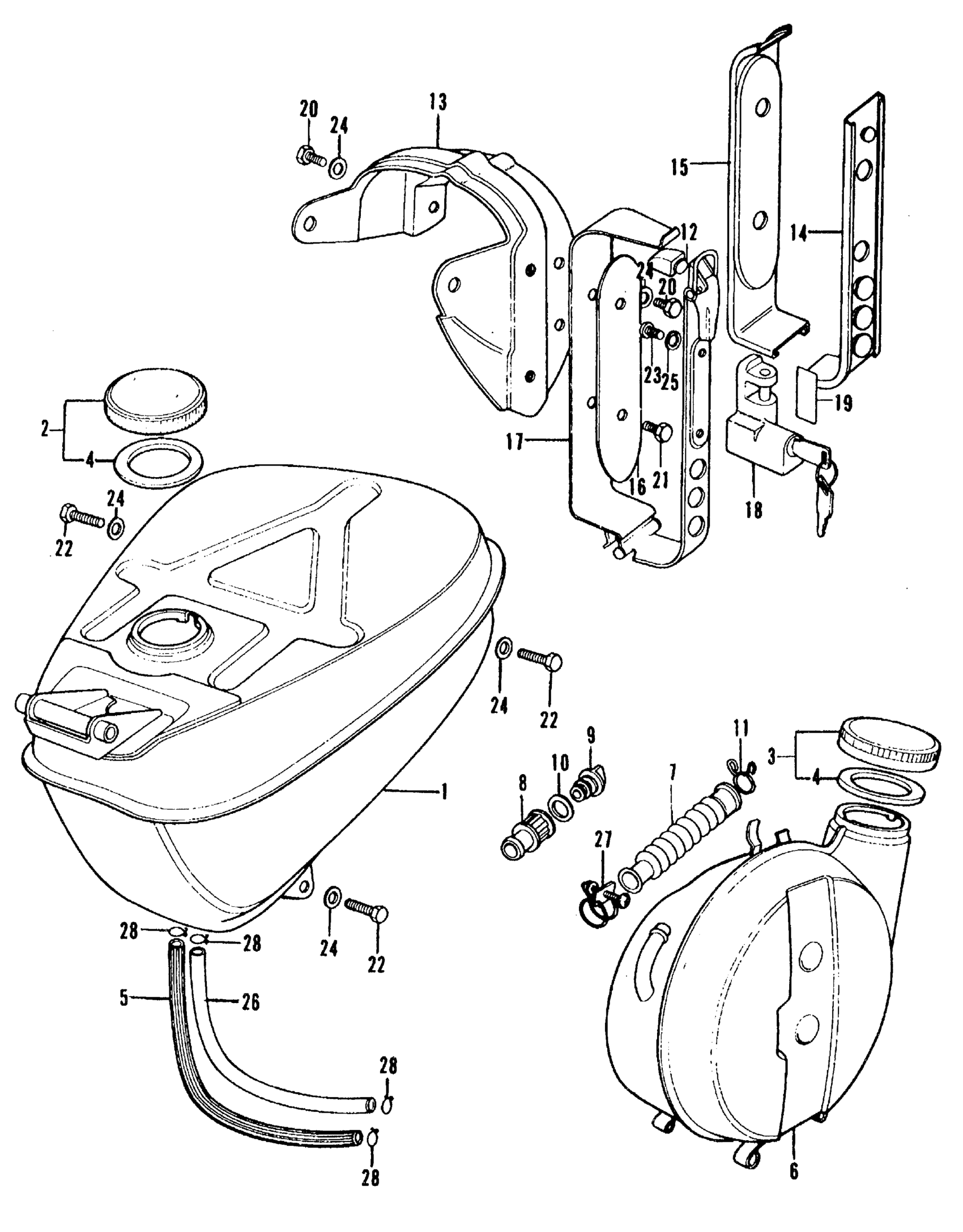

Honda CT90K4A MOTORCYCLE, JPN, VIN# CT90-1400001 FUEL TANK + SUB TANK Diagram

#

Description
Price

1

TANK SET, FUEL *YR6* (MARS ORANGE) (NOT AVAILABLE) This part replaces 17500-102-700JL.

17500-459-710ZE

Unavailable

1

TANK SET, FUEL *YR6* (MARS ORANGE) (NOT AVAILABLE) This part replaces 17500-102-701JL.

17500-459-710ZE

Unavailable

1

TANK SET, FUEL *YR6* (MARS ORANGE) (NOT AVAILABLE)

17500-459-710ZE

Unavailable

2

CAP, FUEL FILLER This part replaces 17620-041-000.

17620-171-020

Unavailable

2

CAP, FUEL FILLER This part replaces 17620-096-701.

17620-171-020

Unavailable

2

CAP, FUEL FILLER This part replaces 17620-096-702.

17620-171-020

Unavailable

2

CAP, FUEL FILLER This part replaces 17620-171-000.

17620-171-020

Unavailable

2

CAP, FUEL FILLER This part replaces 17620-171-010.

17620-171-020

Unavailable

3

CAP, FUEL FILLER This part replaces 17610-102-730.

17620-102-730

Unavailable

3

CAP, FUEL FILLER

17620-102-730

Unavailable

3

CAP, FUEL FILLER This part replaces 17620-114-000.

17620-102-730

Unavailable

4

GASKET This part replaces 17631-001-000.

17631-096-702

$2.47

4

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

5

TUBE, FUEL (5.3X350) This part replaces 17631-087-000.

95001-55350-40

Unavailable

6

SUB-TANK, FUEL *NH19M* (DARK GRAY METALLIC) (NOT AVAILABLE)

17700-102-703CB

Unavailable

7

HOSE, SUB-TANK *NH1* (BLACK) This part replaces 17710-102-702B.

17710-102-702ZA

Unavailable

7

HOSE, SUB-TANK *NH1* (BLACK)

17710-102-702ZA

Unavailable

8

CAP A, SUB-TANK HOSE

17721-102-700

Unavailable

9

CAP B, SUB-TANK HOSE

17722-102-700

Unavailable

10

GASKET, SUB-TANK HOSE CAP

17723-102-700

Unavailable

11

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

12

MOUNT, SUB-TANK *R23* (TAHITIAN RED) This part replaces 17755-102-702B.

17755-102-702ZA

Unavailable

12

MOUNT, SUB-TANK *R23* (TAHITIAN RED)

17755-102-702ZA

Unavailable

13

BRACKET, SUB-TANK *YR6* (MARS ORANGE) (NOT AVAILABLE)

17761-102-701JL

Unavailable

14

PROTECTOR, SUB-TANK BAND *NH1* (BLACK) This part replaces 17766-102-700B.

17766-102-700ZA

Unavailable

14

PROTECTOR, SUB-TANK BAND *NH1* (BLACK)

17766-102-700ZA

Unavailable

15

PROTECTOR, SUB-TANK HOLDER *NH1* (BLACK) This part replaces 17767-102-700B.

17767-102-700ZA

Unavailable

15

PROTECTOR, SUB-TANK HOLDER *NH1* (BLACK)

17767-102-700ZA

Unavailable

16

PLATE, SUB-TANK HOLDER SETTING *NH1* (BLACK) This part replaces 17768-102-700B.

17768-102-700ZA

Unavailable

16

PLATE, SUB-TANK HOLDER SETTING *NH1* (BLACK)

17768-102-700ZA

Unavailable

17

HOLDER, SUB-TANK *NH1* (BLACK) This part replaces 17777-102-700B.

17777-102-700ZA

Unavailable

17

HOLDER, SUB-TANK *NH1* (BLACK)

17777-102-700ZA

Unavailable

18

HOLDER ASSY., HELMET This part replaces 50710-102-701.

50710-459-671

Unavailable

18

HOLDER ASSY., HELMET

50710-459-671

Unavailable

19

LABEL, HELMET HOLDER

87511-323-670

$2.72

20

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

20

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

22

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

23

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

27

CLIP, TUBE (A16)

95002-01160

$4.05

28

CLIP, TUBE (B10)

95002-02100

$1.90
