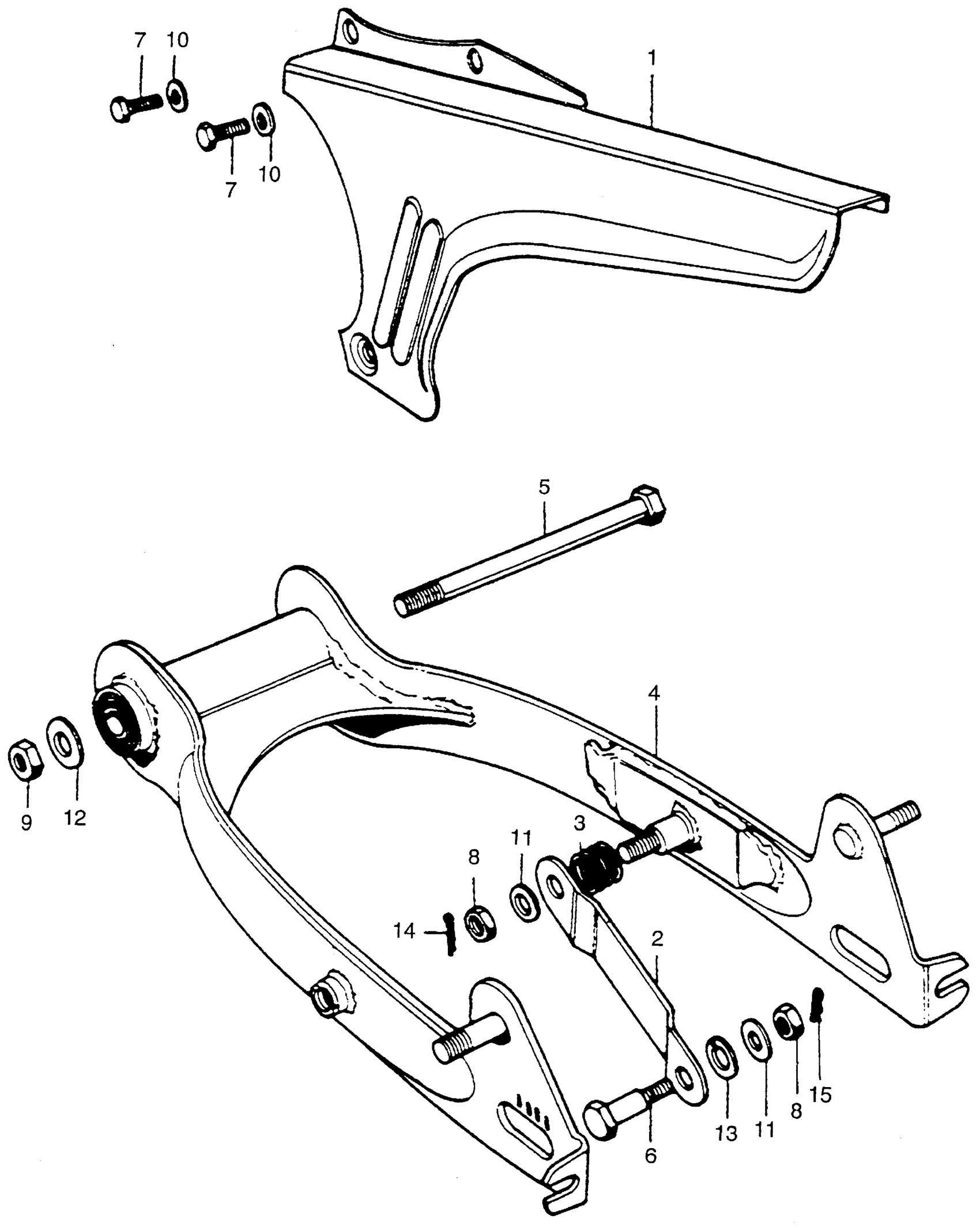

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000AZ.

40510-098-000ZC

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000CQ.

40510-098-000ZC

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000DD.

40510-098-000ZC

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000DF.

40510-098-000ZC

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000NE.

40510-098-000ZC

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000Z.

40510-098-000ZC

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK)

40510-098-000ZC

Unavailable

2

ARM, RR. BRAKE STOPPER This part replaces 43431-098-000.

43431-124-740

Unavailable

2

ARM, RR. BRAKE STOPPER

43431-124-740

Unavailable

3

SPRING, STOPPER ARM

43434-250-000

$2.00

4

SWINGARM *PB2C* (CANDY BLUE GREEN) This part replaces 52100-098-020AZ.

52100-098-020ZF

Unavailable

4

SWINGARM, RR. *YR1C* (CANDY TOPAZ ORANGE)

52100-098-020DD

Unavailable

4

SWINGARM, RR. *G2C* (CANDY EMERALD GREEN)

52100-098-020DF

Unavailable

4

SWINGARM *PB2C* (CANDY BLUE GREEN)

52100-098-020ZF

Unavailable

4

SWINGARM *PB2C* (CANDY BLUE GREEN) This part replaces 52100-098-670AZ.

52100-098-020ZF

Unavailable

4

SWINGARM, RR. *YR1C* (CANDY TOPAZ ORANGE) This part replaces 52100-098-670DD.

52100-098-020DD

Unavailable

4

SWINGARM, RR. *G2C* (CANDY EMERALD GREEN) This part replaces 52100-098-670DF.

52100-098-020DF

Unavailable

4

SWINGARM, RR. (NOT AVAILABLE)

52100-098-670Z

Unavailable

5

BOLT, SWINGARM PIVOT This part replaces 90121-098-010.

90121-098-970

Unavailable

5

BOLT, SWINGARM PIVOT

90121-098-970

Unavailable

6

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

6

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

7

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

8

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

8

NUT, HEX. (8MM)

94030-08000

$1.49

8

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

9

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

9

NUT, HEX. (10MM)

94030-10000

$1.49

9

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

10

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

10

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

10

WASHER, PLAIN (6MM)

94101-06800

$1.49

11

WASHER, PLAIN (8MM)

94101-08000

$1.49

12

WASHER, PLAIN (10MM)

94101-10000

$1.49

13

WASHER, SPRING (8MM)

94111-10000

$1.49

14

PIN, COTTER (2.0X15)

94201-20150

$1.49

15

PIN, LOCK (8MM)

94251-08000

$1.49
