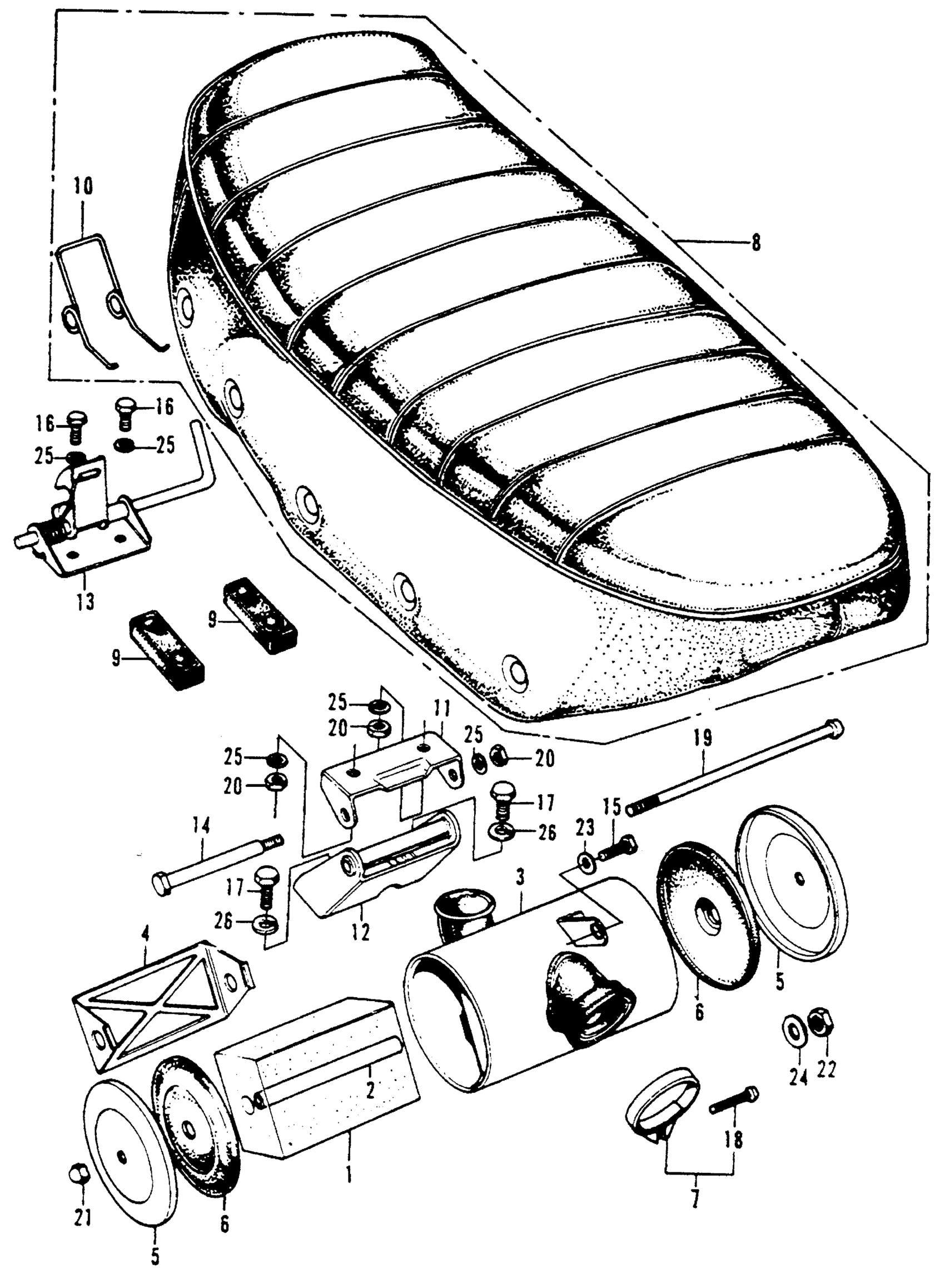

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 SEAT + AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-098-771

$6.17

2

PIPE, AIR CLEANER (INNER)

17212-045-000

Unavailable

3

HOUSING, AIR CLEANER *NH1* (BLACK) (NOT AVAILABLE)

17221-098-771B

Unavailable

4

PLATE, AIR CLEANER ELEMENT MOUNT

17222-098-771

$7.08

5

COVER, AIR CLEANER HOUSING

17231-045-030

$9.57

6

GASKET, AIR CLEANER HOUSING

17252-098-771

$11.62

7

BAND, INSULATOR

16223-GBF-830

$11.87

7

BAND, INSULATOR This part replaces 17255-098-000.

16223-GBF-830

$11.87

7

BAND, INSULATOR This part replaces 17256-367-690.

16223-GBF-830

$11.87

8

SEAT *NH1L* (BLACK) (NOT AVAILABLE) This part replaces 77200-098-670A.

77200-098-920A

Unavailable

8

SEAT *NH1L* (BLACK) (NOT AVAILABLE)

77200-098-920A

Unavailable

9

RUBBER B, SEAT SETTING

77205-286-000

$5.28

10

SPRING, TOOL MOUNT

77207-098-310

Unavailable

11

BRACKET A, SEAT This part replaces 77210-098-000B.

77210-126-000

$6.96

11

BRACKET A, SEAT

77210-126-000

$6.96

11

BRACKET A, SEAT This part replaces 77210-126-000B.

77210-126-000

$6.96

12

BRACKET B, SEAT

77211-098-000

$11.00

12

BRACKET B, SEAT This part replaces 77211-098-000B.

77211-098-000

$11.00

13

CATCH ASSY., SEAT (NOT AVAILABLE)

77230-098-000

Unavailable

14

PIN, SEAT HINGE

90101-001-010

Unavailable

15

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

15

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

17

BOLT, HEX. (8X16) This part replaces 92000-08016.

92101-08016-0A

$1.49

17

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

17

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

17

BOLT, HEX. (8X16) This part replaces 92200-08016-OA.

92101-08016-0A

$1.49

18

SCREW, PAN (4X25) This part replaces 93500-04025.

93500-04025-0A

$1.93

18

SCREW, PAN (4X25)

93500-04025-0A

$1.93

19

SCREW, PAN (6X135) This part replaces 93500-06135-02.

93500-06135-1B

$3.47

19

SCREW, PAN (6X135)

93500-06135-1B

$3.47

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

NUT, CAP (6MM)

94021-06020

$1.73

21

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

22

NUT, HEX. (8MM)

94030-08000

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49
