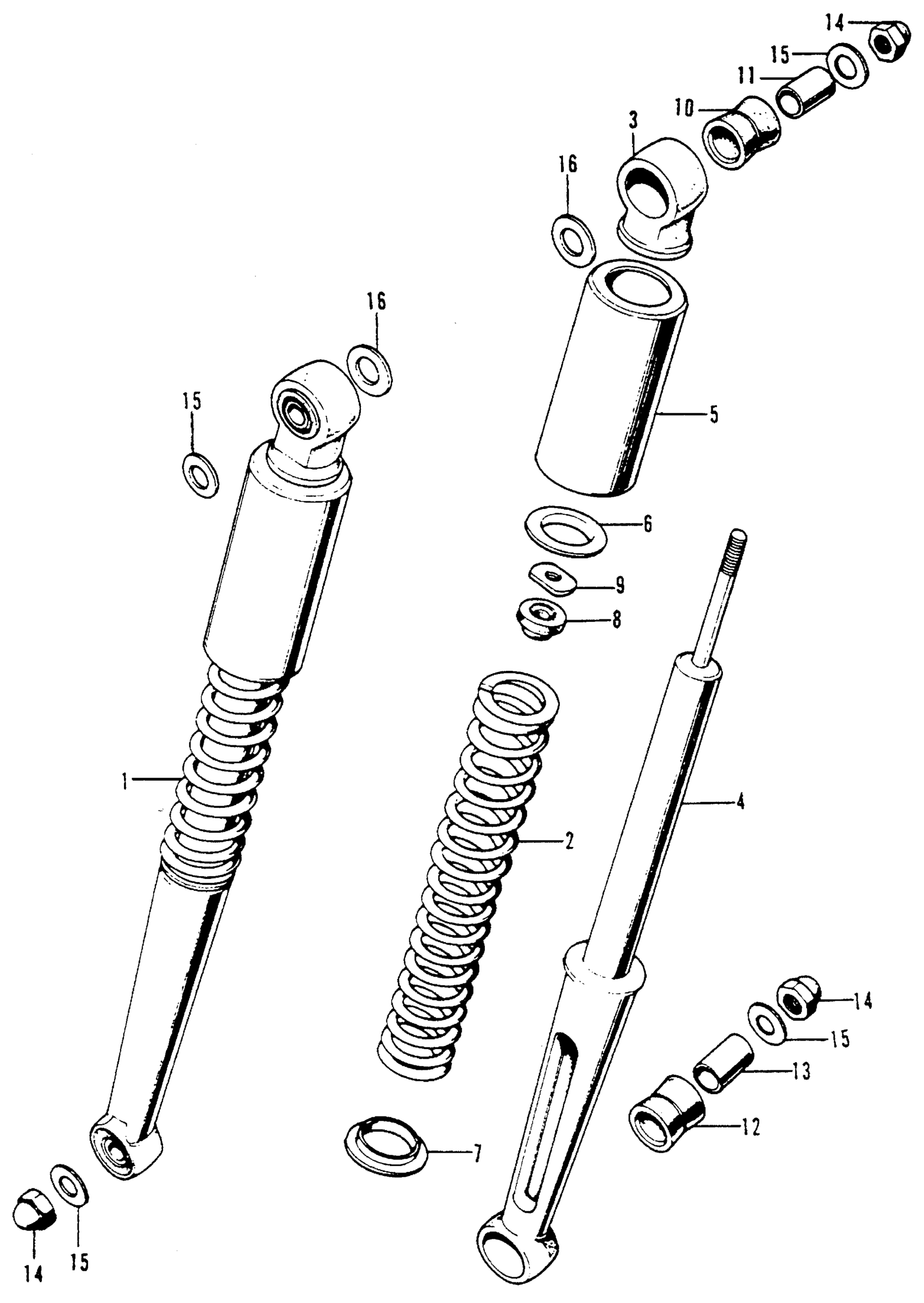

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ASSY. *PB2C* This part replaces 52400-098-670AZ.

52400-098-971ZF

Unavailable

1

SHOCK ABSORBER ASSY., RR. *YR1C* (CANDY TOPAZ ORANGE) This part replaces 52400-098-670DD.

52400-098-971ZH

Unavailable

1

S/ABS, RR. *G2C* This part replaces 52400-098-670DF.

52400-098-971ZJ

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-098-670

Unavailable

3

METAL, RR. SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52410-033-000

Unavailable

4

DAMPER, RR. (NOT AVAILABLE) This part replaces 52410-098-951.

52410-098-952

Unavailable

4

DAMPER, RR. (NOT AVAILABLE)

52410-098-952

Unavailable

4

DAMPER, RR. (NOT AVAILABLE) This part replaces 52450-098-670.

52410-098-952

Unavailable

5

CASE, RR. SHOCK ABSORBER (UPPER) *PB2C* (CANDY BLUE GREEN) (NOT AVAILABLE)

52460-098-670AZ

Unavailable

5

CASE, RR. SHOCK ABSORBER (UPPER) *YR1C* (CANDY TOPAZ ORANGE) (NOT AVAILABLE)

52460-098-670DD

Unavailable

5

CASE, RR. SHOCK ABSORBER (UPPER) *G2C* (CANDY EMERALD GREEN) (NOT AVAILABLE)

52460-098-670DF

Unavailable

5

CASE, RR. SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52460-098-670Z

Unavailable

6

GUIDE, RR. SHOCK ABSORBER SPRING (UPPER) (NOT AVAILABLE)

52461-089-670

Unavailable

7

GUIDE, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52462-089-670

Unavailable

8

RUBBER, RR. SHOCK ABSORBER STOPPER (NOT AVAILABLE)

52475-051-000

Unavailable

9

NUT, RR. SHOCK ABSORBER LOCK (UPPER)

52481-051-000

Unavailable

10

BUSH, SHOCK RUBBER This part replaces 52485-001-010.

52495-098-000

Unavailable

10

BUSH, SHOCK RUBBER

52495-098-000

Unavailable

11

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH This part replaces 52488-001-000.

52496-040-000

$4.12

11

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52496-040-000

$4.12

12

BUSH, RR. SHOCK ABSORBER RUBBER

52489-028-000

$5.23

13

COLLAR, RR. DAMPER RUBBER BUSH (UPPER) (NOT AVAILABLE)

52496-035-000

Unavailable

14

NUT, CAP (10MM) This part replaces 94021-10020.

94021-10020-0S

$2.08

14

NUT, CAP (10MM)

94021-10020-0S

$2.08

14

NUT, CAP (10MM) This part replaces 94022-10000.

94021-10020-0S

$2.08

14

NUT, CAP (10MM) This part replaces 94022-10020.

94021-10020-0S

$2.08

14

NUT, CAP (10MM) This part replaces 94022-10020-0S.

94021-10020-0S

$2.08

15

WASHER, PLAIN (10MM)

94101-10000

$1.49

16

WASHER, PLAIN (12MM)

94101-12000

$1.49
