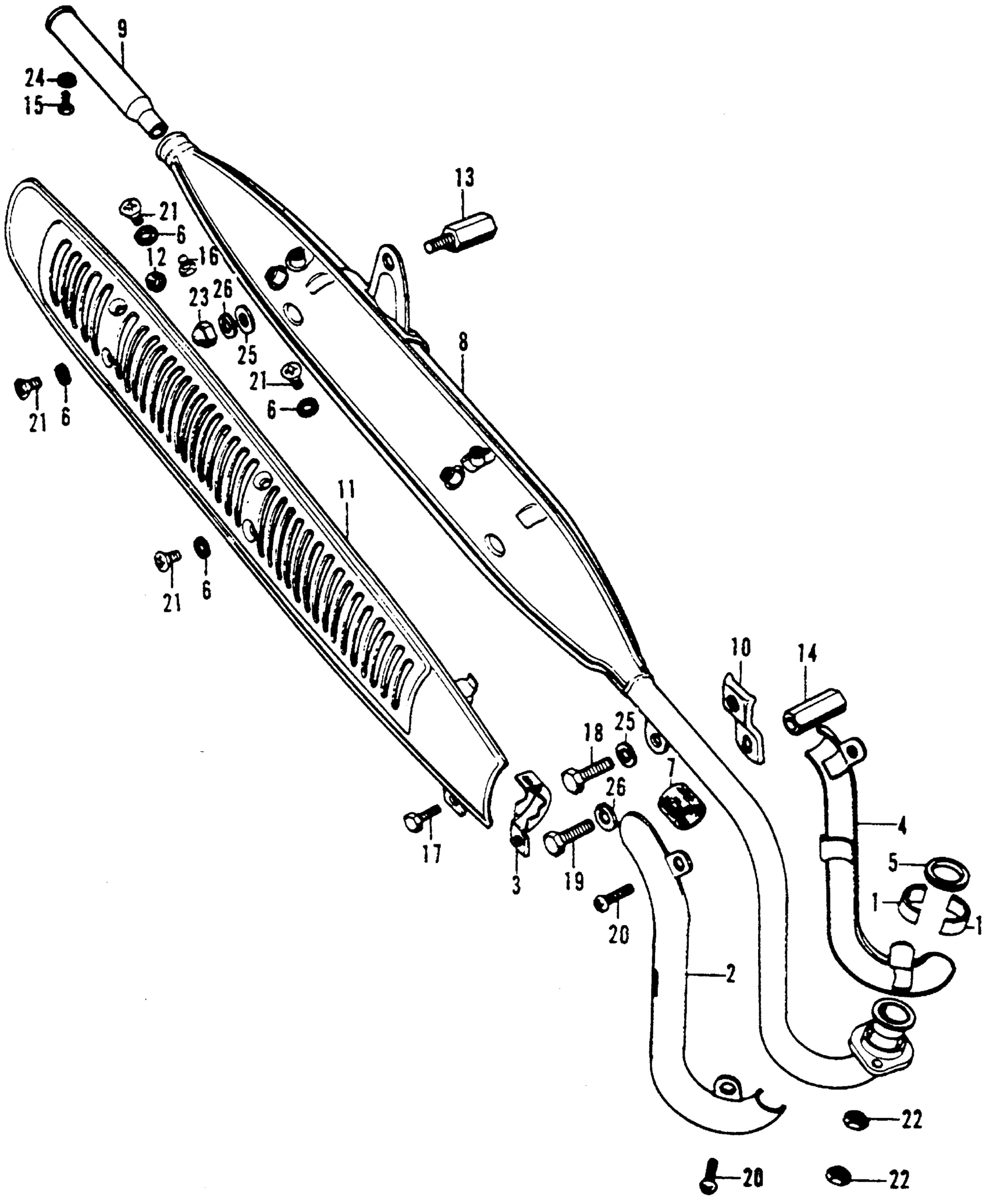

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 MUFFLER Diagram

#

Description
Price

1

COLLAR, EX. PIPE JOINT

18233-051-000

$2.37

2

COVER, EX. PIPE This part replaces 18271-098-671.

18271-098-672

Unavailable

2

COVER, EX. PIPE

18271-098-672

Unavailable

3

BAND, PROTECTOR SETTING

18281-011-000

$5.89

4

COVER B, EX. PIPE This part replaces 18281-098-670.

18281-098-671

Unavailable

4

COVER B, EX. PIPE

18281-098-671

Unavailable

5

GASKET, EX. PIPE

18291-HB2-900

$3.56

5

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.56

5

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.56

6

GASKET, PROTECTOR

18292-167-890

$1.82

6

GASKET, PROTECTOR This part replaces 18292-254-000.

18292-167-890

$1.82

7

GASKET B, PROTECTOR

18293-GAN-670

$10.37

7

GASKET B, PROTECTOR This part replaces 18293-076-000.

18293-GAN-670

$10.37

8

MUFFLER, EX.

183A0-098-673

$279.00

8

MUFFLER, EX. This part replaces 18300-098-673.

183A0-098-673

$279.00

8

MUFFLER, EX. This part replaces 18300-098-677.

183A0-098-673

$279.00

9

PIPE, EX. DIFFUSER

18311-077-020

$24.61

10

STAY, FR. MUFFLER

18321-098-671

$5.99

11

PROTECTOR, MUFFLER

18361-098-672

Unavailable

12

RUBBER, MUFFLER PROTECTOR (NOT AVAILABLE)

18362-098-670

Unavailable

13

BOLT, RR. MUFFLER SETTING

90120-056-010

$7.06

14

NUT, FR. MUFFLER STAY

90305-098-670

Unavailable

15

BOLT, HEX. (5X8) This part replaces 92000-05008-4J.

92101-05008-4J

$2.80

15

BOLT, HEX. (5X8)

92101-05008-4J

$2.80

16

BOLT, HEX. (6X6) This part replaces 92000-06006.

92101-06006-0A

$1.46

16

BOLT, HEX. (6X6) This part replaces 92000-06006-0A.

92101-06006-0A

$1.46

16

BOLT, HEX. (6X6)

92101-06006-0A

$1.46

17

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.47

17

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.47

17

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.47

17

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.47

17

BOLT, HEX. (6X16)

92101-06016-0A

$1.47

17

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.47

18

BOLT, HEX. (8X16) This part replaces 92000-08016.

92101-08016-0A

$1.47

18

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.47

18

BOLT, HEX. (8X16)

92101-08016-0A

$1.47

18

BOLT, HEX. (8X16) This part replaces 92200-08016-OA.

92101-08016-0A

$1.47

19

BOLT, HEX. (8X20) This part replaces 90104-YB1-003.

92101-08020-0A

Unavailable

19

BOLT, HEX. (8X20) This part replaces 92000-08020.

92101-08020-0A

Unavailable

19

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

Unavailable

19

BOLT, HEX. (8X20)

92101-08020-0A

Unavailable

20

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$0.90

20

SCREW, PAN (5X12)

93500-05012-0A

$0.90

21

SCREW, OVAL (6X10) This part replaces 93700-06010-4B.

93700-06010-4J

$2.43

21

SCREW, OVAL (6X10)

93700-06010-4J

$2.43

21

SCREW, OVAL (6X10) This part replaces 93700-06010-40.

93700-06010-4J

$2.43

21

SCREW, OVAL (6X10) This part replaces 93700-06010-49.

93700-06010-4J

$2.43

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.31

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.31

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.31

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.31

22

NUT, HEX. (6MM)

94001-06200-0S

$1.31

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.31

23

NUT, CAP (8MM)

94021-08020-0S

$2.18

24

WASHER, PLAIN (5MM)

94101-05000

$0.91

25

WASHER, PLAIN (8MM)

94101-08000

Unavailable

26

WASHER, SPRING (8MM)

94111-08000

Unavailable
