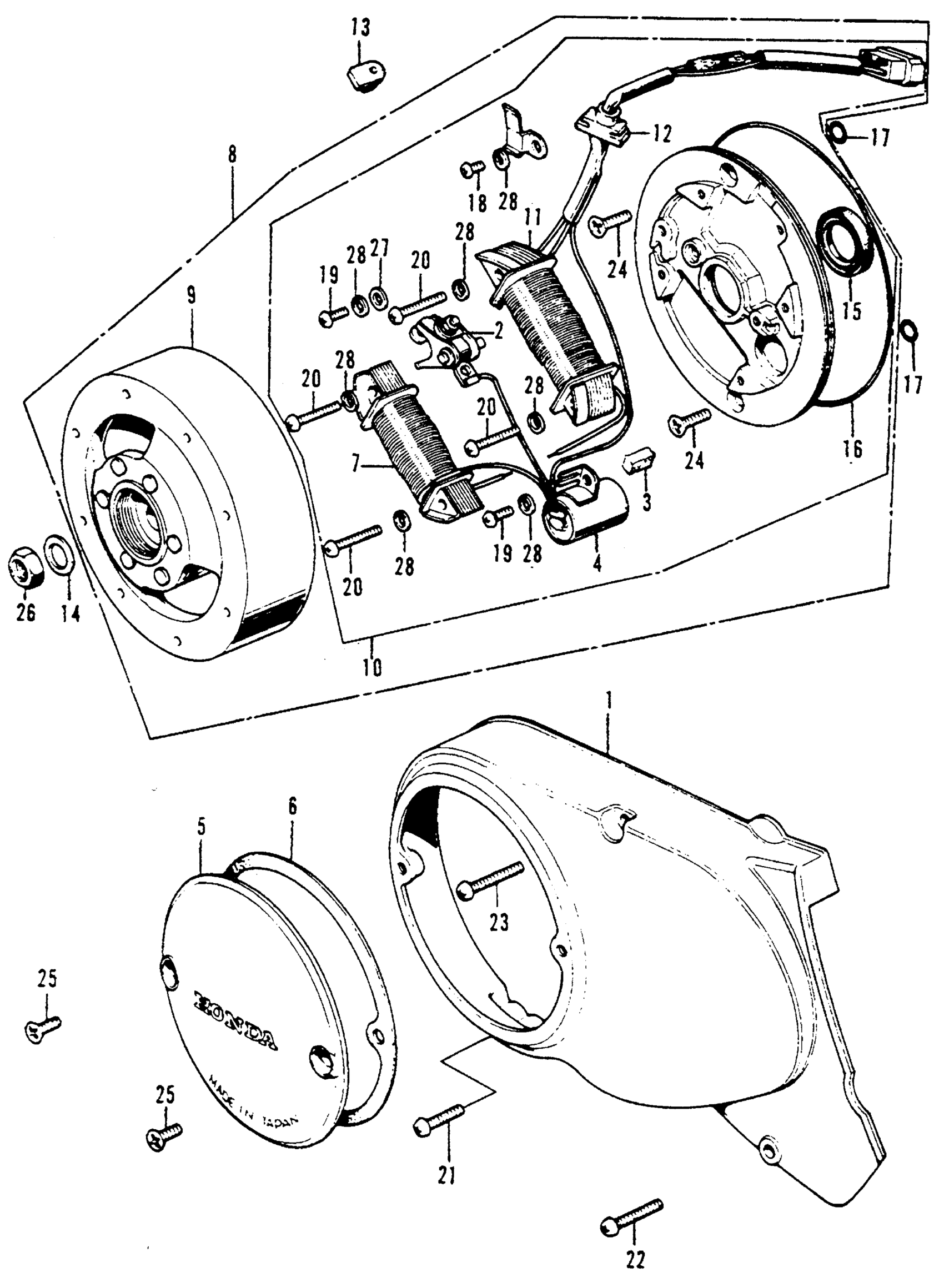

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE This part replaces 11341-098-000.

11341-165-750

Unavailable

1

COVER, L. CRANKCASE This part replaces 11341-098-010.

11341-165-750

Unavailable

1

COVER, L. CRANKCASE

11341-165-750

Unavailable

2

POINTS (MITSUBISHI) This part replaces 30202-035-006.

30202-041-005

Unavailable

2

POINTS (MITSUBISHI)

30202-041-005

Unavailable

2

POINTS (HITACHI)

30202-041-015

$29.26

3

FELT, OIL (MITSUBISHI) (NOT AVAILABLE)

30205-001-096

Unavailable

3

FELT, OIL (HITACHI)

30205-041-005

$3.83

4

CONDENSER (MITSUBISHI)

30250-035-006

Unavailable

4

CONDENSER (HITACHI)

30250-041-005

$24.74

5

COVER, POINTS This part replaces 30371-040-020.

30371-098-750

Unavailable

5

COVER, POINTS This part replaces 30371-098-730.

30371-098-750

Unavailable

5

COVER, POINTS

30371-098-750

Unavailable

5

COVER, POINTS This part replaces 30371-126-670.

30371-098-750

Unavailable

6

GASKET, POINTS COVER This part replaces 30374-040-010.

30374-040-020

$3.13

6

GASKET, POINTS COVER

30374-040-020

$3.13

6

GASKET, POINTS COVER This part replaces 30374-040-306.

30374-040-020

$3.13

7

COIL, PRIMARY (HITACHI)

30540-041-005

Unavailable

7

COIL, PRIMARY (MITSUBISHI)

30560-035-006

Unavailable

8

ALTERNATOR, FLYWHEEL (NOT AVAILABLE)

31100-098-721

Unavailable

8

ALTERNATOR, FLYWHEEL (NOT AVAILABLE)

31100-098-722

Unavailable

9

FLYWHEEL (MITSUBISHI) (NOT AVAILABLE)

31121-051-016

Unavailable

9

FLYWHEEL (NOT AVAILABLE) This part replaces 31121-098-722.

31121-118-671

Unavailable

9

FLYWHEEL (NOT AVAILABLE)

31121-118-671

Unavailable

10

STATOR ASSY. (NOT AVAILABLE)

31141-098-721

Unavailable

10

STATOR ASSY. (NOT AVAILABLE)

31141-098-722

Unavailable

11

COIL, LIGHT (NOT AVAILABLE)

31631-098-671

Unavailable

11

COIL, LIGHT (NOT AVAILABLE)

31631-098-721

Unavailable

11

COIL, LIGHT (NOT AVAILABLE) This part replaces 31631-098-722.

31631-098-671

Unavailable

12

GROMMET, WIRE

32971-035-000

$2.44

13

GROMMET, NEUTRAL SWITCH WIRE

32981-035-000

Unavailable

14

WASHER, MAGNET FIXING

90426-035-000

$2.57

15

OIL SEAL (18.9X30X5) This part replaces 91202-GB4-682.

91202-GK4-722

$6.14

15

OIL SEAL (18.9X30X5)

91202-GK4-722

$6.14

15

OIL SEAL (18.9X30X5) This part replaces 91202-035-000.

91202-GK4-722

$6.14

15

OIL SEAL (18.9X30X5) This part replaces 91202-035-003.

91202-GK4-722

$6.14

15

OIL SEAL (18.9X30X5) This part replaces 91202-035-005.

91202-GK4-722

$6.14

16

O-RING (107X2) (ARAI) This part replaces 91301-035-000.

91301-035-003

$7.05

16

O-RING (107X2)

91301-035-003

$7.05

17

O-RING (6X1.7)

91317-171-003

$2.92

17

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.92

18

SCREW, PAN (4X6)

93500-04006-0A

$1.49

19

SCREW, PAN (4X10)

93500-04010-0A

$1.49

20

SCREW, PAN (4X25) This part replaces 93500-04025.

93500-04025-0A

$1.93

20

SCREW, PAN (4X25)

93500-04025-0A

$1.93

21

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

21

SCREW, PAN (6X20)

93500-06020-0A

$1.49

22

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

22

SCREW, PAN (6X28)

93500-06028-0A

$1.49

23

SCREW, PAN (6X35)

93500-06035-0A

$1.49

23

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

24

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

24

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$1.49

25

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

26

NUT, HEX. (10MM)

94030-10000

$1.49

27

WASHER, PLAIN (4MM)

94101-04000

$1.49

28

WASHER, SPRING (4MM)

94111-04000

$1.49
