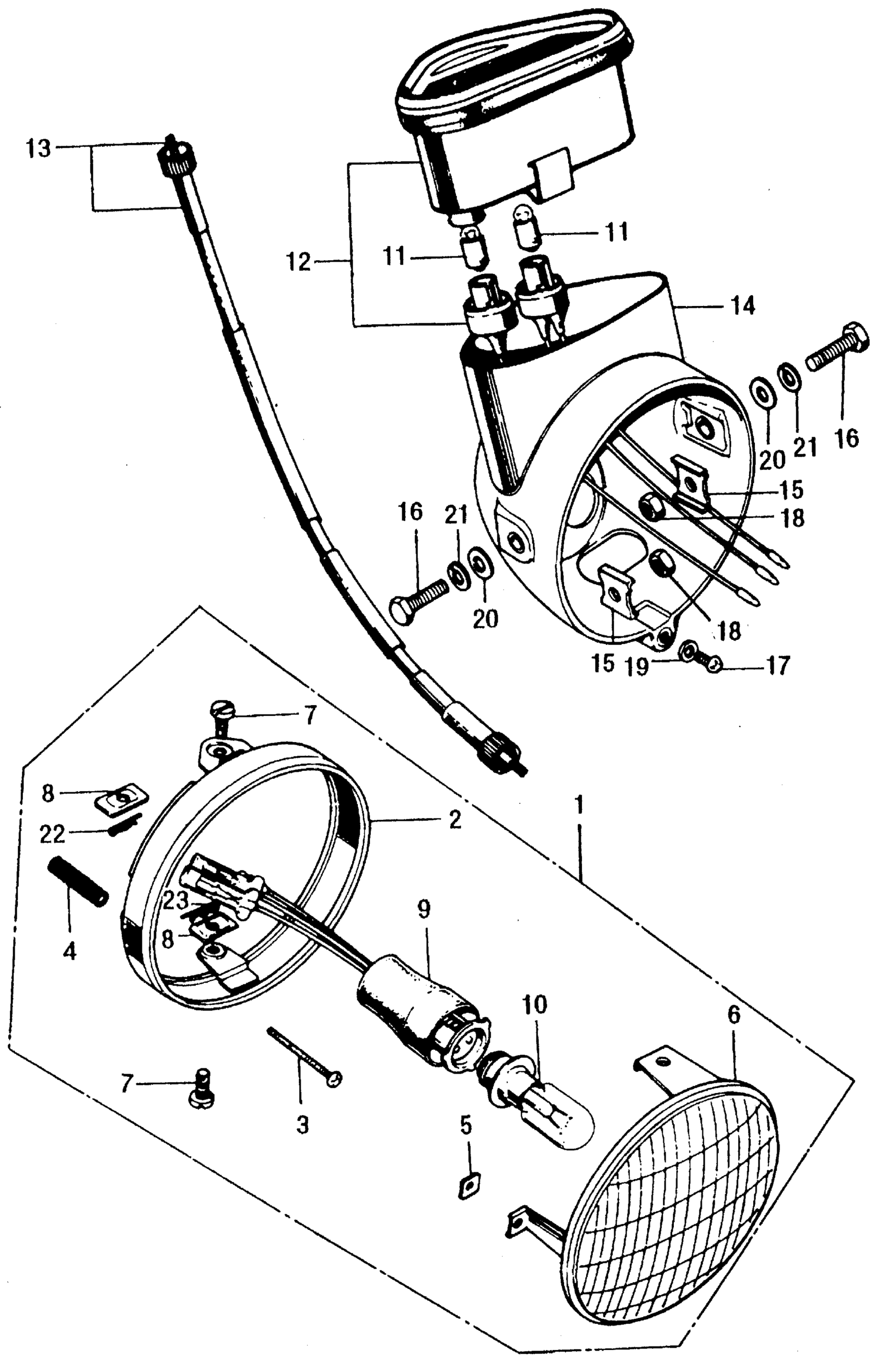

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 HEADLIGHT + SPEEDOMETER Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-089-671

Unavailable

2

RIM, HEADLIGHT (N/A: SEE ASSEMBLY)

33101-028-672

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY)

33102-041-003

$2.25

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) This part replaces 33102-041-670.

33102-041-003

$2.25

4

SPRING, HEADLIGHT SETTING

33107-030-003

$2.54

5

NUT, BEAM ADJ.

33117-041-003

$1.95

6

HEADLIGHT UNIT

33120-089-671

Unavailable

7

SCREW, UNIT HOLDER

33125-292-670

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE)

33130-028-671

Unavailable

10

BULB, HEADLIGHT (6V15/15W) (STANLEY)

34901-001-025

$19.11

10

BULB, HEADLIGHT (6V15/15W) (STANLEY) This part replaces 34901-001-671.

34901-001-025

$19.11

11

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

12

SPEEDOMETER ASSY. (MILE) (NOT AVAILABLE)

37200-098-771

Unavailable

13

CABLE, SPEEDOMETER This part replaces 44830-098-000.

44830-126-651

Unavailable

13

CABLE, SPEEDOMETER This part replaces 44830-126-650.

44830-126-651

Unavailable

14

CASE, HEADLIGHT *PB2C* (CANDY BLUE GREEN) (NOT AVAILABLE)

61301-056-671AZ

Unavailable

14

CASE, HEADLIGHT *YR1C* (CANDY TOPAZ ORANGE) (NOT AVAILABLE)

61301-056-671DD

Unavailable

14

CASE, HEADLIGHT *G2C* (CANDY EMERALD GREEN) (NOT AVAILABLE) This part replaces 61301-056-671DF.

61301-056-672DF

Unavailable

14

CASE, HEADLIGHT *G2C* (CANDY EMERALD GREEN) (NOT AVAILABLE)

61301-056-672DF

Unavailable

15

WASHER, HEADLIGHT CASE

61303-229-000

$2.67

16

BOLT, HEX. (8X25) This part replaces 92000-08025.

92101-08025-0A

$1.74

16

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

16

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

17

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

17

SCREW, PAN (5X12)

93500-05012-0A

$1.49

18

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

18

NUT, HEX. (8MM)

94030-08000

$1.49

18

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

19

WASHER, PLAIN (5MM)

94101-05000

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, SPRING (8MM)

94111-08000

$1.49

22

PIN, LOCK (5MM)

94251-05000

$1.49
