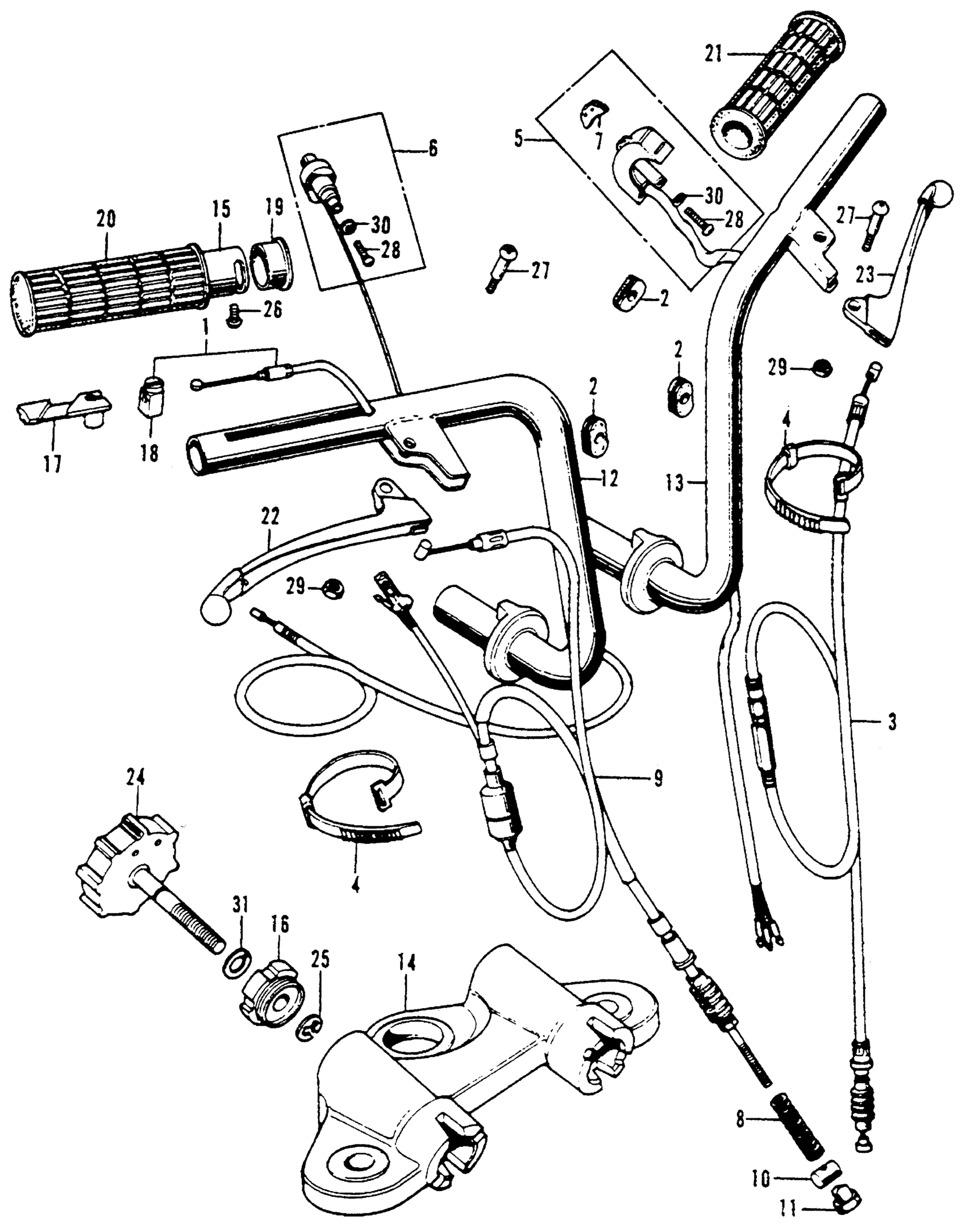

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 HANDLEBAR Diagram

#

Description
Price

1

CABLE, THROTTLE This part replaces 17910-098-672.

17910-098-673

Unavailable

1

CABLE, THROTTLE

17910-098-673

Unavailable

2

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

3

CABLE, CLUTCH This part replaces 22870-098-770.

22870-098-970

Unavailable

3

CABLE, CLUTCH

22870-098-970

Unavailable

4

BAND B1, CABLE This part replaces 32161-098-000.

95014-62100

$1.64

4

BAND B1, CABLE

95014-62100

$1.64

5

SWITCH ASSY., DIMMER This part replaces 35250-098-671.

35250-126-701

$24.15

5

SWITCH ASSY., DIMMER

35250-126-701

$24.15

6

SWITCH ASSY., HORN (NOT AVAILABLE)

35250-130-620

Unavailable

6

SWITCH ASSY., HORN (NOT AVAILABLE) This part replaces 35300-098-671.

35250-130-620

Unavailable

7

KNOB, DIMMER SWITCH (NOT AVAILABLE)

35319-098-671

Unavailable

8

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

9

CABLE, FR. BRAKE | Use up to Frame SN 150720 This part replaces 45450-098-670.

45450-126-000

$57.84

9

CABLE, FR. BRAKE This part replaces 45450-098-671.

45450-126-000

$57.84

9

CABLE, FR. BRAKE

45450-126-000

$57.84

10

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

10

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

10

JOINT A, BRAKE ARM

95015-31001

$1.53

11

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

11

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

12

HANDLEBAR, R. (NOT AVAILABLE) This part replaces 53110-098-670.

53110-098-671

Unavailable

12

HANDLEBAR, R. (NOT AVAILABLE)

53110-098-671

Unavailable

13

HANDLEBAR, L. (NOT AVAILABLE) This part replaces 53120-098-670.

53120-098-671

Unavailable

13

HANDLEBAR, L. (NOT AVAILABLE)

53120-098-671

Unavailable

14

HOLDER, HANDLEBAR (NOT AVAILABLE)

53131-098-670

Unavailable

15

PIPE, THROTTLE GRIP

53141-098-000

$17.71

16

NUT, HANDLE HOLDER

53143-045-000

Unavailable

17

HINGE, THROTTLE CABLE

53161-044-000

$8.88

18

HOLDER, THROTTLE CABLE (OUTER) This part replaces 53162-098-000.

53162-098-010

$6.30

18

HOLDER, THROTTLE CABLE (OUTER)

53162-098-010

$6.30

19

STOPPER, THROTTLE GRIP

53163-044-000

$4.95

20

GRIP, R. HANDLE This part replaces 53165-044-010.

95011-12100

$4.43

20

GRIP, R. HANDLE

95011-12100

$4.43

21

GRIP B, L. HANDLEBAR This part replaces 53166-044-010.

95011-12200

$5.66

21

GRIP B, L. HANDLEBAR

95011-12200

$5.66

22

LEVER, R. HANDLEBAR This part replaces 53175-098-770.

53175-147-010

Unavailable

22

LEVER, R. HANDLEBAR

53175-147-010

Unavailable

23

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GF0-000.

53178-GGL-305

$14.62

23

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GR2-000.

53178-GGL-305

$14.62

23

LEVER, L. HANDLEBAR (COO) This part replaces 53178-098-770.

53178-GGL-305

$14.62

23

LEVER, L. HANDLEBAR (COO) This part replaces 53178-147-000.

53178-GGL-305

$14.62

23

LEVER, L. HANDLEBAR (COO) This part replaces 53178-147-010.

53178-GGL-305

$14.62

23

LEVER, L. HANDLEBAR (COO) This part replaces 53178-155-000.

53178-GGL-305

$14.62

23

LEVER, L. HANDLEBAR (COO) This part replaces 53178-187-000.

53178-GGL-305

$14.62

24

KNOB, HANDLE HOLDER

53740-098-000

Unavailable

25

RING, KNOB STOPPER

53746-045-010

Unavailable

26

SCREW, THROTTLE GRIP MOUNT This part replaces 90101-063-000.

90101-063-505

$5.04

27

SCREW, L. HANDLEBAR LEVER PIVOT This part replaces 90114-063-000.

90116-GF8-000

$3.58

27

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.58

28

SCREW, PAN (3X12) This part replaces 93500-03012.

93500-03012-0A

$1.49

28

SCREW, PAN (3X12)

93500-03012-0A

$1.49

29

NUT, HEX. (5MM)

94001-05000-0S

$2.74

30

WASHER, SPRING (3MM)

94111-03000

$1.49

31

WASHER, SPRING (8MM)

94111-08000

$1.49
