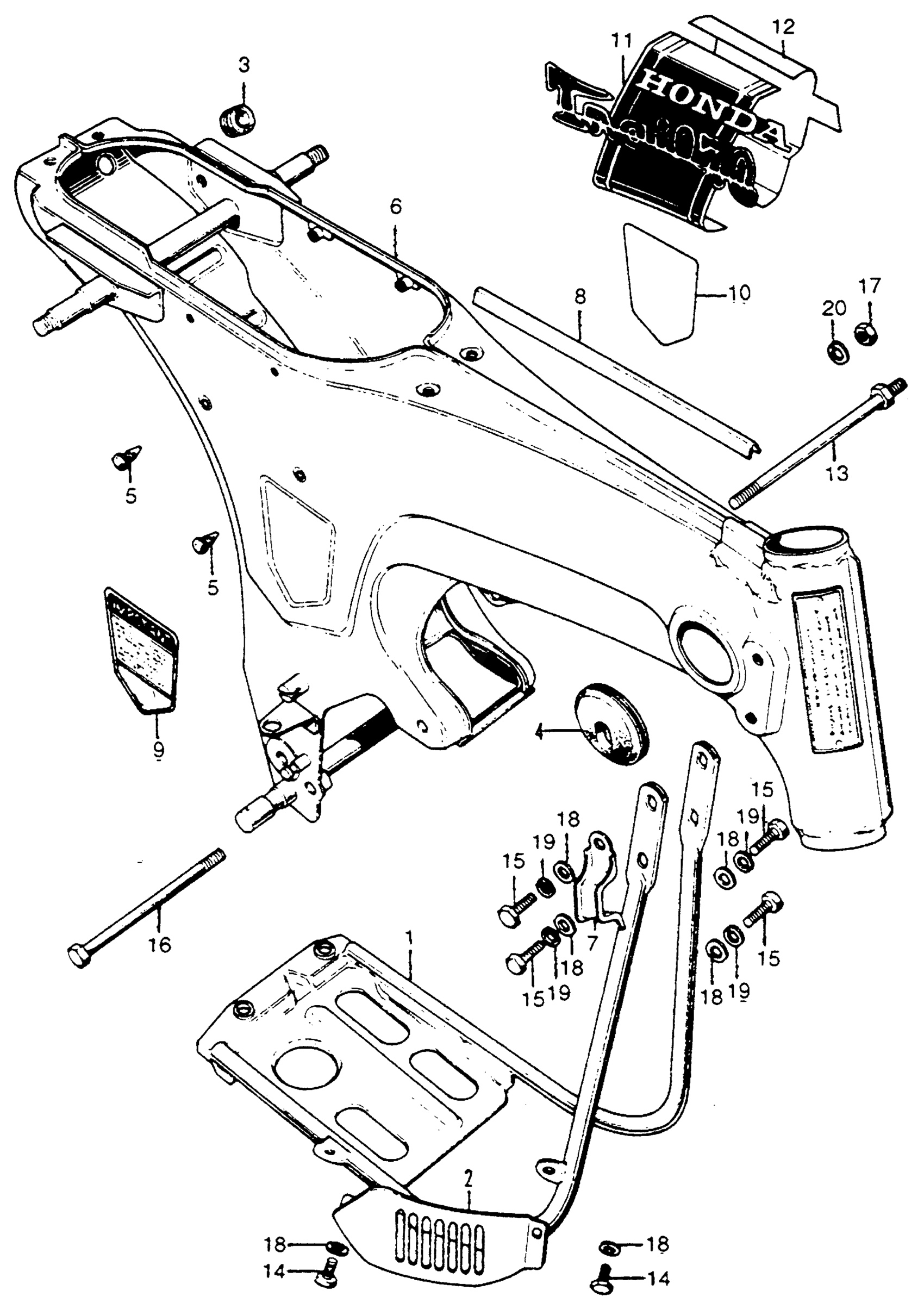

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 FRAME + CRANKCASE PROTECTOR Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11911-098-671

Unavailable

2

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11912-098-671

Unavailable

3

GROMMET, WIRE HARNESS

32983-011-000

$3.31

4

GROMMET, WIRE HARNESS

32984-098-000

$5.73

5

PLUG, HEAD PIPE

50049-046-000

$2.03

6

FRAME *PB2C* (CANDY BLUE GREEN) This part replaces 50100-098-672AZ.

50100-098-673AZ

Unavailable

6

FRAME *YR1C* (CANDY TOPAZ ORANGE)

50100-098-672DD

Unavailable

6

FRAME *G2C* This part replaces 50100-098-672DF.

50100-098-673DF

Unavailable

6

FRAME This part replaces 50100-098-672Z.

50100-098-673Z

Unavailable

6

FRAME *PB2C* (CANDY BLUE GREEN)

50100-098-673AZ

Unavailable

6

FRAME

50100-098-673Z

Unavailable

7

CLIP, WIRE HARNESS

50191-098-670

$4.33

8

MOLDING, FRAME

50305-098-000

$15.66

9

EMBLEM, R. FRAME SIDE (NOT AVAILABLE) | Use from Frame SN 150001

87122-098-771

Unavailable

10

EMBLEM, L. FRAME SIDE (NOT AVAILABLE)

87123-098-770

Unavailable

11

EMBLEM, R. FR. (NOT AVAILABLE)

87124-098-770

Unavailable

12

EMBLEM, L. FR. (NOT AVAILABLE)

87125-098-770

Unavailable

13

BOLT A, RR. ENGINE SUPPORT

90112-003-000

$8.18

14

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

14

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (8X115) (NOT AVAILABLE) This part replaces 90052-723-750.

92200-08115-0A

Unavailable

16

BOLT, HEX. (8X115) (NOT AVAILABLE) This part replaces 92000-08115.

92200-08115-0A

Unavailable

16

BOLT, HEX. (8X115) (NOT AVAILABLE) This part replaces 92000-08115-0A.

92200-08115-0A

Unavailable

17

NUT, HEX. (8MM)

94030-08000

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49
