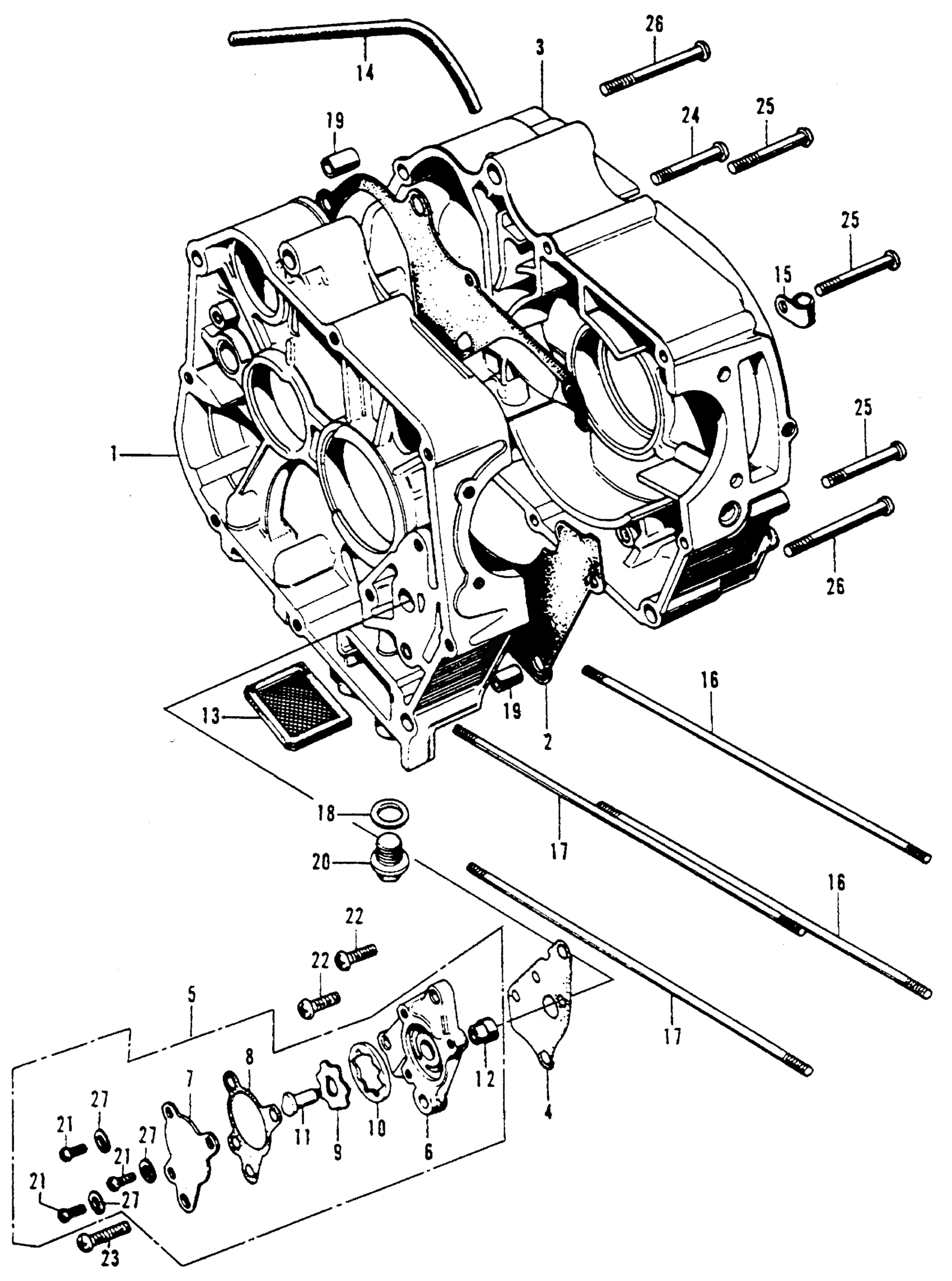

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-045-010

Unavailable

2

GASKET, CRANKCASE

11191-035-070

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-045-000.

11191-035-070

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-045-306.

11191-035-070

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE)

11200-045-050

Unavailable

4

GASKET, OIL PUMP BODY

15119-035-020

Unavailable

5

PUMP ASSY., OIL | Use up to Engine SN 157011

15300-035-000

Unavailable

5

PUMP ASSY., OIL (NOT AVAILABLE) | Use from Engine SN 157012

15300-118-670

Unavailable

6

BODY, OIL PUMP (NOT AVAILABLE) | Use up to Engine SN 157011

15311-035-013

Unavailable

6

BODY, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 157012

15311-118-671

Unavailable

7

COVER, OIL PUMP (NOT AVAILABLE)

15321-035-000

Unavailable

8

GASKET, OIL PUMP COVER This part replaces 15329-035-000.

15329-035-003

$4.24

8

GASKET, OIL PUMP COVER

15329-035-003

$4.24

9

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE) | Use up to Engine SN 157011 This part replaces 15331-035-000.

15331-035-004

Unavailable

9

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE) | Use up to Engine SN 157011

15331-035-004

Unavailable

9

ROTOR, OIL PUMP (INNER) | Use from Engine SN 157012 This part replaces 15331-053-010.

15331-053-014

Unavailable

9

ROTOR, OIL PUMP (INNER) | Use from Engine SN 157012

15331-053-014

Unavailable

10

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) | Use up to Engine SN 157011 This part replaces 15332-035-000.

15332-035-004

Unavailable

10

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) | Use up to Engine SN 157011

15332-035-004

Unavailable

10

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) | Use from Engine SN 157012 This part replaces 15332-053-010.

15332-053-014

Unavailable

10

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) | Use from Engine SN 157012

15332-053-014

Unavailable

11

DRIVESHAFT, OIL PUMP (NOT AVAILABLE) This part replaces 15382-035-000.

15382-035-003

Unavailable

11

DRIVESHAFT, OIL PUMP (NOT AVAILABLE)

15382-035-003

Unavailable

12

PIN, OIL PUMP KNOCK | Use up to Engine SN 157011 This part replaces 15383-035-000.

15383-035-003

Unavailable

12

PIN, OIL PUMP KNOCK | Use up to Engine SN 157011

15383-035-003

Unavailable

12

PIN, OIL PUMP KNOCK | Use from Engine SN 157012

15383-118-671

Unavailable

13

SCREEN, OIL FILTER

15421-035-010

$3.80

14

TUBE (5.5X350) This part replaces 15761-045-000.

95001-55000-40

Unavailable

14

TUBE (5.5X350) This part replaces 95001-50000.

95001-55000-40

Unavailable

14

TUBE (5.5X350) This part replaces 95001-50000-90.

95001-55000-40

Unavailable

14

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

15

CLAMP, OVERFLOW TUBE | Use up to Engine SN 150720

16236-045-000

Unavailable

15

CLAMP, OVERFLOW PIPE | Use from Engine SN 150721

16236-045-010

$4.49

16

BOLT A, CYLINDER STUD

90031-035-010

$5.46

17

BOLT B, CYLINDER STUD

90032-035-000

$5.46

18

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

18

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

19

PIN A, DOWEL (10X14) This part replaces 90704-035-000.

94301-10140

$2.28

19

PIN A, DOWEL (10X14)

94301-10140

$2.28

20

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

21

SCREW, PAN (5X10) This part replaces 93500-05010.

93500-05010-0A

$1.49

21

SCREW, PAN (5X10)

93500-05010-0A

$1.49

21

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

21

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

22

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

22

SCREW, PAN (6X16)

93500-06016-0A

$1.49

23

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

23

SCREW, PAN (6X20)

93500-06020-0A

$1.49

24

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

24

SCREW, PAN (6X50)

93500-06050-0A

$1.49

25

SCREW, PAN (6X60)

93500-06060-0A

$1.49

25

SCREW, PAN (6X60) This part replaces 93500-06063.

93500-06060-0A

$1.49

26

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

26

SCREW, PAN (6X65)

93500-06065-0A

$1.53

27

WASHER, SPRING (5MM)

94111-05000

$1.49

27

WASHER, SPRING (5MM)

94111-05800

$1.49
