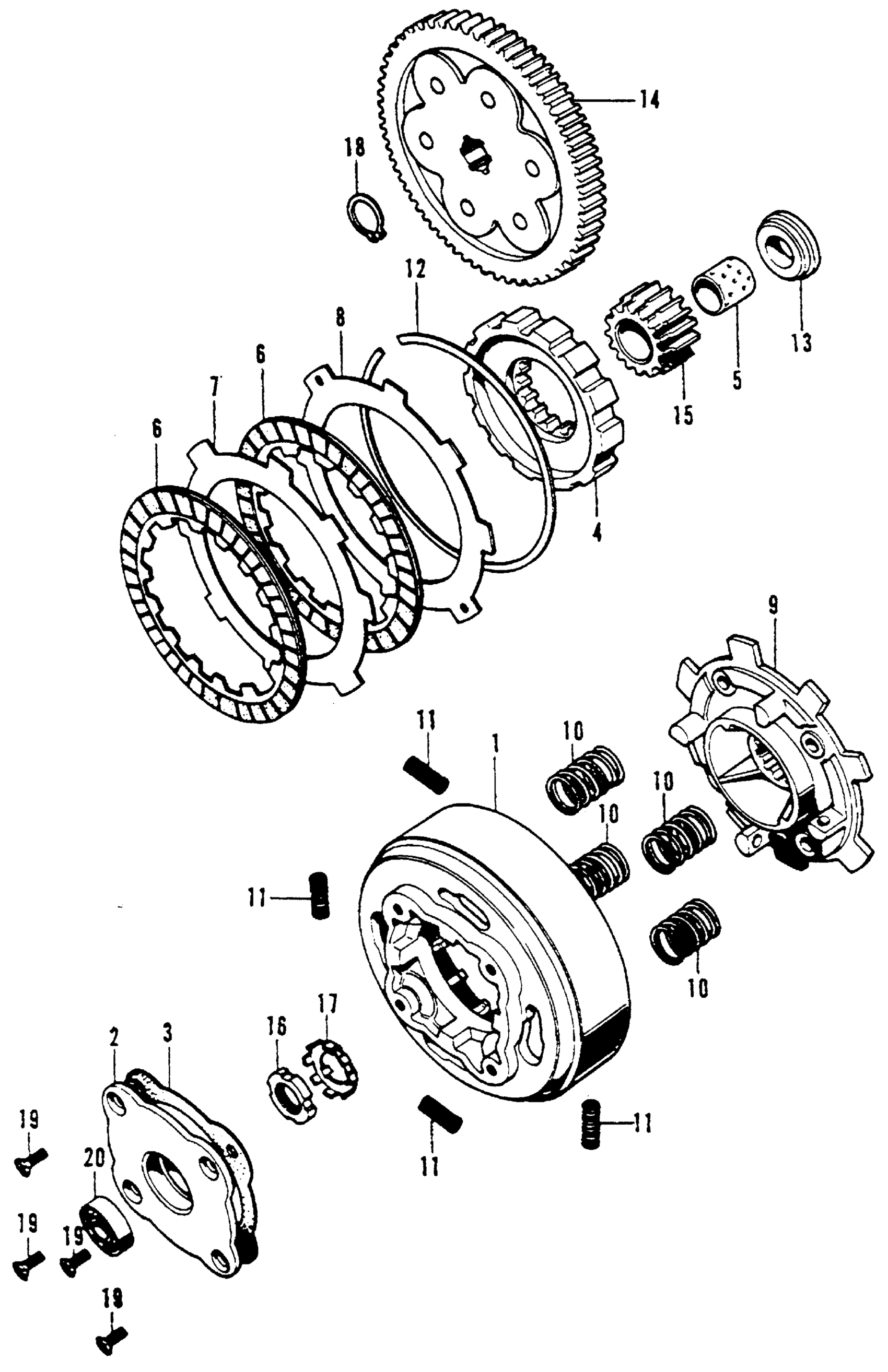

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22101-035-010

Unavailable

2

COVER, CLUTCH (OUTER)

22111-065-000

Unavailable

3

GASKET, CLUTCH COVER This part replaces 22119-035-000.

22119-165-951

Unavailable

3

GASKET, CLUTCH COVER This part replaces 22119-035-306.

22119-165-951

Unavailable

3

GASKET, CLUTCH COVER This part replaces 22119-165-950.

22119-165-951

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE)

22120-035-040

Unavailable

5

GUIDE, CLUTCH CENTER This part replaces 22131-035-020.

22131-035-030

$20.39

5

GUIDE, CLUTCH CENTER

22131-035-030

$20.39

6

DISK, CLUTCH FRICTION This part replaces 22201-040-000.

22201-165-951

$14.21

6

DISK, CLUTCH FRICTION This part replaces 22201-087-306.

22201-165-951

$14.21

6

DISK, CLUTCH FRICTION This part replaces 22201-088-000.

22201-165-951

$14.21

6

DISK, CLUTCH FRICTION

22201-165-951

$14.21

7

PLATE C, CLUTCH This part replaces 22311-035-000.

22331-041-000

Unavailable

7

PLATE C, CLUTCH

22331-041-000

Unavailable

8

PLATE C, CLUTCH This part replaces 22311-035-000.

22331-041-000

Unavailable

8

PLATE B, CLUTCH

22321-046-020

$9.83

8

PLATE B, CLUTCH This part replaces 22331-035-000.

22321-046-020

$9.83

8

PLATE C, CLUTCH

22331-041-000

Unavailable

9

PLATE, DRIVE (NOT AVAILABLE)

22351-035-020

Unavailable

10

SPRING, CLUTCH

22401-088-000

Unavailable

11

SPRING, CLUTCH DAMPER

22421-035-000

$4.15

12

SET-RING (101.5MM)

22901-001-000

$4.02

13

COLLAR (17MM)

22911-GB4-680

$6.74

13

COLLAR (17MM) This part replaces 22911-035-010.

22911-GB4-680

$6.74

14

GEAR, PRIMARY DRIVEN (67T)

23110-GCF-670

$123.47

14

GEAR, PRIMARY DRIVEN (67T) This part replaces 23110-087-000.

23110-GCF-670

$123.47

14

GEAR, PRIMARY DRIVEN (67T) This part replaces 23110-098-740.

23110-GCF-670

$123.47

15

GEAR, PRIMARY DRIVE (18T)

23120-036-010

Unavailable

16

NUT, LOCK (14MM) This part replaces 90231-087-000.

90231-087-010

$3.80

16

NUT, LOCK (14MM)

90231-087-010

$3.80

17

WASHER, LOCK (14MM)

90431-086-000

$3.03

17

WASHER, LOCK (14MM) This part replaces 90431-087-000.

90431-086-000

$3.03

18

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

19

SCREW, FLAT (5X10) (SOURCE: VINTAGE PARTS INC.)

93600-05010

Unavailable

20

BEARING, RADIAL BALL (6000) This part replaces 96100-60000.

96100-60000-00

$8.13

20

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
