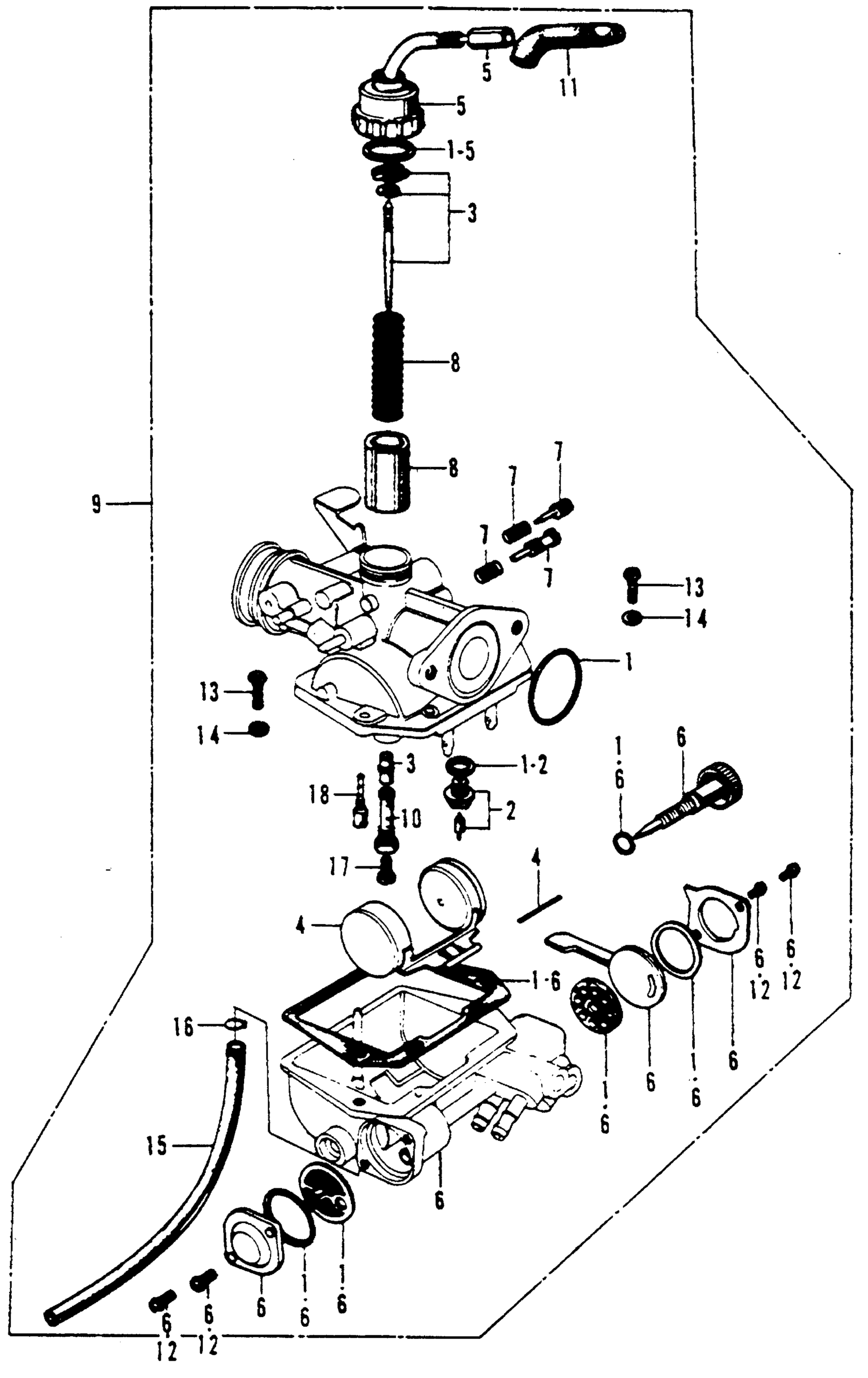

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 CARBURETOR SET Diagram

#

Description
Price

1

GASKET SET

16010-098-305

Unavailable

1

GASKET SET This part replaces 16010-098-670.

16010-098-305

Unavailable

2

VALVE SET, FLOAT

16011-051-004

$16.40

2

VALVE SET, FLOAT This part replaces 16011-098-004.

16011-051-004

$16.40

2

VALVE SET, FLOAT This part replaces 16011-134-004.

16011-051-004

$16.40

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-098-670

Unavailable

4

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

4

FLOAT SET

16013-116-700

$28.61

4

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

5

TOP SET (NOT AVAILABLE)

16014-045-024

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-045-710

Unavailable

7

SCREW SET A

16016-046-004

Unavailable

8

VALVE SET A, THROTTLE (NOT AVAILABLE)

16022-046-004

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 150720

16100-098-720

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 150721 This part replaces 16100-098-721.

16100-098-722

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 150721

16100-098-722

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 150721 This part replaces 16100-098-723.

16100-098-722

Unavailable

10

HOLDER, NEEDLE JET (NOT AVAILABLE)

16176-098-720

Unavailable

11

CAP, RUBBER (NOT AVAILABLE)

16194-045-741

Unavailable

12

SCREW, PAN (3X6) (NOT AVAILABLE) This part replaces 93500-03006.

93500-03006-0B

Unavailable

13

SCREW, PAN (4X12) This part replaces 93500-04012.

93500-04012-0A

$1.49

13

SCREW, PAN (4X12)

93500-04012-0A

$1.49

13

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

13

SCREW, PAN (4X12) This part replaces 93500-04012-10.

93500-04012-0A

$1.49

14

WASHER, SPRING (4MM)

94111-04000

$1.49

15

BULK HOSE, FUEL (3.5X3000) (3.5X240)

95001-35003-60M

$20.85

16

CLIP, TUBE (B7)

95002-02070

$1.80

17

JET, MAIN (#60) (NOT AVAILABLE)

99114-076-0600

Unavailable

18

JET, SLOW (#35) This part replaces 99124-098-0350.

99124-217-0351

Unavailable

18

JET, SLOW (#35)

99124-217-0351

Unavailable
