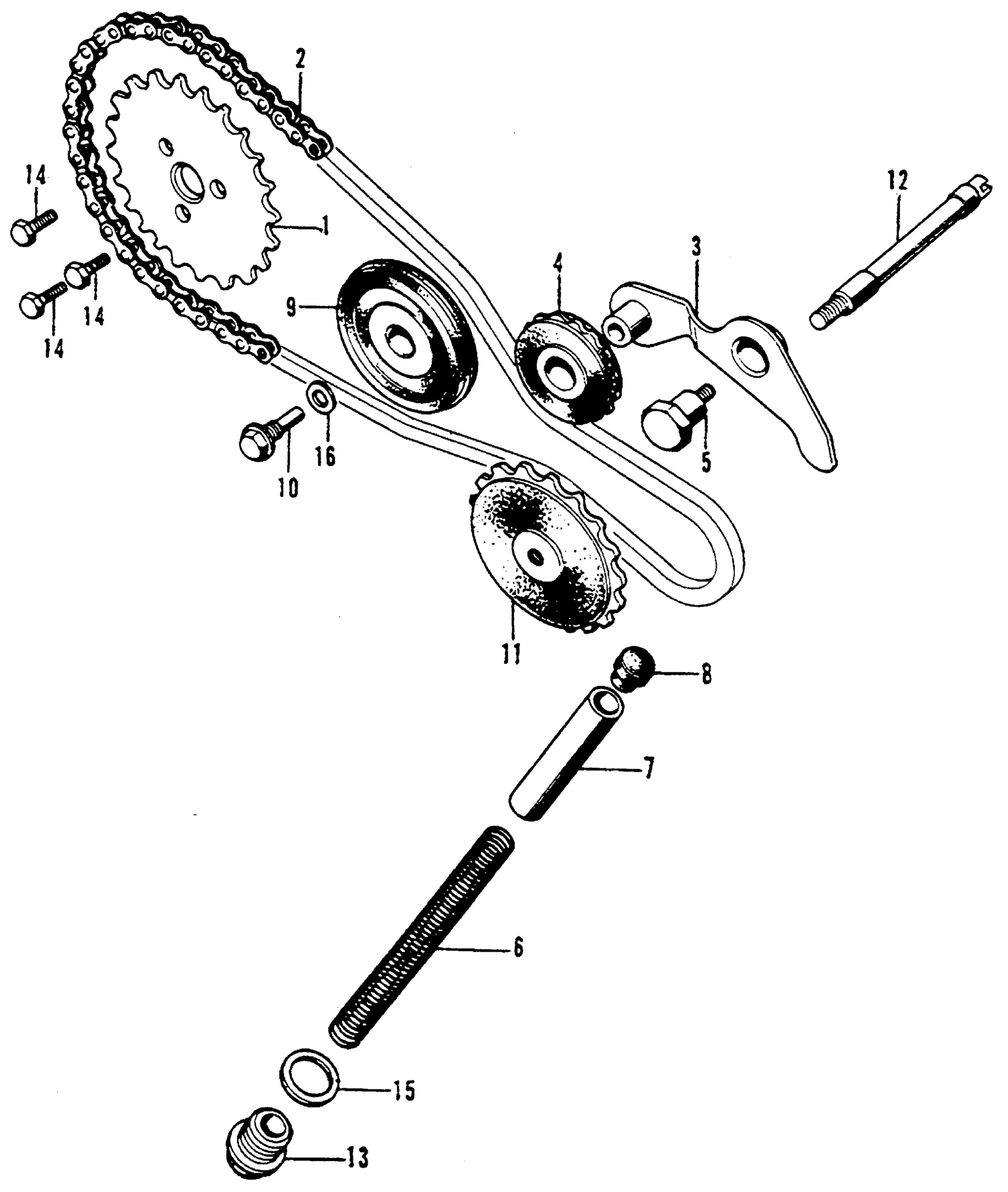

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 CAM CHAIN TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (28T) This part replaces 14321-035-003.

14321-035-700

$13.85

1

SPROCKET, CAM (28T) This part replaces 14321-035-010.

14321-035-700

$13.85

1

SPROCKET, CAM (28T)

14321-035-700

$13.85

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-000.

14401-115-010

$26.88

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-003.

14401-115-010

$26.88

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-005.

14401-115-010

$26.88

3

ARM, CAM CHAIN TENSIONER This part replaces 14500-035-010.

14500-035-020

$25.17

3

ARM, CAM CHAIN TENSIONER

14500-035-020

$25.17

4

ROLLER, CAM CHAIN TENSIONER This part replaces 14502-035-010.

14502-086-000

$14.67

4

ROLLER, CAM CHAIN TENSIONER

14502-086-000

$14.67

5

PIVOT, CAM CHAIN TENSIONER

14531-035-000

$3.52

6

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-035-010

Unavailable

7

ROD, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14551-035-020

Unavailable

8

RUBBER, CAM CHAIN TENSIONER PUSH ROD HEAD

14566-035-000

Unavailable

9

ROLLER, CAM CHAIN GUIDE This part replaces 14610-035-010.

14610-086-010

$18.16

9

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-000.

14610-086-010

$18.16

9

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-003.

14610-086-010

$18.16

9

ROLLER, CAM CHAIN GUIDE

14610-086-010

$18.16

9

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-013.

14610-086-010

$18.16

10

PIN, CAM CHAIN GUIDE ROLLER This part replaces 14615-035-000.

14615-035-010

$2.58

10

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.58

11

SPROCKET, CAM CHAIN GUIDE (25T) This part replaces 14670-035-030.

14670-GBJ-M30

$20.95

12

SPINDLE, CAM CHAIN GUIDE SPROCKET

14675-035-060

Unavailable

13

BOLT, SEALING (14MM)

90081-035-000

$3.95

14

BOLT, KNOCK (5MM)

90083-035-010

$1.83

15

WASHER, SEALING (14MM)

90441-035-000

$2.17

16

WASHER (8MM)

90481-035-000

$1.70
