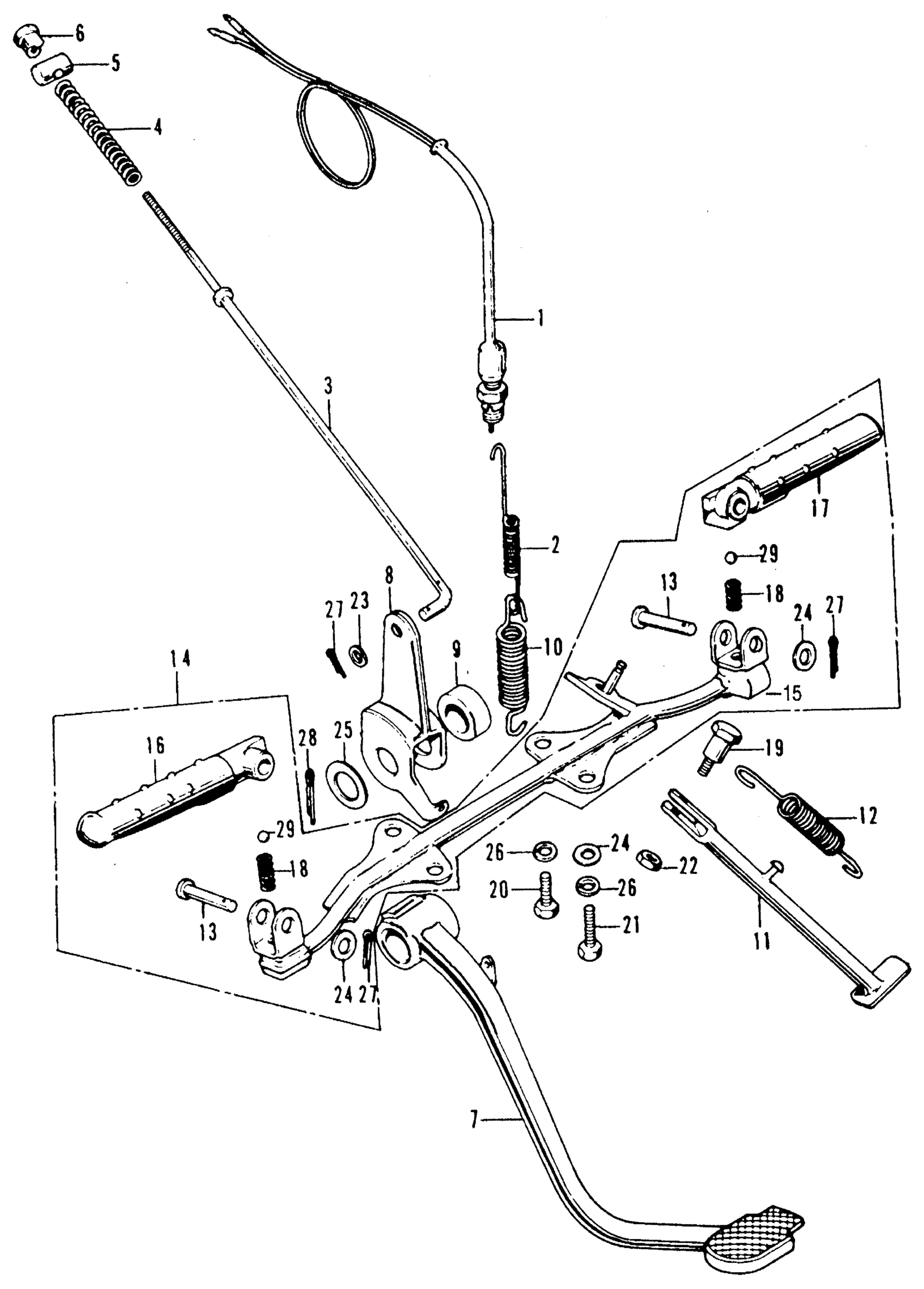

Honda CT70HA MOTORCYCLE, JPN, VIN# CT70H-100001 BRAKE PEDAL + SIDE STAND + STEP Diagram

#

Description
Price

1

SWITCH ASSY., STOP This part replaces 35350-051-000.

35350-098-005

Unavailable

1

SWITCH ASSY., STOP This part replaces 35350-098-003.

35350-098-005

Unavailable

1

SWITCH ASSY., STOP

35350-098-005

Unavailable

2

SPRING, STOP SWITCH

35357-046-000

$2.00

3

ROD, RR. BRAKE This part replaces 43450-098-770.

43451-098-770

Unavailable

3

ROD, RR. BRAKE

43451-098-770

Unavailable

4

SPRING A, BRAKE ROD This part replaces 43472-001-000.

95014-73100

$1.19

4

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.19

4

SPRING A, BRAKE ROD

95014-73100

$1.19

4

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.19

5

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.85

5

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.85

5

JOINT A, BRAKE ARM

95015-31001

$1.85

6

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.54

6

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.54

7

PEDAL, BRAKE (NOT AVAILABLE) This part replaces 46500-098-672.

46500-098-970

Unavailable

7

PEDAL, BRAKE (NOT AVAILABLE)

46500-098-970

Unavailable

8

ARM, BRAKE PEDAL MIDDLE (NOT AVAILABLE)

46510-098-670

Unavailable

9

COLLAR, BRAKE PEDAL SETTING (NOT AVAILABLE)

46513-098-770

Unavailable

10

SPRING, BRAKE PEDAL This part replaces 46514-041-000.

46514-086-720

$6.56

10

SPRING, BRAKE PEDAL

46514-086-720

$6.56

11

BAR, SIDE STAND (NOT AVAILABLE) This part replaces 50530-098-670.

50530-098-970

Unavailable

11

BAR, SIDE STAND (NOT AVAILABLE)

50530-098-970

Unavailable

12

SPRING D, SIDE STAND This part replaces 50542-286-000.

95014-72402

$2.80

12

SPRING D, SIDE STAND This part replaces 95014-72400.

95014-72402

$2.80

12

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.80

12

SPRING D, SIDE STAND

95014-72402

$2.80

13

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.06

13

PIN, STEP BAR JOINT

50603-033-010

$3.06

14

BAR ASSY., STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-098-670B

Unavailable

15

BAR ASSY., STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-098-670B

Unavailable

15

BAR ASSY., STEP *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50611-098-670B.

50610-098-670B

Unavailable

16

ARM, R. STEP *NH1* (BLACK) (NOT AVAILABLE)

50615-098-000B

Unavailable

17

ARM, L. STEP *NH1* (BLACK) (NOT AVAILABLE)

50616-098-000B

Unavailable

18

SPRING, STEP ARM

50619-098-000

$2.37

19

BOLT, SIDE STAND PIVOT

90108-223-000

$4.89

20

BOLT, HEX. (8X20) This part replaces 90104-YB1-003.

92101-08020-0A

Unavailable

20

BOLT, HEX. (8X20) This part replaces 92000-08020.

92101-08020-0A

Unavailable

20

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

Unavailable

20

BOLT, HEX. (8X20)

92101-08020-0A

Unavailable

21

BOLT, HEX. (8X25) This part replaces 92000-08025.

92101-08025-0A

$1.74

21

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

21

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

22

NUT, HEX. (10MM) This part replaces 94002-10000.

94002-10000-0S

$4.20

22

NUT, HEX. (10MM)

94002-10000-0S

$4.20

22

NUT, HEX. (10MM) This part replaces 94002-10000-08.

94002-10000-0S

$4.20

23

WASHER, PLAIN (5MM)

94101-05000

$0.91

24

WASHER, PLAIN (8MM)

94101-08000

Unavailable

25

WASHER, PLAIN (14MM)

94101-14000

$1.04

26

WASHER, SPRING (8MM)

94111-08000

Unavailable

27

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.01

27

PIN, COTTER (1.6X25)

94201-16250

$1.01

28

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.01

28

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.01

28

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.01

28

PIN, COTTER (3.0X45)

94201-30450

$1.01

29

BALL, STEEL (#10) (5/16)

96211-10000

$1.43
