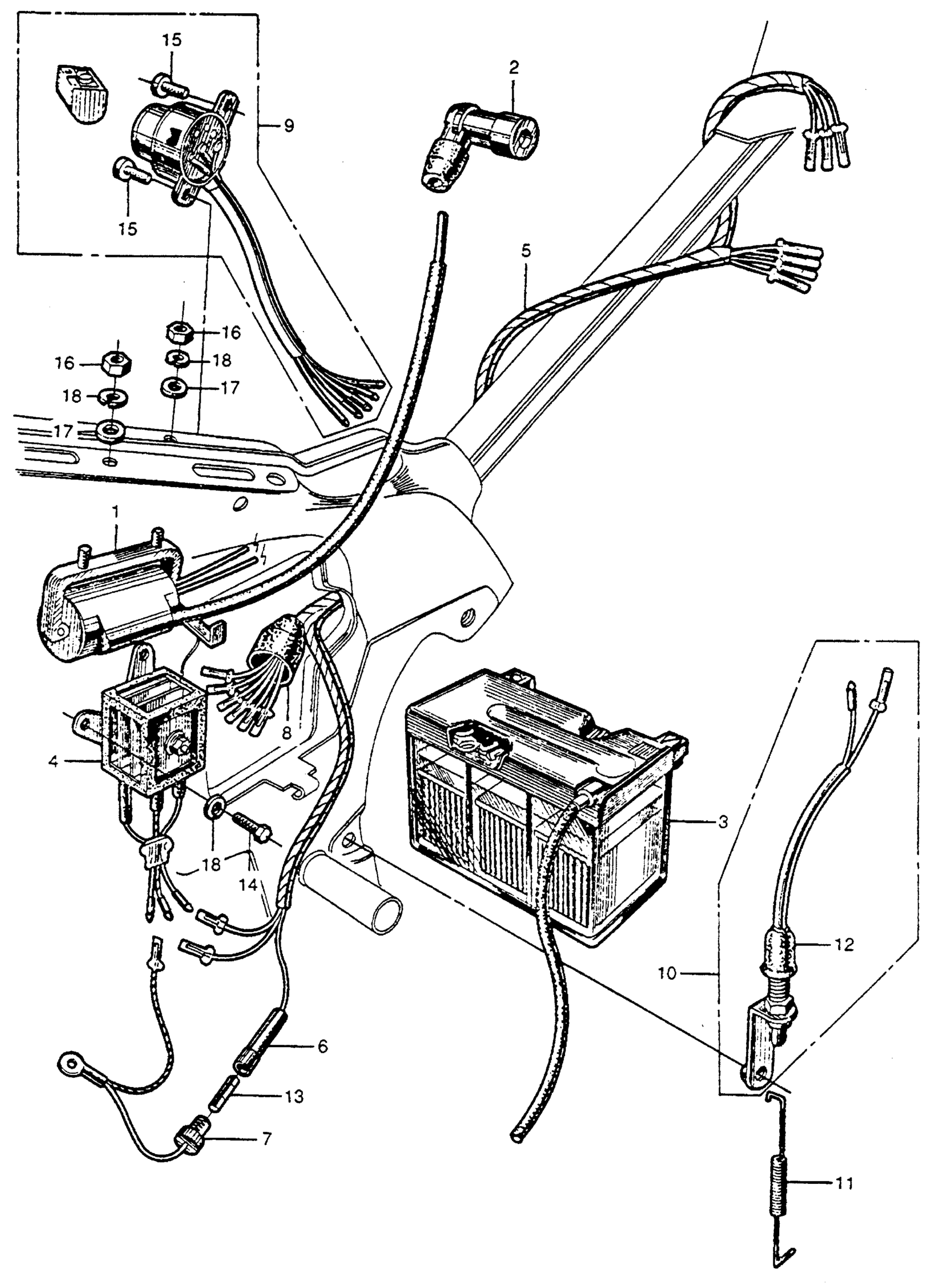

Honda CT200A MOTORCYCLE, JPN, VIN# CT200-100001 WIRE HARNESS Diagram

#

Description
Price

1

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-003-004.

30500-039-405

Unavailable

1

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-033-000.

30500-039-405

Unavailable

1

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-039-004.

30500-039-405

Unavailable

1

COIL ASSY., IGNITION (NOT AVAILABLE)

30500-039-405

Unavailable

2

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

2

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

2

CAP ASSY. This part replaces 30700-259-600.

30700-MG7-003

$14.30

3

BATTERY (6V-5.5A) | Use from Frame SN 121366 This part replaces 31500-001-810.

31500-102-772AH

Unavailable

3

BATTERY ASSY. (NOT AVAILABLE) | Use up to Frame SN 121365 This part replaces 31500-033-000.

31500-111-971

Unavailable

3

BATTERY (6V-5.5A) | Use from Frame SN 121366 This part replaces 31500-046-671.

31500-102-772AH

Unavailable

3

BATTERY (6V-5.5A) | Use from Frame SN 121366 This part replaces 31500-053-000.

31500-102-772AH

Unavailable

3

BATTERY ASSY. (NOT AVAILABLE) | Use up to Frame SN 121365 This part replaces 31500-089-671.

31500-111-971

Unavailable

3

BATTERY (6V-5.5A) | Use from Frame SN 121366 This part replaces 31500-102-701.

31500-102-772AH

Unavailable

3

BATTERY (6V-5.5A) | Use from Frame SN 121366 This part replaces 31500-102-772.

31500-102-772AH

Unavailable

3

BATTERY ASSY. (NOT AVAILABLE) | Use up to Frame SN 121365

31500-111-971

Unavailable

3

BATTERY (6V-5.5A) | Use from Frame SN 121366 This part replaces 31500-128-671.

31500-102-772AH

Unavailable

4

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) This part replaces 31700-033-000.

31700-033-008

Unavailable

4

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE)

31700-033-008

Unavailable

5

WIRE HARNESS This part replaces 32100-033-000.

32100-033-010

Unavailable

5

WIRE HARNESS

32100-033-010

Unavailable

6

CONNECTOR B, FUSE (NOT AVAILABLE)

32106-253-010

Unavailable

7

CONNECTOR A, FUSE (NOT AVAILABLE)

32112-253-010

Unavailable

8

GROMMET, WIRE HARNESS

32983-011-000

$3.31

9

SWITCH, HANDLE LOCK (NOT AVAILABLE)

35010-001-010

Unavailable

9

SWITCH KIT, COMBINATION (NOT AVAILABLE)

35010-033-000

Unavailable

9

SWITCH, HANDLE LOCK (NOT AVAILABLE) This part replaces 53600-001-020.

35010-001-010

Unavailable

10

SWITCH ASSY., STOP (NOT AVAILABLE)

35350-033-000

Unavailable

11

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-033-000

Unavailable

12

COVER, STOP SWITCH TERMINAL (NOT AVAILABLE)

35361-011-000

Unavailable

13

FUSE A (10A) This part replaces 38201-030-000.

98200-11000

$1.80

13

FUSE A (10A)

98200-11000

$1.80

14

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

14

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

15

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

15

SCREW, PAN (6X8)

93500-06008

$1.49

15

SCREW, PAN (6X8)

93500-06008-0A

$1.49

15

SCREW, PAN (6X8)

93500-06008-0H

$1.49

15

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49
