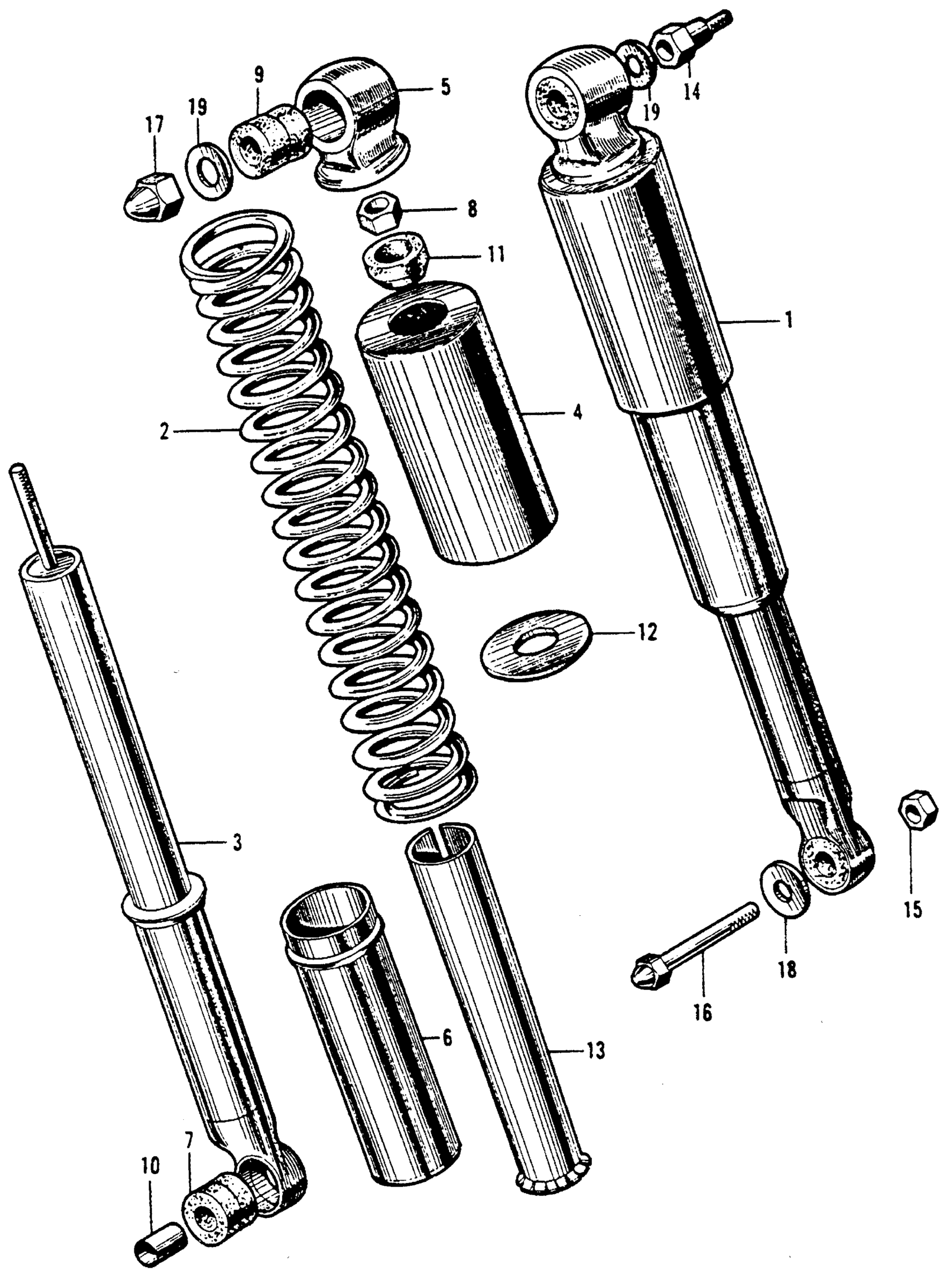

Honda CT200A MOTORCYCLE, JPN, VIN# CT200-100001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. *R2* (SCARLET) (NOT AVAILABLE)

52400-033-000C

Unavailable

1

SHOCK ABSORBER ASSY., RR. *Y16L* (BRIGHT YELLOW) (NOT AVAILABLE)

52400-033-000XB

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-033-000

Unavailable

3

METAL, SHOCK ABSORBER (LOWER) (NOT AVAILABLE)

52420-033-000

Unavailable

4

CASE, RR. SHOCK ABSORBER (UPPER) *R2* (SCARLET) (NOT AVAILABLE)

52460-011-000C

Unavailable

5

METAL, RR. SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52410-033-000

Unavailable

6

CASE, RR. SHOCK ABSORBER (LOWER) (NOT AVAILABLE)

52465-001-040

Unavailable

7

BUSH, RR. SHOCK ABSORBER RUBBER

52476-001-020

$4.92

8

NUT, RR. SHOCK ABSORBER LOCK (UPPER) (NOT AVAILABLE)

52481-033-000

Unavailable

9

BUSH, SHOCK RUBBER This part replaces 52485-001-010.

52495-098-000

Unavailable

9

BUSH, SHOCK RUBBER

52495-098-000

Unavailable

10

COLLAR, SWINGARM RUBBER BUSH

52486-001-000

$4.85

11

RUBBER, RR. SHOCK ABSORBER STOPPER (NOT AVAILABLE)

52489-033-000

Unavailable

12

WASHER (24MM) (NOT AVAILABLE)

52492-011-000

Unavailable

13

GUIDE, RR. SHOCK ABSORBER SPRING

52409-011-000

Unavailable

14

SCREW, MUFFLER CLAMP (NOT AVAILABLE)

90165-001-810

Unavailable

15

NUT, RR. SHOCK ABSORBER MOUNT (LOWER) (NOT AVAILABLE)

90324-001-810

Unavailable

16

BOLT, CAP (10X42) (NOT AVAILABLE)

92500-10042-02

Unavailable

17

NUT, CAP (12MM) (NOT AVAILABLE)

94021-12020

Unavailable

18

WASHER, PLAIN (10MM)

94101-10000

$1.49

19

WASHER, PLAIN (12MM)

94101-12000

$1.49
