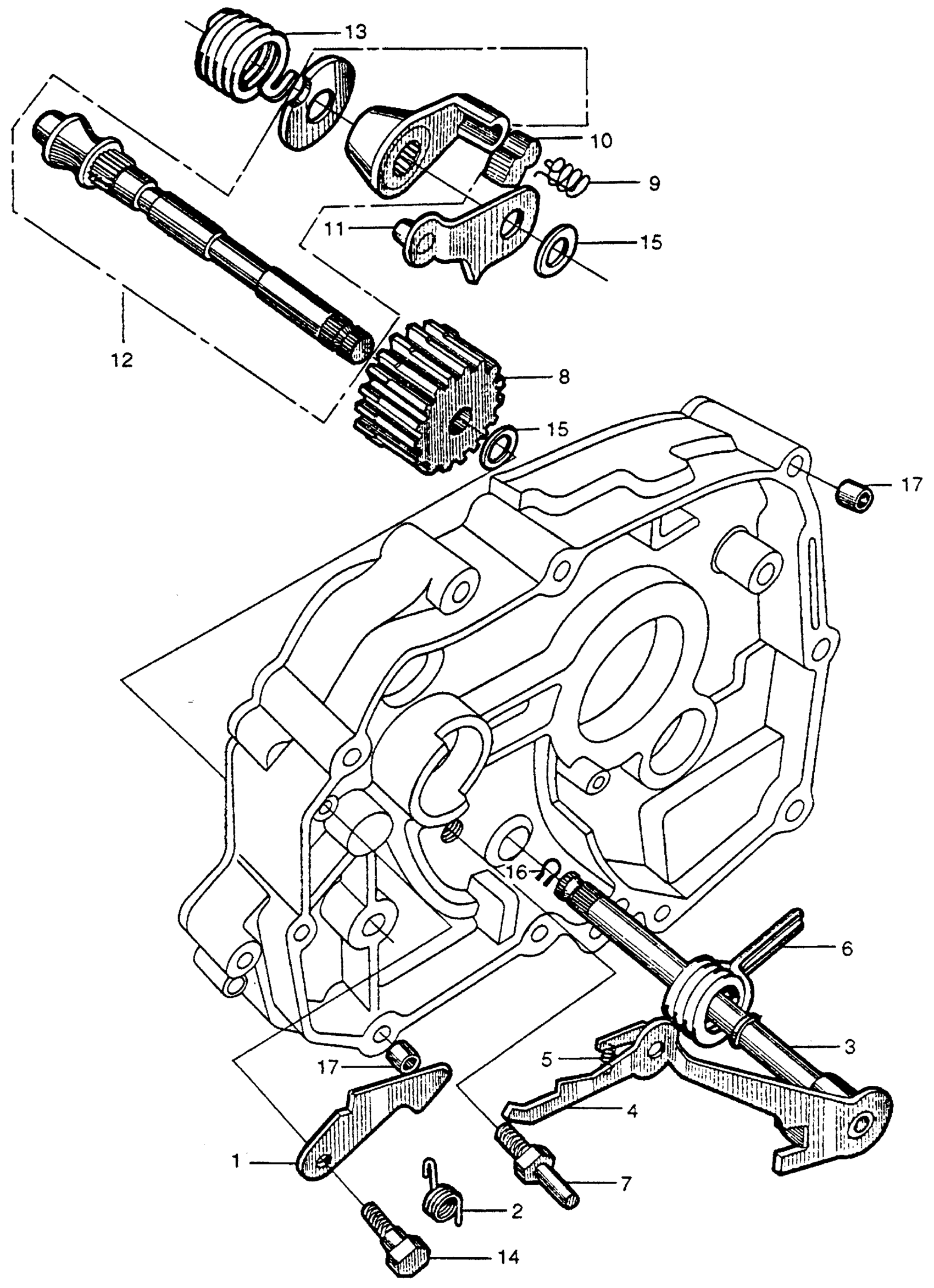

Honda CT200A MOTORCYCLE, JPN, VIN# CT200-100001 KICK STARTER Diagram

WASHER (12MM) (NOT AVAILABLE) | Use up to Engine SN 152415

90482-001-000

Unavailable

WASHER (12MM) (NOT AVAILABLE) | Use from Engine SN 152416

90482-001-010

Unavailable

STOPPER, SHIFT DRUM (NOT AVAILABLE)

24431-030-000

Unavailable

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-030-000

Unavailable

SPINDLE, GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 152415

24610-033-000

Unavailable

SPINDLE, GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 152416

24610-040-010

$46.30

ARM, GEARSHIFT (NOT AVAILABLE)

24630-033-000

Unavailable

SPRING, GEARSHIFT ARM This part replaces 24641-001-000.

24641-041-000

$2.90

SPRING, GEARSHIFT ARM

24641-041-000

$2.90

SPRING, GEARSHIFT RETURN This part replaces 24651-033-000.

24651-121-710

Unavailable

SPRING, GEARSHIFT RETURN This part replaces 24651-033-010.

24651-121-710

Unavailable

SPRING, GEARSHIFT RETURN

24651-121-710

Unavailable

PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)

24652-023-000

Unavailable

PINION, KICK STARTER

28211-030-000

Unavailable

SPRING, KICK STARTER PAWL (NOT AVAILABLE)

28214-028-000

Unavailable

SPRING, KICK STARTER PAWL (NOT AVAILABLE) This part replaces 28214-030-000.

28214-028-000

Unavailable

PAWL, KICK STARTER RATCHET (NOT AVAILABLE)

28222-030-000

Unavailable

GUIDE, KICK STARTER RATCHET (NOT AVAILABLE)

28224-030-000

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE)

28251-030-000

Unavailable

SPRING, KICK STARTER (NOT AVAILABLE)

28281-030-000

Unavailable

PIVOT, SHIFT DRUM STOPPER ARM (NOT AVAILABLE)

90023-001-010

Unavailable

WASHER, THRUST (14MM)

90451-001-000

$3.67

CIRCLIP (OUTER) (12MM) This part replaces 90603-001-000.

94510-12000

$1.78

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

PIN A, DOWEL (10X14)

94301-10140

$2.28
