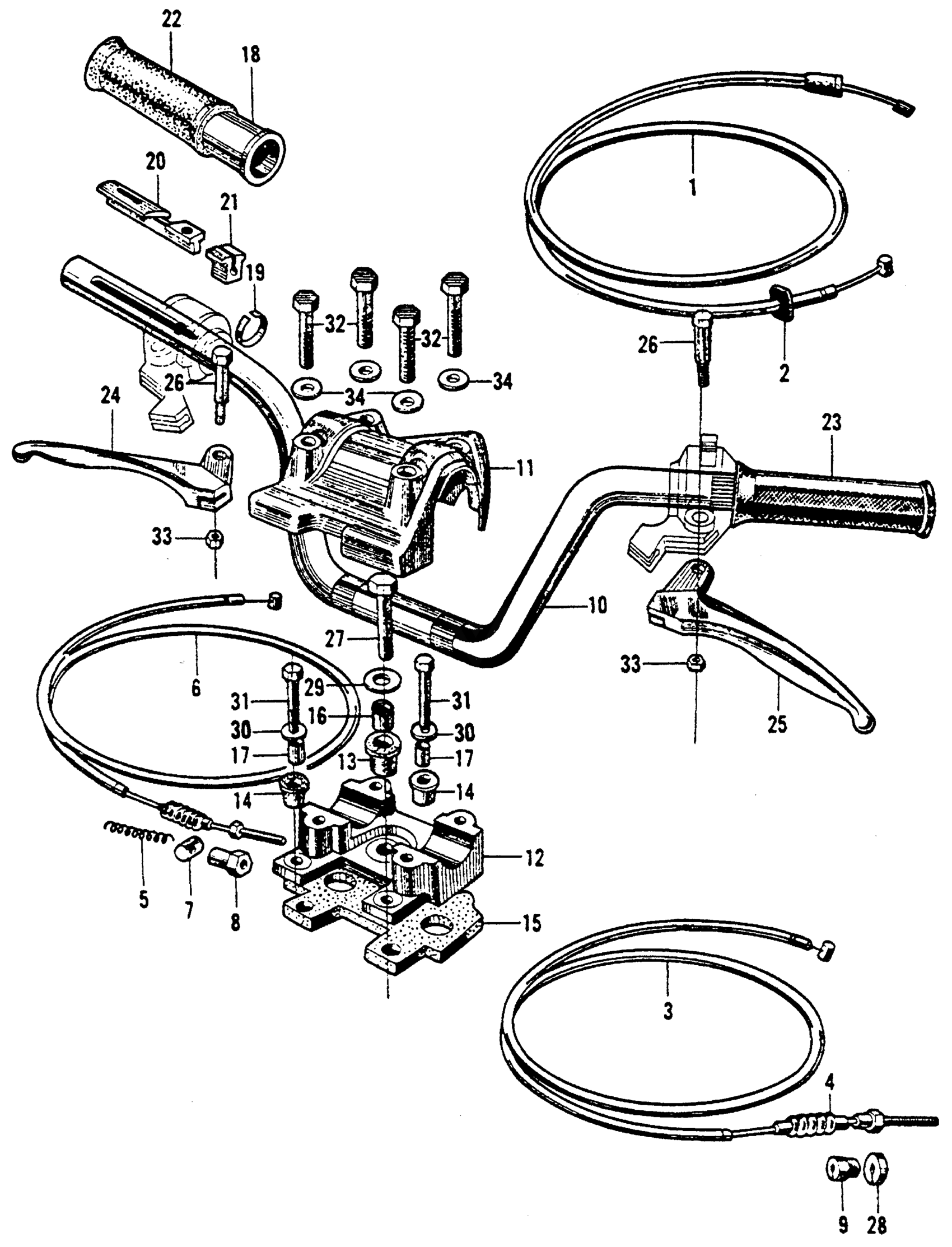

Honda CT200A MOTORCYCLE, JPN, VIN# CT200-100001 HANDLEBAR Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE) | Use up to Frame SN 147645 This part replaces 17910-033-000.

17910-033-010

Unavailable

1

CABLE, THROTTLE (NOT AVAILABLE) | Use from Frame SN 147646

17910-033-010

Unavailable

2

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

3

CABLE, RR. BRAKE (NOT AVAILABLE)

43460-033-000

Unavailable

4

BOLT, RR. BRAKE CABLE ADJUSTING (NOT AVAILABLE)

43486-001-810

Unavailable

5

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

6

CABLE, FR. BRAKE

45450-GB4-600

$25.43

6

CABLE, FR. BRAKE This part replaces 45450-033-000.

45450-GB4-600

$25.43

6

CABLE, FR. BRAKE This part replaces 45450-053-000.

45450-GB4-600

$25.43

7

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

7

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

7

JOINT A, BRAKE ARM

95015-31001

$1.53

8

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-001-000.

95015-41000

$1.49

8

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

8

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

9

BOLT, RR. BRAKE CABLE ADJUSTING (NOT AVAILABLE)

53192-030-000

Unavailable

10

HANDLEBAR (NOT AVAILABLE) This part replaces 53100-033-000.

53100-053-010

Unavailable

10

HANDLEBAR (NOT AVAILABLE)

53100-053-010

Unavailable

11

HOLDER, HANDLEBAR (UPPER) (NOT AVAILABLE) | Use up to Frame SN 142215

53131-030-000

Unavailable

11

HOLDER, HANDLEBAR (UPPER) (NOT AVAILABLE) | Use from Frame SN 142216

53131-030-010

Unavailable

12

HOLDER, HANDLEBAR (LOWER) (NOT AVAILABLE) | Use up to Frame SN 142215

53132-030-000

Unavailable

12

HOLDER, HANDLEBAR (LOWER) (NOT AVAILABLE) | Use from Frame SN 142216

53132-030-010

$38.75

13

RUBBER A, CUSHION HANDLEBAR (NOT AVAILABLE) | Use up to Frame SN 142215

53133-030-000

Unavailable

13

RUBBER A, CUSHION HANDLEBAR (NOT AVAILABLE) | Use from Frame SN 142216

53133-030-010

Unavailable

14

RUBBER B, CUSHION HANDLEBAR (NOT AVAILABLE) | Use up to Frame SN 142215

53134-030-000

Unavailable

14

RUBBER B, CUSHION HANDLEBAR (NOT AVAILABLE) | Use from Frame SN 142216

53134-030-010

Unavailable

15

RUBBER C, CUSHION HANDLEBAR (NOT AVAILABLE)

53135-030-000

Unavailable

16

COLLAR A, HANDLEBAR HOLDER SETTING (NOT AVAILABLE) | Use up to Frame SN 142215

53136-030-000

Unavailable

16

COLLAR A, HANDLEBAR HOLDER SETTING (NOT AVAILABLE) | Use from Frame SN 142216

53136-030-010

Unavailable

17

COLLAR B, HANDLEBAR HOLDER SETTING (NOT AVAILABLE) | Use up to Frame SN 142215

53137-030-000

Unavailable

17

COLLAR B, HANDLEBAR HOLDER SETTING (NOT AVAILABLE) | Use from Frame SN 142216

53137-030-010

Unavailable

18

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-033-000

Unavailable

19

HINGE, THROTTLE GRIP (NOT AVAILABLE)

53161-001-000

$5.49

20

HINGE, THROTTLE CABLE

53161-033-000

Unavailable

21

HOLDER, THROTTLE CABLE (OUTER)

53162-001-020

Unavailable

21

HOLDER, THROTTLE CABLE (OUTER) This part replaces 53162-011-020.

53162-001-020

Unavailable

22

RUBBER, R. GRIP (NOT AVAILABLE)

53165-033-000

Unavailable

23

GRIP, L. HANDLEBAR (NOT AVAILABLE)

53166-033-000

Unavailable

24

LEVER, R. HANDLEBAR (NOT AVAILABLE) This part replaces 53175-011-000.

53175-053-670

Unavailable

24

LEVER, R. HANDLEBAR (NOT AVAILABLE)

53175-053-670

Unavailable

25

LEVER, L. HANDLEBAR This part replaces 53178-011-000.

53178-053-670

Unavailable

25

LEVER, L. HANDLEBAR

53178-053-670

Unavailable

26

SCREW, HANDLE LEVER PIVOT (NOT AVAILABLE)

90114-011-000

Unavailable

27

BOLT A, HANDLE HOLDER SETTING (NOT AVAILABLE) | Use up to Frame SN 142215

90117-030-000

Unavailable

27

BOLT A, HANDLE HOLDER SETTING (NOT AVAILABLE) | Use from Frame SN 142216

90117-030-010

Unavailable

28

NUT, FIXING This part replaces 90321-001-810.

90321-315-670

$7.31

28

NUT, FIXING This part replaces 90321-268-000.

90321-315-670

$7.31

28

NUT, FIXING

90321-315-670

$7.31

28

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

29

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

30

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

31

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

31

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

32

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

32

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

33

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM)

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

34

WASHER, PLAIN (6MM)

94101-06800

$1.49
