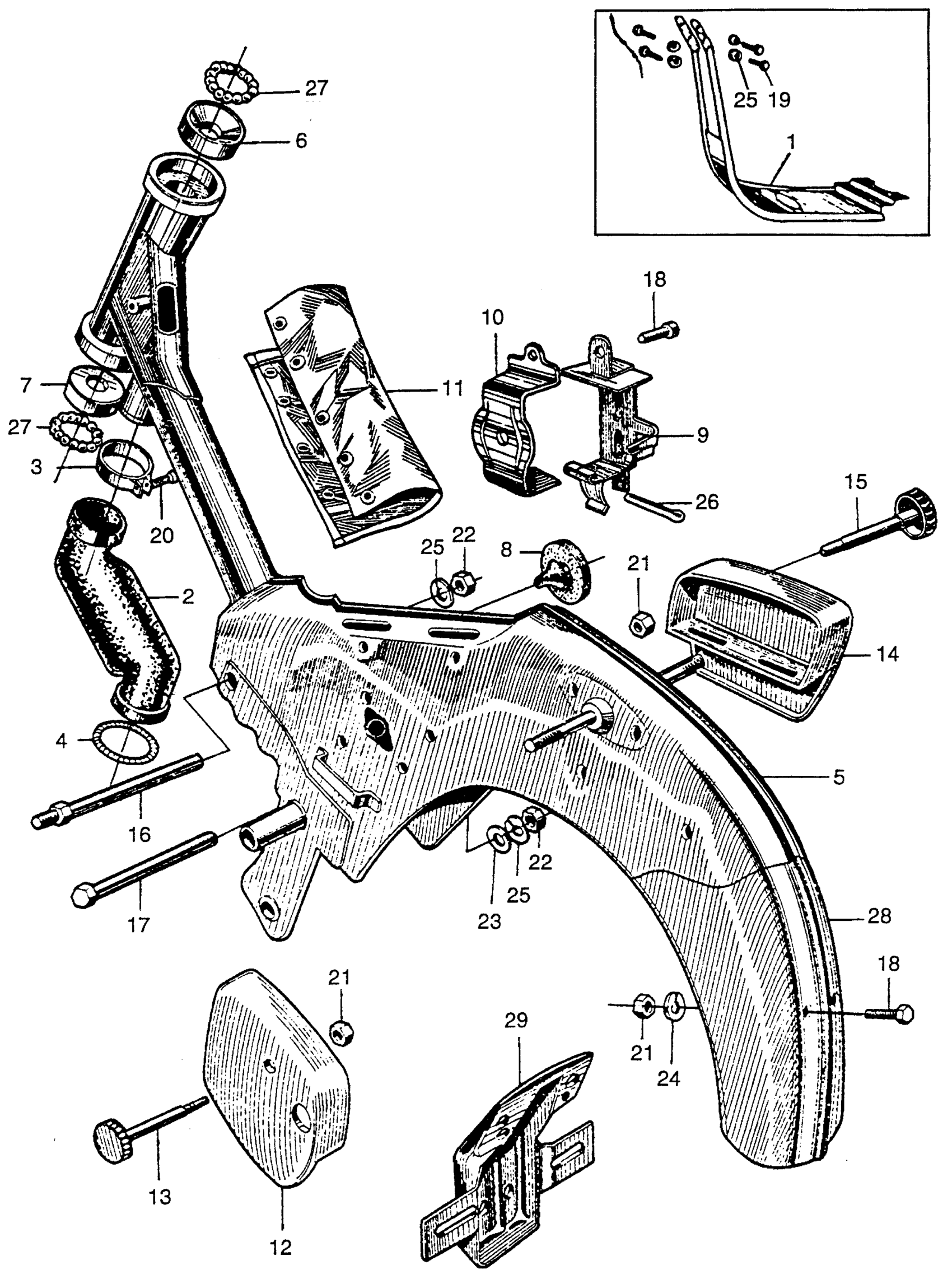

Honda CT200A MOTORCYCLE, JPN, VIN# CT200-100001 FRAME Diagram

#

Description
Price

1

GUARD, ENGINE (NOT AVAILABLE)

11911-033-000

Unavailable

2

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE) | Use up to Frame SN 147645

17253-033-000

Unavailable

2

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE) | Use from Frame SN 147646

17253-033-020

Unavailable

3

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 17255-001-010.

95018-34250

$11.06

3

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 17255-041-000.

95018-34250

$11.06

3

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 90652-GHB-600.

95018-34250

$11.06

3

BAND, AIR CLEANER CONNECTING TUBE (34)

95018-34250

$11.06

4

SPRING, CONNECTING TUBE (NOT AVAILABLE)

17255-033-000

Unavailable

5

FRAME | Use up to Frame SN 121365

50100-033-000Z

Unavailable

5

FRAME | Use from Frame SN 121366

50100-033-010Z

Unavailable

6

RACE, STEERING BALL This part replaces 50301-030-305.

50301-041-010

$11.38

6

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$11.38

6

RACE, STEERING TOP BALL

50301-041-010

$11.38

6

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$11.38

6

RACE, STEERING BALL This part replaces 50301-918-000.

50301-041-010

$11.38

6

RACE, STEERING BALL This part replaces 50302-030-305.

50301-041-010

$11.38

7

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$11.38

7

RACE, STEERING TOP BALL

50301-041-010

$11.38

7

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$11.38

7

RACE, STEERING BALL This part replaces 50302-030-305.

50301-041-010

$11.38

8

RUBBER, BATTERY STAY (NOT AVAILABLE)

50326-003-000

Unavailable

9

BAND, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

50373-033-000B

Unavailable

10

PLATE, BATTERY SUPPORT *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 121366

50381-001-810B

Unavailable

11

PROTECTOR, WIRE HARNESS (NOT AVAILABLE) This part replaces 50382-033-000.

50382-053-000

Unavailable

11

PROTECTOR, WIRE HARNESS (NOT AVAILABLE)

50382-053-000

Unavailable

12

COVER, TOOL BOX *R2* (SCARLET) (NOT AVAILABLE) This part replaces 83500-001-810C.

83500-041-000C

Unavailable

12

BOX, TOOL *Y16L* (BRIGHT YELLOW) (NOT AVAILABLE) This part replaces 83500-001-810XB.

83500-041-000XB

Unavailable

12

COVER, TOOL BOX *R2* (SCARLET) (NOT AVAILABLE)

83500-041-000C

Unavailable

12

BOX, TOOL *Y16L* (BRIGHT YELLOW) (NOT AVAILABLE)

83500-041-000XB

Unavailable

13

LATCH, TOOL BOX *NH1* (BLACK) This part replaces 83550-001-000B.

83550-001-000ZA

Unavailable

13

LATCH, TOOL BOX *NH1* (BLACK)

83550-001-000ZA

Unavailable

14

BOX, BATTERY *R2* (SCARLET) (NOT AVAILABLE) This part replaces 83600-003-010C.

83600-041-000C

Unavailable

14

BOX, BATTERY *Y16L* (BRIGHT YELLOW) (NOT AVAILABLE) This part replaces 83600-003-010XB.

83600-041-000XB

Unavailable

14

BOX, BATTERY *R2* (SCARLET) (NOT AVAILABLE)

83600-041-000C

Unavailable

14

BOX, BATTERY *Y1* (IVORY YELLOW) (NOT AVAILABLE)

83600-041-000R

Unavailable

14

BOX, BATTERY *Y16L* (BRIGHT YELLOW) (NOT AVAILABLE)

83600-041-000XB

Unavailable

15

LATCH, TOOL BOX

83650-003-000

$6.21

16

BOLT A, RR. ENGINE SUPPORT | Use up to Frame SN 118840

90112-003-000

$7.79

16

BOLT, RR. ENGINE SUPPORT (NOT AVAILABLE) | Use from Frame SN 118841

90112-033-000

Unavailable

17

BOLT, RR. ENGINE (LOWER) | Use up to Frame SN 118840 This part replaces 90116-001-000.

90116-001-010

$8.12

17

BOLT, RR. ENGINE (LOWER) | Use up to Frame SN 118840

90116-001-010

$8.12

17

BOLT, RR. ENGINE (LOWER) | Use up to Frame SN 118840 This part replaces 90116-005-000.

90116-001-010

$8.12

17

BOLT, RR. ENGINE (LOWER) (NOT AVAILABLE) | Use from Frame SN 118841

90116-033-000

Unavailable

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.31

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.31

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.31

19

BOLT, HEX. (8X14) This part replaces 92000-08014-0A.

92101-08014-0A

Unavailable

19

BOLT, HEX. (8X14)

92101-08014-0A

Unavailable

20

SCREW, PAN (4X18) This part replaces 93500-04018.

93500-04018-0A

$0.62

20

SCREW, PAN (4X18)

93500-04018-0A

$0.62

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.21

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.21

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.21

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.21

21

NUT, HEX. (6MM)

94001-06200-0S

$1.21

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.21

22

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

Unavailable

22

NUT, HEX. (8MM)

94030-08000

Unavailable

22

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

Unavailable

23

WASHER, PLAIN (8MM)

94101-08000

$0.76

24

WASHER, SPRING (6MM)

94111-06000

$0.87

25

WASHER, SPRING (8MM)

94111-08000

$0.91

26

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.96

26

PIN, COTTER (3.0X45)

94201-30450

$0.96

27

BALL, STEEL (#6) (3/16)

96211-06000

$0.47

28

FENDER, RR. (NOT AVAILABLE) This part replaces 50212-033-300Z.

50207-053-300Z

Unavailable

29

BRACKET, TAILLIGHT (NOT AVAILABLE)

50215-001-821Z

Unavailable
