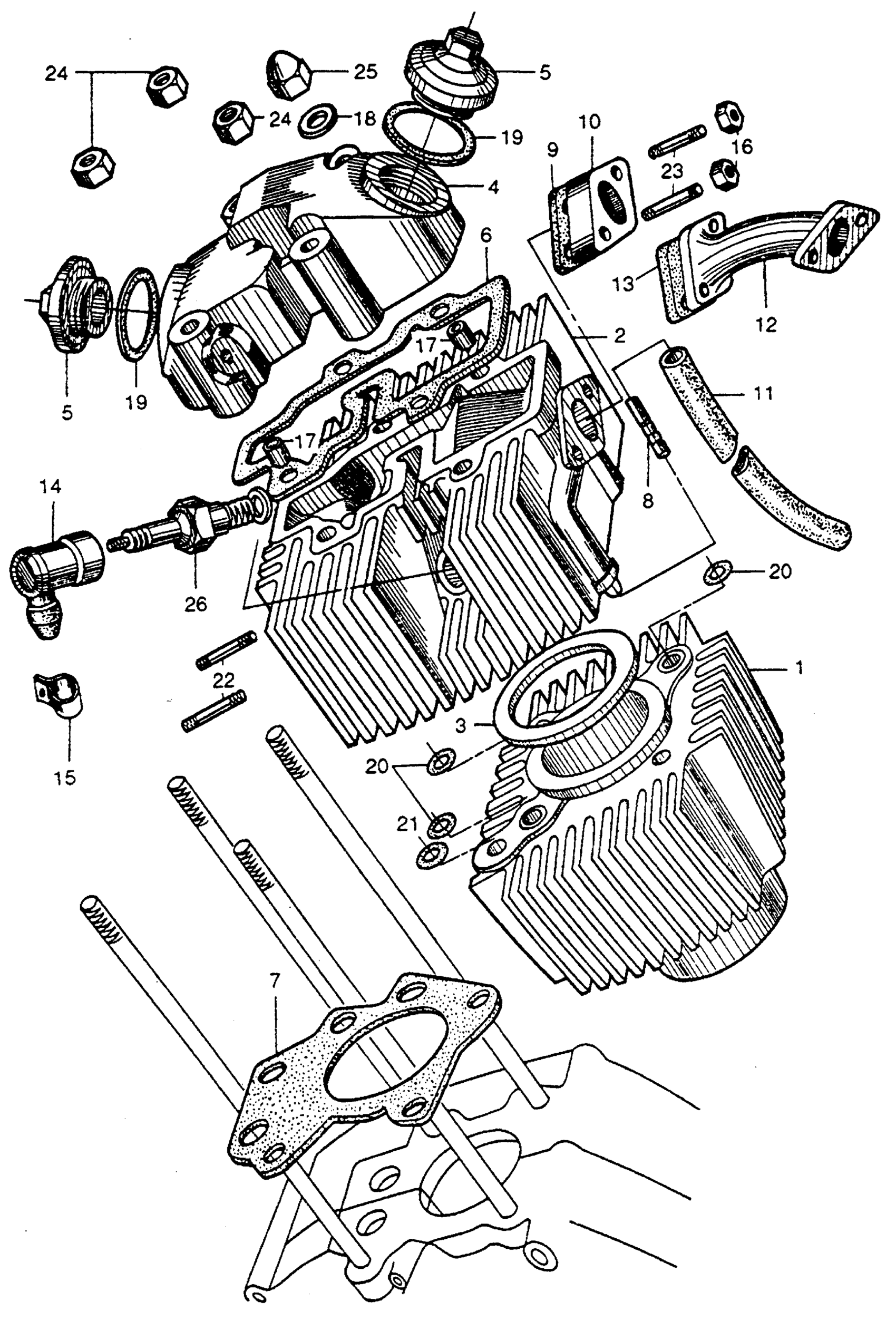

Honda CT200A MOTORCYCLE, JPN, VIN# CT200-100001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

NI

GUARD, ENGINE (NOT AVAILABLE)

11911-033-000

Unavailable

1

CYLINDER (NOT AVAILABLE)

12101-030-600

Unavailable

2

CYLINDER HEAD (NOT AVAILABLE)

12201-030-030

Unavailable

3

GASKET, CYLINDER HEAD (NOT AVAILABLE)

12251-028-000

Unavailable

4

COVER, CYLINDER HEAD (NOT AVAILABLE) This part replaces 12300-030-000.

12300-030-010

Unavailable

4

COVER, CYLINDER HEAD (NOT AVAILABLE)

12300-030-010

Unavailable

5

CAP, TAPPET (NOT AVAILABLE)

12361-001-020

Unavailable

6

GASKET, CYL HD CVR This part replaces 12391-030-000.

12391-030-306

Unavailable

7

GASKET, CYLINDER This part replaces 12191-030-000.

12191-030-306

Unavailable

8

PLUG A, AIR (NOT AVAILABLE) | Use up to Engine SN 151795

12911-703-010

Unavailable

9

GASKET, CARBURETOR (NOT AVAILABLE) | Use up to Engine SN 147645

16201-033-000

Unavailable

9

GASKET, CARBURETOR (NOT AVAILABLE) | Use from Engine SN 147646

16201-033-010

Unavailable

10

INSULATOR, CARBURETOR (NOT AVAILABLE) | Use up to Engine SN 147645

16211-033-000

Unavailable

10

INSULATOR, CARBURETOR (NOT AVAILABLE) | Use from Engine SN 147646

16211-033-010

Unavailable

11

TUBE, CONNECTING (NOT AVAILABLE) | Use up to Engine SN 151795

16231-033-000

Unavailable

12

PIPE, INLET | Use from Engine SN 147646

17111-033-000

Unavailable

13

GASKET, IN. PIPE (NOT AVAILABLE) | Use from Engine SN 147646

17119-033-000

Unavailable

14

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

14

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

14

CAP ASSY. This part replaces 30700-259-600.

30700-MG7-003

$14.30

15

CLIP, IGNITION WIRE (NOT AVAILABLE)

32906-011-010

Unavailable

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

17

PIN A, DOWEL (10X14)

94301-10140

$2.28

18

WASHER, SEAL (8MM) This part replaces 90441-216-000.

90441-286-000

$1.90

18

WASHER, SEAL (8MM) This part replaces 90441-259-000.

90441-286-000

$1.90

18

WASHER, SEAL (8MM)

90441-286-000

$1.90

19

O-RING (30.8MM)

91302-001-020

$3.75

20

O-RING (11X2.0)

91303-259-000

$3.26

21

GASKET, RUBBER (7.5MM)

91306-001-000

Unavailable

22

BOLT, STUD (6X27) (NOT AVAILABLE)

92700-06027

Unavailable

23

BOLT, STUD (6X33) (SOURCE: VINTAGE PARTS INC.)

92712-06033

Unavailable

24

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

24

NUT, HEX. (8MM)

94030-08000

$1.49

24

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

25

NUT, CAP (8MM) This part replaces 90012-286-000.

94021-08000-0S

$1.55

25

NUT, CAP (8MM) This part replaces 94021-08000.

94021-08000-0S

$1.55

25

NUT, CAP (8MM)

94021-08000-0S

$1.55

25

NUT, CAP (8MM) This part replaces 94022-08000-0S.

94021-08000-0S

$1.55

26

SPARK PLUG (D8HA) (NGK) This part replaces 98066-58710.

98066-58717

$2.44

26

SPARK PLUG (D8HA) (NGK) This part replaces 98066-58714.

98066-58717

$2.44

26

SPARK PLUG (D8HA) (NGK)

98066-58717

$2.44

26

SPARK PLUG (D8HA) (NGK) This part replaces 98066-58717-00.

98066-58717

$2.44
