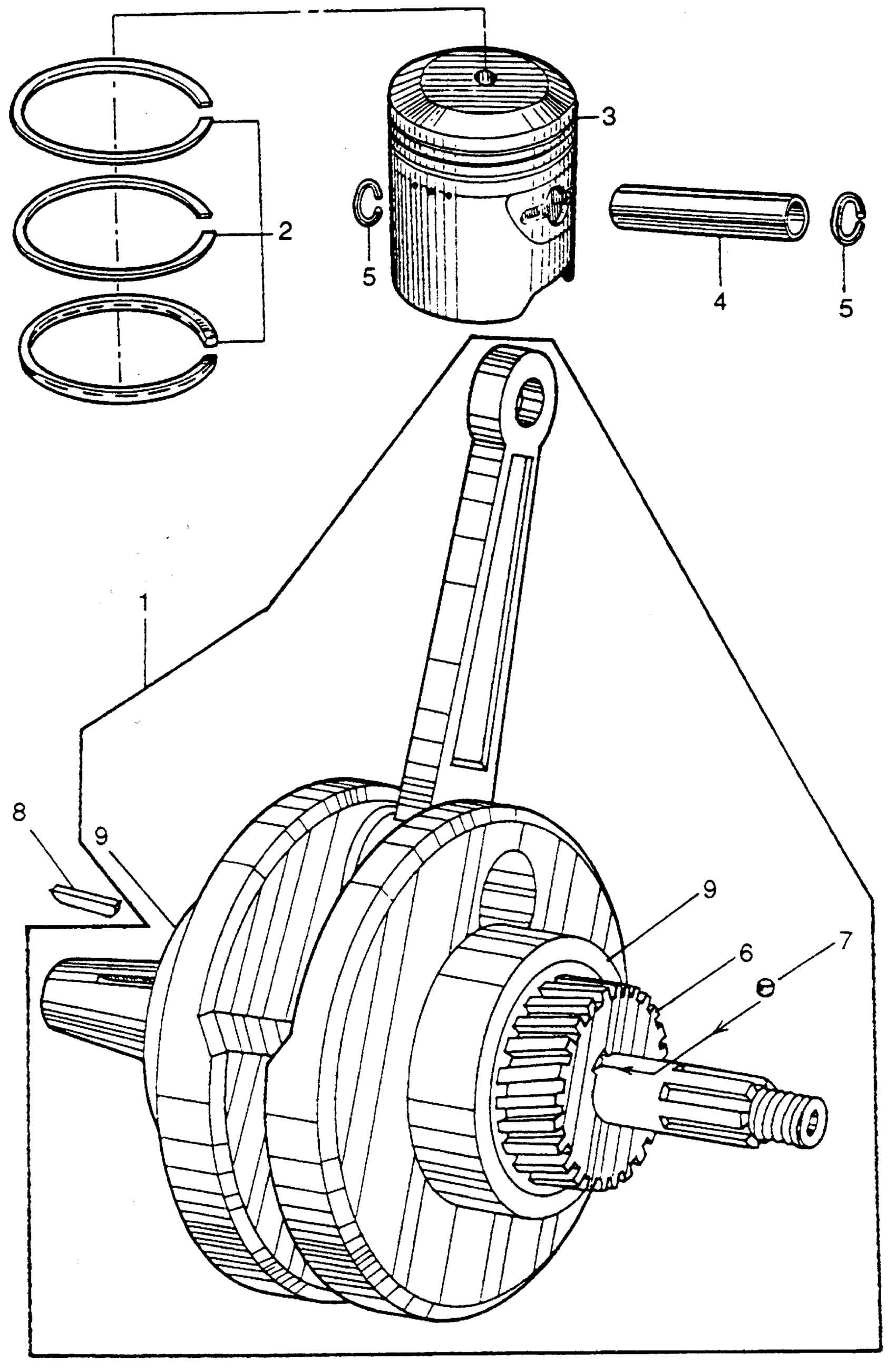

Honda CT200A MOTORCYCLE, JPN, VIN# CT200-100001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY.

13000-030-010

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE) This part replaces 13010-201-000.

13011-030-000

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE)

13011-030-000

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE) This part replaces 13011-201-000.

13011-030-000

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13020-201-000.

13021-030-000

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

13021-030-000

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13021-201-000.

13021-030-000

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13030-201-000.

13031-030-000

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13031-030-000

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-201-000.

13031-030-000

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional). This part replaces 13040-201-000.

13041-030-000

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional). This part replaces 13041-201-000.

13041-030-000

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

13050-201-000

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13051-201-000.

13050-201-000

Unavailable

3

PISTON (STD)

13101-030-000

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-030-000

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-030-000

$125.07

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-030-000

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-030-000

Unavailable

4

PIN, PISTON This part replaces 13111-207-000.

13111-707-000

Unavailable

4

PIN, PISTON

13111-707-000

Unavailable

5

CLIP, PISTON PIN

13115-200-000

$1.49

5

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

6

GEAR, TIMING (NOT AVAILABLE)

14311-030-000

$110.26

7

PIN, TIMING SPROCKET KNOCK (NOT AVAILABLE)

90719-200-000

Unavailable

8

KEY, WOODRUFF

90741-253-000

Unavailable

9

BEARING, RADIAL BALL (6305Z) (NOT AVAILABLE)

96120-63050

Unavailable
