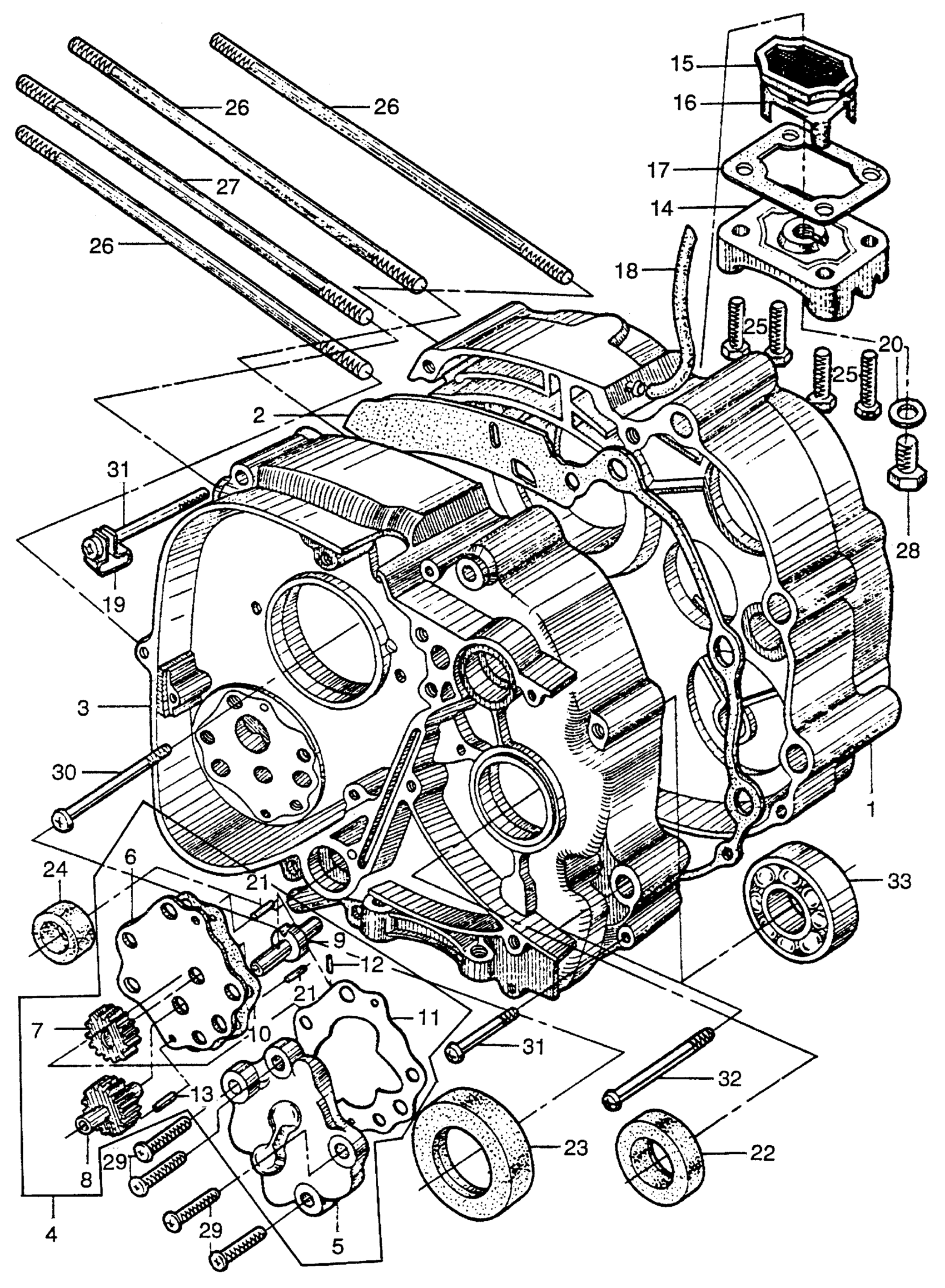

Honda CT200A MOTORCYCLE, JPN, VIN# CT200-100001 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE) | Use up to Engine SN 112040 This part replaces 11100-033-000.

11100-033-020

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE) | Use from Engine SN 112041 This part replaces 11100-033-010.

11100-033-020

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE)

11100-033-020

Unavailable

2

GASKET, CRANKCASE (NOT AVAILABLE)

11191-030-000

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 120815 This part replaces 11200-030-020.

11200-034-020

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 120815 This part replaces 11200-030-030.

11200-034-020

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 120815 This part replaces 11200-030-050.

11200-034-020

Unavailable

3

CRANKCASE, L. | Use up to Engine SN 120815

11200-034-020

Unavailable

3

CRANKCASE, L. | Use from Engine SN 124735

11200-034-020

Unavailable

4

PUMP ASSY., OIL (NOT AVAILABLE) | Use up to Engine SN 120815

15100-030-010

Unavailable

4

PUMP ASSY., OIL (NOT AVAILABLE) | Use from Engine SN 120816 to 132441 This part replaces 15100-030-030.

15100-030-040

Unavailable

4

PUMP ASSY., OIL (NOT AVAILABLE) | Use from Engine SN 132442

15100-030-040

Unavailable

5

BODY, OIL PUMP (NOT AVAILABLE) | Use up to Engine SN 120815

15111-030-010

Unavailable

5

BODY, OIL PUMP | Use from Engine SN 120816 to 138215

15111-030-030

Unavailable

5

BODY, OIL PUMP | Use from Engine SN 138216

15111-030-040

Unavailable

6

COVER, OIL PUMP SIDE | Use up to Engine SN 120815

15121-030-010

Unavailable

6

COVER, OIL PUMP SIDE | Use from Engine SN 120816

15121-030-030

Unavailable

7

GEAR, OIL PUMP DRIVE | Use up to Engine SN 120815

15131-030-000

Unavailable

7

GEAR, OIL PUMP DRIVE | Use from Engine SN 120816 to 132441

15131-030-010

Unavailable

7

GEAR, OIL PUMP DRIVE | Use from Engine SN 132442 to 138215

15131-030-020

Unavailable

7

GEAR, OIL PUMP DRIVE | Use from Engine SN 138216

15131-030-030

Unavailable

8

GEAR, OIL PUMP DRIVEN

15142-030-000

Unavailable

9

SHAFT, OIL PUMP DRIVE GEAR | Use up to Engine SN 120815

15182-030-000

Unavailable

9

SHAFT, OIL PUMP DRIVE GEAR | Use from Engine SN 120816 to 138215

15182-030-010

Unavailable

9

SHAFT, OIL PUMP DRIVE GEAR | Use from Engine SN 138216

15182-030-020

Unavailable

10

GASKET A, OIL PUMP (NOT AVAILABLE) | Use up to Engine SN 120715

15192-030-010

Unavailable

10

GASKET A, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 120816

15192-030-030

Unavailable

11

GASKET B, OIL PUMP (NOT AVAILABLE) | Use up to Engine SN 120815 This part replaces 15193-030-010.

15193-030-030

Unavailable

11

GASKET B, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 120816

15193-030-030

Unavailable

12

PIN, OIL PUMP GEAR LOCKING (NOT AVAILABLE) | Use from Engine SN 132442

15194-250-000

Unavailable

13

PIN (2.5X8MM) (NOT AVAILABLE)

90701-030-000

Unavailable

14

COVER, OIL STRAINER (NOT AVAILABLE)

15416-030-000

Unavailable

15

STRAINER, OIL (NOT AVAILABLE) | Use from Engine SN 148673

15421-030-020

Unavailable

16

STRAINER, OIL (NOT AVAILABLE) | Use up to Engine SN 187002

15421-030-000

Unavailable

16

STRAINER, OIL

15421-030-010

Unavailable

16

HOLDER, OIL STRAINER (NOT AVAILABLE)

15431-030-000

Unavailable

16

HOLDER, OIL STRAINER

15431-030-010

Unavailable

17

GASKET, OIL STRAINER COVER (NOT AVAILABLE)

15439-030-000

Unavailable

18

PUMP ASSY., OIL (NOT AVAILABLE)

15761-033-000

Unavailable

19

CLIP, IGNITION WIRE (NOT AVAILABLE)

32906-011-010

Unavailable

19

CLIP, IGNITION WIRE

32906-030-000

Unavailable

20

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

21

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

21

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

21

PIN, KNOCK (3.5X10MM) (NOT AVAILABLE) | Use up to Engine SN 138215

90703-030-000

Unavailable

21

PIN, KNOCK (3.5X10MM) (NOT AVAILABLE) | Use from Engine SN 112816

90703-030-010

Unavailable

21

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

22

OIL SEAL (20X34X7)

91201-030-015

Unavailable

22

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

22

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

22

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

23

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

23

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

24

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-000.

91201-030-033

$5.54

24

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-003.

91201-030-033

$5.54

24

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

24

OIL SEAL (20X34X7)

91201-030-015

Unavailable

24

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

24

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

24

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

24

OIL SEAL (25X52X7) (NOT AVAILABLE)

91202-030-000

Unavailable

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

24

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

24

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

24

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

25

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

25

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

26

BOLT, STUD (8X188)

92700-08188-30

Unavailable

27

BOLT, STUD (8X193) (SOURCE: VINTAGE PARTS INC.)

92700-08193-30

Unavailable

28

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

29

SCREW, PAN (5X18) This part replaces 93500-05018.

93500-05018-0A

$1.49

29

SCREW, PAN (5X18)

93500-05018-0A

$1.49

30

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

30

SCREW, PAN (6X40)

93500-06040-0A

$1.49

31

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

31

SCREW, PAN (6X45)

93500-06045-0A

$1.49

32

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

32

SCREW, PAN (6X60)

93500-06060-0A

$1.49

33

BEARING, RADIAL BALL (6204) (NOT AVAILABLE)

96120-62040

Unavailable
