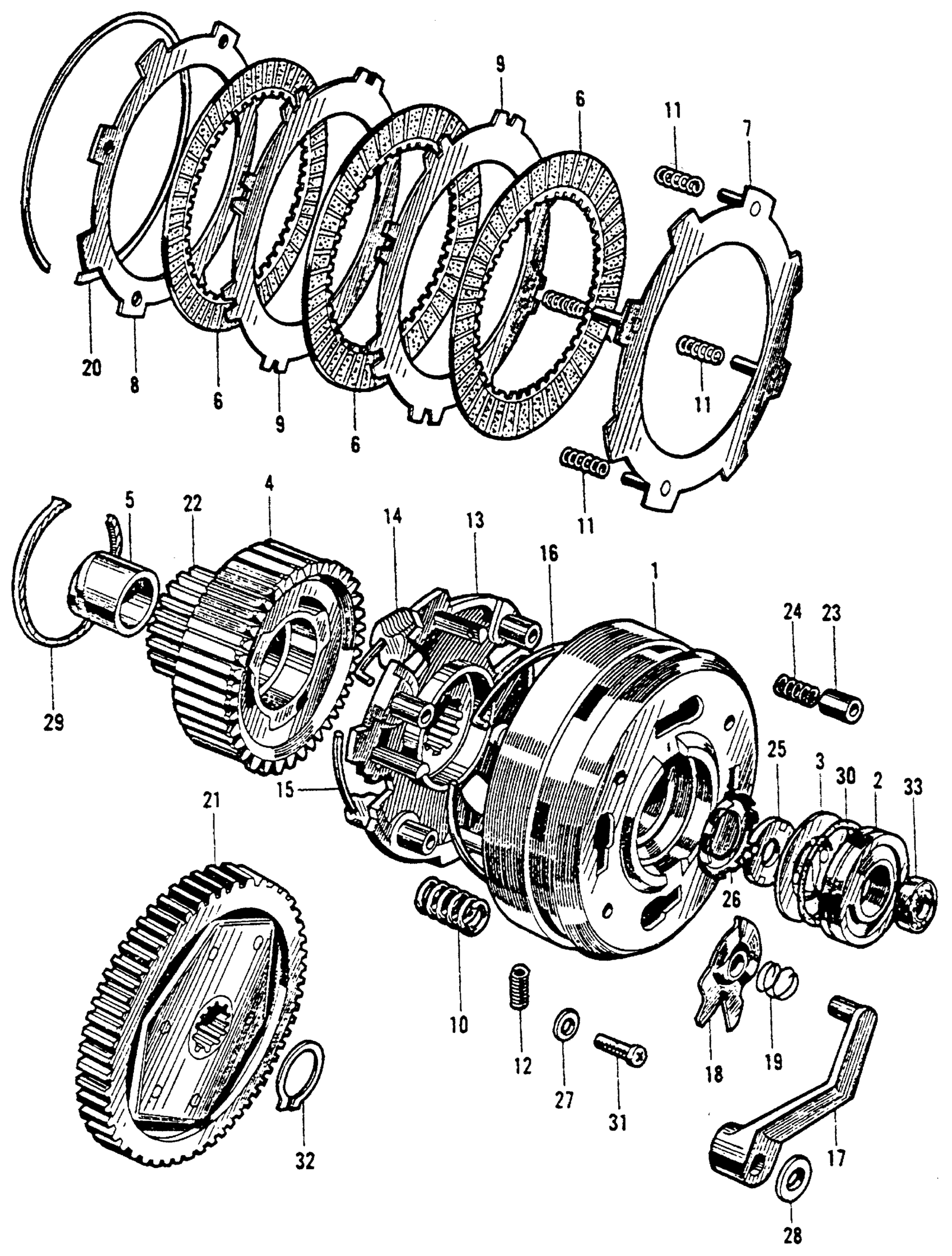

Honda CT200A MOTORCYCLE, JPN, VIN# CT200-100001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use up to Engine SN 112336 This part replaces 22101-033-000.

22101-046-010

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22101-033-010.

22101-046-010

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22101-046-000.

22101-046-010

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE)

22101-046-010

Unavailable

2

COVER, CLUTCH (OUTER) (NOT AVAILABLE)

22111-033-000

Unavailable

3

PLATE, OIL FILTER (NOT AVAILABLE)

22115-033-000

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE)

22012-046-305

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22121-033-000.

22012-046-305

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22121-046-000.

22012-046-305

Unavailable

5

GUIDE, CLUTCH CENTER This part replaces 22131-028-000.

22131-121-690

Unavailable

5

GUIDE, CLUTCH CENTER This part replaces 22131-030-000.

22131-121-690

Unavailable

5

GUIDE, CLUTCH CENTER

22131-121-690

Unavailable

6

DISK, CLUTCH FRICTION This part replaces 22201-033-010.

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION This part replaces 22201-046-000.

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION This part replaces 22201-096-000.

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION This part replaces 22201-121-306.

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION This part replaces 22201-121-690.

22201-121-631

$17.82

7

PLATE A, CLUTCH (NOT AVAILABLE) This part replaces 22310-033-000.

22311-046-000

Unavailable

7

PLATE A, CLUTCH (NOT AVAILABLE)

22311-046-000

Unavailable

8

PLATE B, CLUTCH This part replaces 22321-033-000.

22321-046-020

$9.83

8

PLATE B, CLUTCH This part replaces 22321-046-010.

22321-046-020

$9.83

8

PLATE B, CLUTCH

22321-046-020

$9.83

9

PLATE C, CLUTCH This part replaces 22331-033-000.

22331-046-000

$9.37

9

PLATE C, CLUTCH

22331-046-000

$9.37

10

SPRING, CLUTCH This part replaces 22401-033-020.

22401-046-000

Unavailable

10

SPRING, CLUTCH

22401-046-000

Unavailable

11

SPRING, CLUTCH FREE (NOT AVAILABLE) This part replaces 22411-033-020.

22411-053-000

Unavailable

11

SPRING, CLUTCH FREE (NOT AVAILABLE)

22411-053-000

Unavailable

12

SPRING, CLUTCH DAMPER This part replaces 22421-001-000.

22421-035-000

$4.15

12

SPRING, CLUTCH DAMPER

22421-035-000

$4.15

13

PLATE, DRIVE (NOT AVAILABLE)

22511-033-010

Unavailable

14

WEIGHT, CLUTCH This part replaces 22531-033-000.

22531-033-020

Unavailable

14

WEIGHT, CLUTCH This part replaces 22531-033-010.

22531-033-020

Unavailable

14

WEIGHT, CLUTCH

22531-033-020

Unavailable

15

RING, CLUTCH WEIGHT CENTER

22535-033-000

$5.56

16

RING, CLUTCH WEIGHT STOPPER

22536-033-000

$5.56

17

LEVER, CLUTCH | Use up to Engine SN 152415

22811-033-000

Unavailable

17

LEVER, CLUTCH (NOT AVAILABLE) | Use from Engine SN 152416

22811-033-010

Unavailable

18

PLATE, CLUTCH CAM (NOT AVAILABLE)

22820-033-000

Unavailable

19

SPRING, CAM PLATE SIDE (NOT AVAILABLE)

22825-001-000

Unavailable

20

SET-RING (101.5MM)

22901-001-000

$4.02

21

GEAR, PRIMARY DRIVEN (67T)

23110-028-000

Unavailable

21

GEAR, PRIMARY DRIVEN (67T) This part replaces 23110-034-000.

23110-028-000

Unavailable

22

CENTER, CLUTCH (NOT AVAILABLE)

22012-046-305

Unavailable

22

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22121-033-000.

22012-046-305

Unavailable

22

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22121-046-000.

22012-046-305

Unavailable

22

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 23111-033-000.

22012-046-305

Unavailable

22

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 23111-046-000.

22012-046-305

Unavailable

23

GUIDE, OIL (NOT AVAILABLE)

25551-033-000

Unavailable

24

SPRING, OIL GUIDE This part replaces 25555-033-000.

25555-046-000

Unavailable

24

SPRING, OIL GUIDE

25555-046-000

Unavailable

25

NUT, LOCK (16MM) This part replaces 90231-023-000.

90231-KCS-651

$4.21

25

NUT, LOCK (16MM) This part replaces 90231-028-000.

90231-KCS-651

$4.21

25

NUT, LOCK (16MM) This part replaces 90231-030-000.

90231-KCS-651

$4.21

25

NUT, LOCK (16MM) This part replaces 90231-200-000.

90231-KCS-651

$4.21

26

WASHER, LOCKING (16MM) (NOT AVAILABLE)

90431-030-000

Unavailable

27

WASHER, STOPPER This part replaces 90483-001-000.

90483-041-000

$1.92

27

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.92

28

WASHER (10.5MM) (NOT AVAILABLE)

90489-001-000

Unavailable

29

CIRCLIP (39MM) (NOT AVAILABLE)

90603-703-010

Unavailable

30

O-RING (48.6X16MM) (NOT AVAILABLE)

91304-259-010

Unavailable

31

SCREW, PAN (5X6) This part replaces 93500-05006.

93500-05006-0A

$1.49

31

SCREW, PAN (5X6)

93500-05006-0A

$1.49

32

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

32

CIRCLIP, OUTER (20MM) This part replaces 94510-20120.

94510-20000

$1.49

33

BEARING, RADIAL BALL (6000) This part replaces 96100-60000.

96100-60000-00

$8.13

33

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
