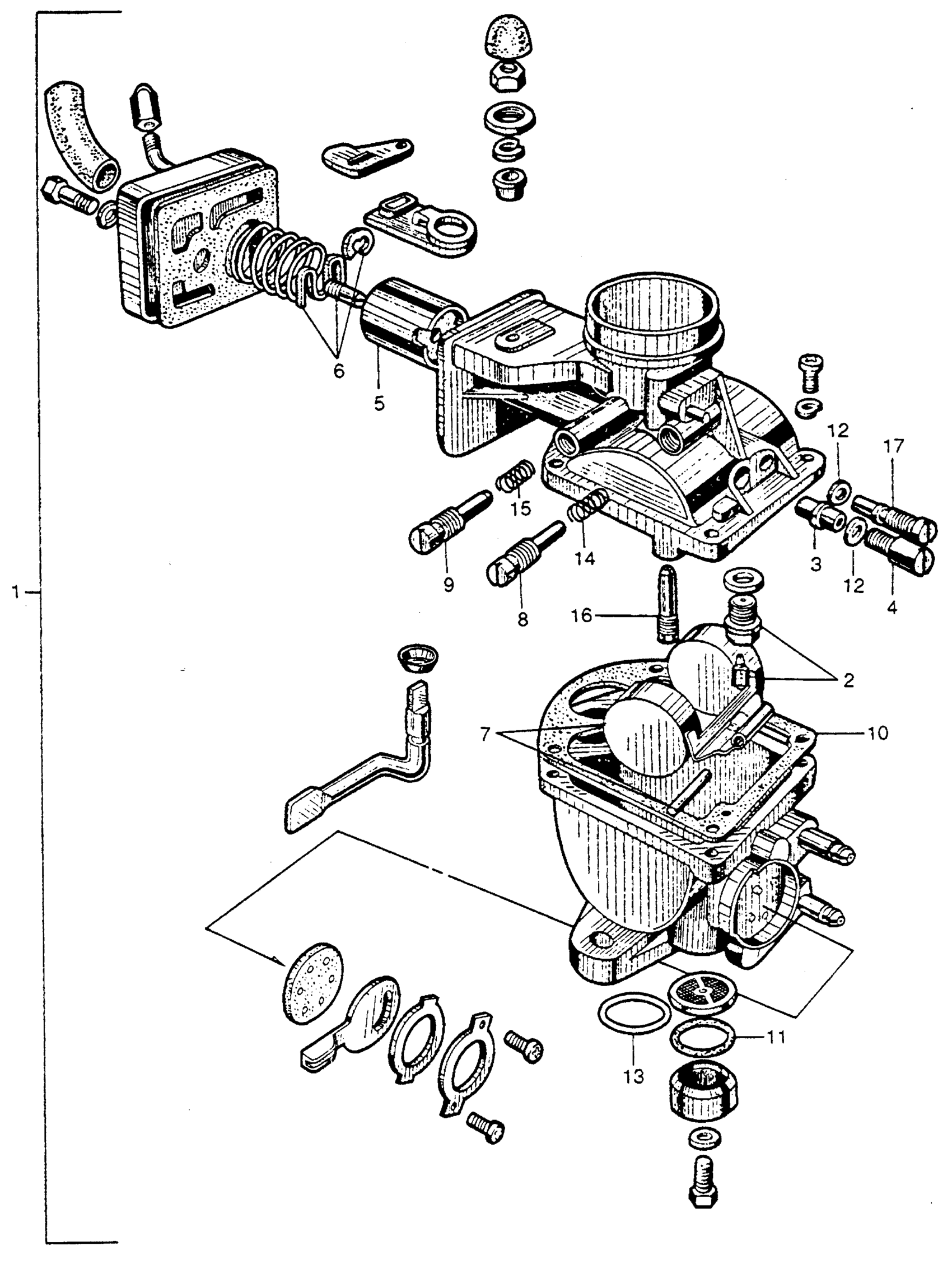

Honda CT200A MOTORCYCLE, JPN, VIN# CT200-100001 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 147645 This part replaces 16100-033-004.

16100-033-014

Unavailable

1

CARBURETOR ASSY. (NOT AVAILABLE)

16100-033-014

Unavailable

2

VALVE SET, FLOAT

16011-051-004

$16.40

2

VALVE SET, FLOAT This part replaces 16011-098-004.

16011-051-004

$16.40

2

VALVE SET, FLOAT This part replaces 16011-134-004.

16011-051-004

$16.40

2

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

2

FLOAT SET

16013-116-700

$28.61

2

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

2

FLOAT SET This part replaces 16122-201-004.

16013-116-700

$28.61

2

FLOAT SET This part replaces 16122-202-004.

16013-116-700

$28.61

2

VALVE SET, FLOAT This part replaces 16123-011-004.

16011-051-004

$16.40

2

VALVE SET, FLOAT This part replaces 16123-011-014.

16011-051-004

$16.40

3

NEEDLE, JET (NOT AVAILABLE)

16133-033-004

Unavailable

4

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-027-004

Unavailable

5

VALVE, THROTTLE (NOT AVAILABLE)

16141-033-004

Unavailable

6

NEEDLE, JET (NOT AVAILABLE)

16151-033-004

Unavailable

7

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

7

FLOAT SET

16013-116-700

$28.61

7

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

7

FLOAT SET This part replaces 16122-201-004.

16013-116-700

$28.61

8

SCREW, AIR (NOT AVAILABLE)

16162-202-004

Unavailable

9

SCREW, THROTTLE STOP

16163-217-004

Unavailable

10

WASHER, CHAMBER (NOT AVAILABLE)

16172-033-004

Unavailable

11

O-RING (24X2.4)

16173-250-004

Unavailable

12

O-RING (4.5MM)

16175-001-004

Unavailable

13

O-RING (23X2.4)

16176-001-004

Unavailable

14

SPRING, AIR SCREW (NOT AVAILABLE)

16181-202-004

$3.70

15

SPRING, THROTTLE STOP (NOT AVAILABLE)

16182-011-004

Unavailable

16

JET, MAIN (#75) (NOT AVAILABLE)

99109-07504

Unavailable

16

JET, MAIN (#78)

99109-07804

Unavailable

16

JET, MAIN (#80) (NOT AVAILABLE)

99109-08004

Unavailable

16

JET, MAIN (#82) (NOT AVAILABLE)

99109-08204

Unavailable

16

JET, MAIN (#85) (NOT AVAILABLE)

99109-08504

Unavailable

17

JET, SLOW (#35) (NOT AVAILABLE)

99126-03504

Unavailable

17

JET, SLOW (#38) (SOURCE: VINTAGE PARTS INC.)

99126-03804

Unavailable

17

JET, SLOW (#40) (SOURCE: VINTAGE PARTS INC.)

99126-04004

Unavailable

17

JET, SLOW (#42) (NOT AVAILABLE)

99126-04204

Unavailable
