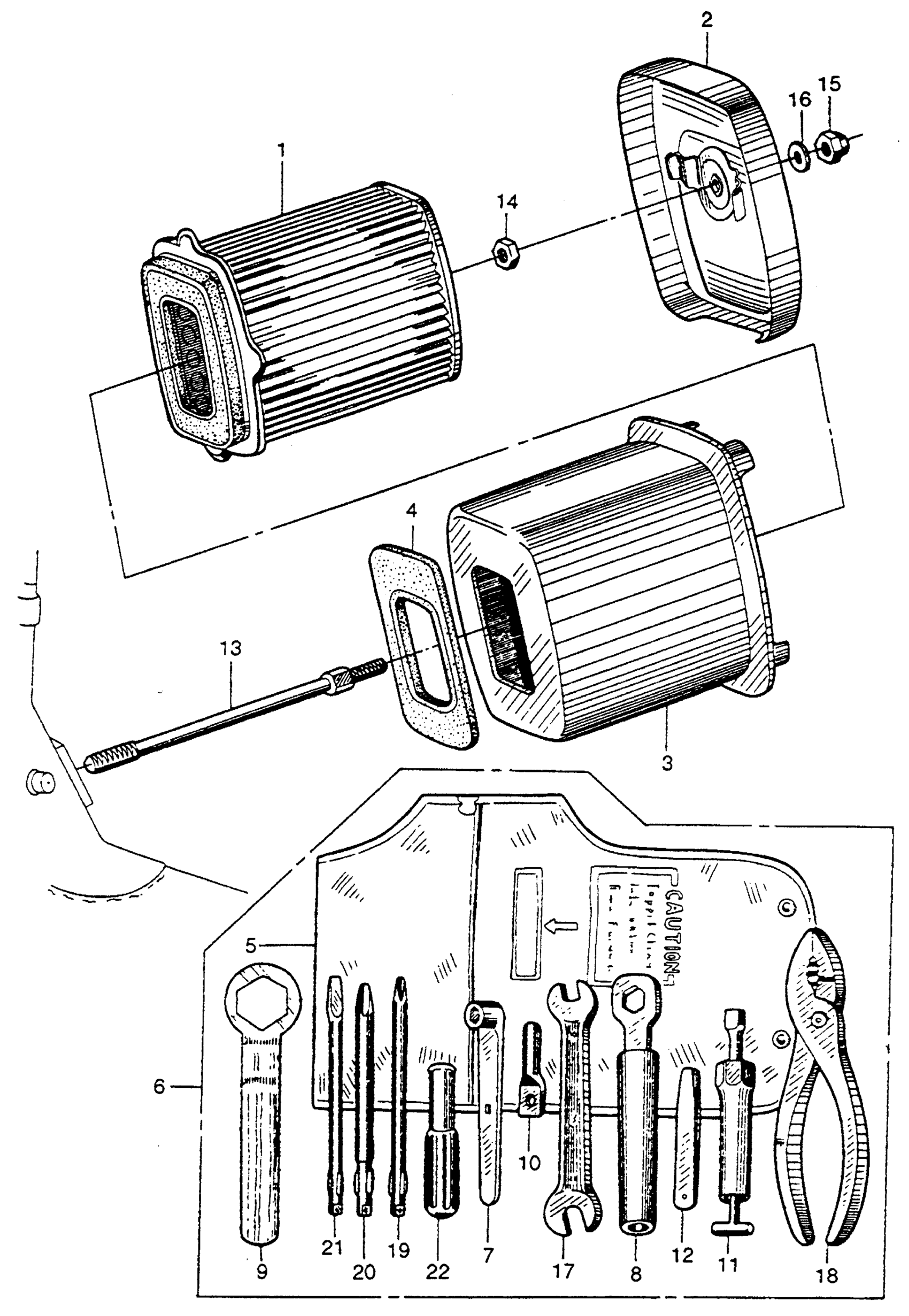

Honda CT200A MOTORCYCLE, JPN, VIN# CT200-100001 AIR CLEANER + TOOLS Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER (NOT AVAILABLE)

17211-033-000

Unavailable

2

COVER, AIR CLEANER (NOT AVAILABLE)

17220-033-000

Unavailable

3

HOUSING, AIR CLEANER (NOT AVAILABLE)

17221-033-000Z

Unavailable

4

GASKET, AIR CLEANER (NOT AVAILABLE)

17252-001-010

Unavailable

5

BAG, TOOL (160MM) This part replaces 89101-001-010.

99008-01600

$2.22

5

BAG, TOOL (160MM) This part replaces 89101-011-010.

99008-01600

$2.22

5

BAG, TOOL (160MM) This part replaces 89101-028-000.

99008-01600

$2.22

5

BAG, TOOL (160MM) This part replaces 89101-028-010.

99008-01600

$2.22

5

BAG, TOOL (160MM) This part replaces 89101-107-000.

99008-01600

$2.22

5

BAG, TOOL (160MM)

99008-01600

$2.22

6

TOOL KIT

89010-030-000

Unavailable

6

TOOL SET (NOT AVAILABLE)

89010-052-000

Unavailable

7

WRENCH, BOX (9MM) (NOT AVAILABLE)

89211-001-000

Unavailable

8

WRENCH, EYE (17) This part replaces 89212-001-000.

89218-MN8-000

$18.72

9

WRENCH, BOX (23MM) (NOT AVAILABLE)

89214-001-000

Unavailable

10

WRENCH, SOCKET (3MM)

89215-001-000

Unavailable

10

WRENCH, SOCKET (3MM) (NOT AVAILABLE)

89215-107-000

Unavailable

11

WRENCH, SPARK PLUG

89216-028-010

Unavailable

11

WRENCH, SPARK PLUG (NOT AVAILABLE) This part replaces 89216-033-000.

99004-18230

Unavailable

11

WRENCH, SPARK PLUG

89216-264-000

Unavailable

11

WRENCH, SPARK PLUG (NOT AVAILABLE)

99004-18230

Unavailable

12

GAUGE, TAPPET CLEARANCE

89231-001-000

Unavailable

13

BOLT, AIR CLEANER SETTING

90113-001-040

Unavailable

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

NUT, CAP (6MM)

94021-06020

$1.73

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WRENCH (10X14) (OPEN END)

99001-10140

$2.92

18

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

19

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

20

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

21

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

22

GRIP

99003-50000

$3.27
