1969 Yamaha CT1 (CT1) Kick - Starter Diagram

← All diagrams

Find the part on the Kick - Starter diagram for your 1969 Yamaha CT1 (CT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

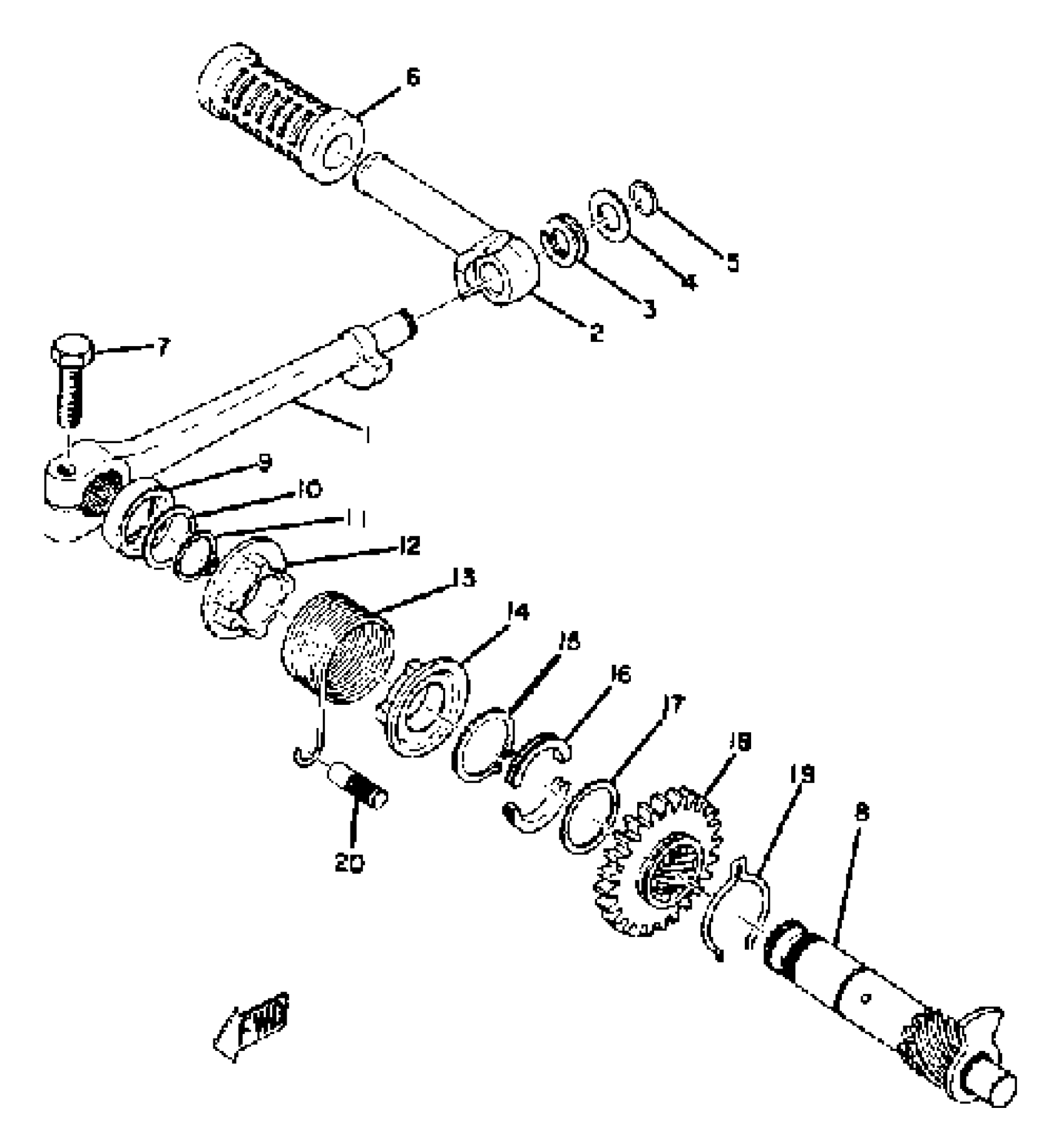

1969 Yamaha CT1 (CT1) Kick - Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSY

3V6-15620-00-00

—

$64.55

In stock

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

LEVER, KICK

(214-15612-01-00)

1
Out of stock

3

1

$4.48

In stock

4

WASHER, KICK LEVER

214-15616-00-00

1

$5.63

In stock

5

CIRCLIP 214156170000

93440-11029-00

1

$5.74

In stock

6

COVER, KICK LEVER

214-15618-00-00

1

$6.72

In stock

7

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

8

KICK AXLE ASSEMBLY

(248-15660-00-00)

1
Out of stock

9

OIL SEAL (20X30X6-648)

93101-20048-00

1

$7.31

In stock

10

WASHER, PLATE (5N0)

90201-203E7-00

—

$7.22

In stock

11

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

12

COVER, SPRING

(214-15676-00-00)

1
Out of stock

13

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

14

GUIDE, SPRING

(214-15664-00-00)

1
Out of stock

15

CIRCLIP(4A6)

99009-30400-00

—

$6.55

In stock

16

HOLDER, KICK GEAR

248-15654-00-00

—

$6.49

In stock

17

WASHER, PLATE(59W)

90201-253K0-00

—

$6.18

In stock

18

GEAR, KICK

180-15641-00-00

1
Out of stock

19

CLIP 315156870000

90468-26048-00

—
Out of stock

20

STOPPER, KICK SPRING

248-15668-00-00

—
Out of stock
