1969 Yamaha CT1 (CT1) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1969 Yamaha CT1 (CT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

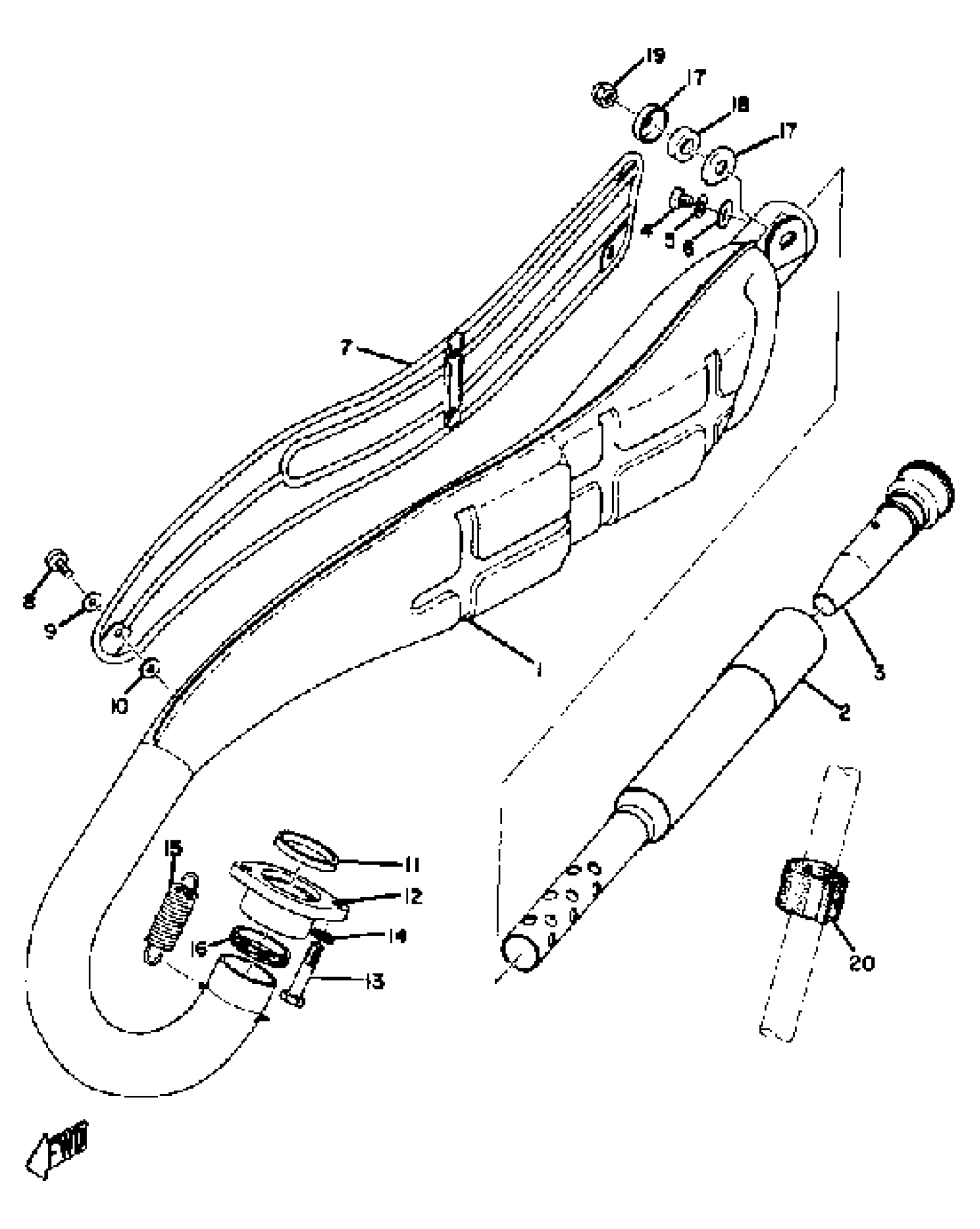

1969 Yamaha CT1 (CT1) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(261-14610-30-00)

1
Out of stock

2

. SILENCER, EXHAUST

214-14753-01-00

1
Out of stock

3

. PIPE, OUTLET

261-14752-30-00

1
Out of stock

4

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

PROTECTOR, MUFF 1

(248-14718-30-00)

1
Out of stock

8

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

9

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

10

WASHER, PLATE(3MT)

90202-05188-00

1

$6.18

In stock

11

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

12

NUT, RING

(248-14612-30-00)

1
Out of stock

13

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

SPRING 214-14683-01

90506-12029-00

—

$6.49

In stock

16

GASKET

248-14623-10-00

—

$6.22

In stock

17

PLATE, MUFFLER

(248-14794-00-00)

1
Out of stock

18

GROMMET (16R)

90480-14329-00

—

$6.68

In stock

19

NUT, CROWN

95303-08800-00

—

$7.52

In stock

20

DAMPER, MUFFLER

(248-14747-01-00)

1
Out of stock
