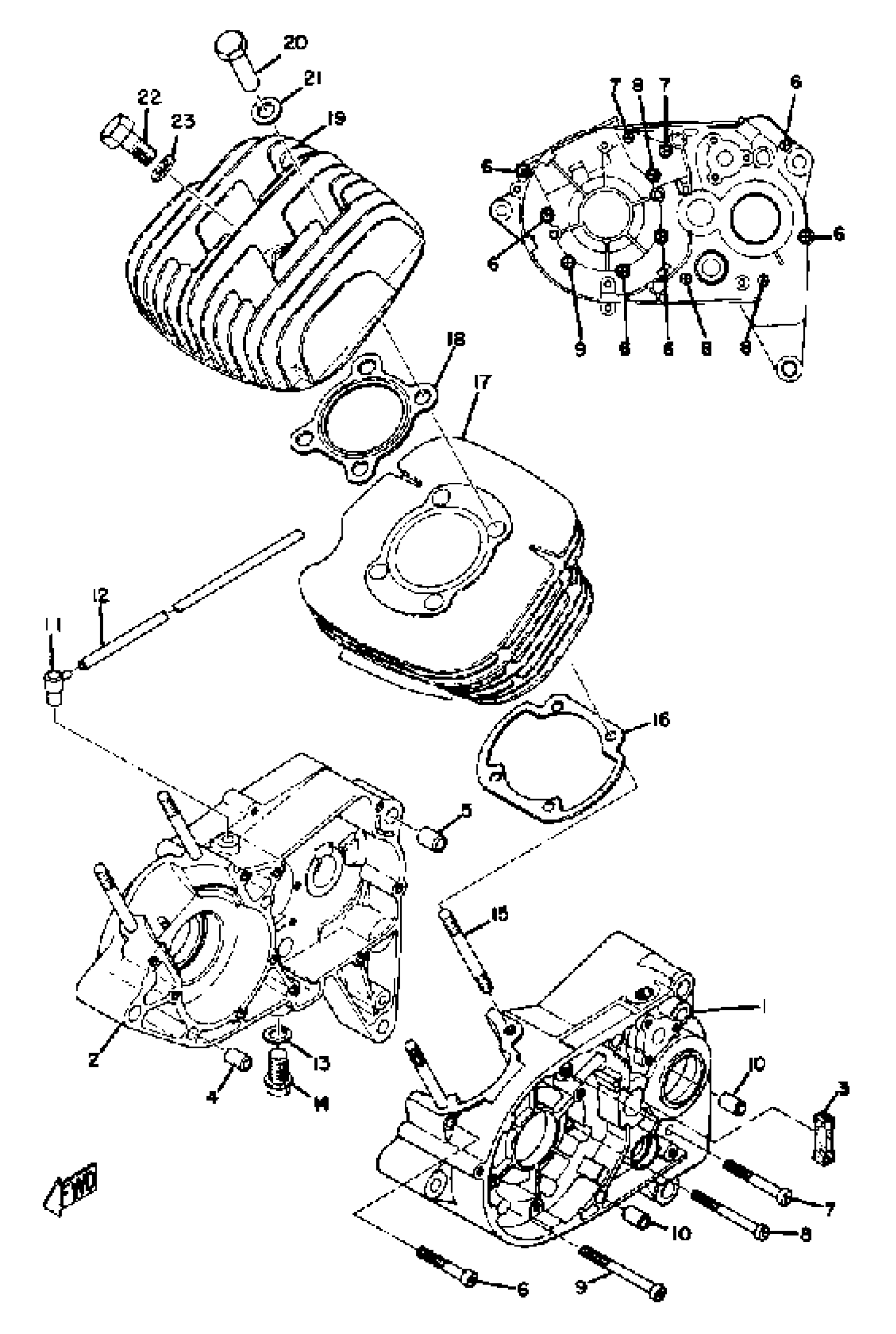

Find the part on the Crankcase diagram for your 1969 Yamaha CT1 (CT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha CT1 (CT1) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(248-15111-02-00)

1
Out of stock

2

CRANKCASE 2

(444-15121-01-00)

1
Out of stock

3

GROMMET

248-15357-00-00

1

$6.58

In stock

4

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

5

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

6

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

7

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

8

SCREW PAN HEAD

98580-06565-00

—
Out of stock

9

SCREW PAN HEAD

98580-06570-00

1

$17.32

In stock

10

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

11

BREATHER

583-15371-00-00

1
Out of stock

12

HOSE(7EG)

90446-07241-00

1

$7.42

In stock

13

GASKET (3JD1)

90430-12207-00

1

$6.77

In stock

14

1

$6.71

In stock

15

BOLT (248-11361-00)

90116-08064-00

1
Out of stock

16

GASKET, CYLINDER

1WE-11351-00-00

—

$25.54

In stock

17

CYLINDER 1

(251-11311-00-00)

1
Out of stock

18

GASKET, CYLINDER HEAD

251-11181-00-00

—

$18.88

In stock

19

HEAD, CYLINDER 1

(251-11111-00-00)

1
Out of stock

20

NUT (3V6)

90179-08303-00

—

$7.14

In stock

21

WASHER PLATE 278111750000

90201-12362-00

—

$6.42

In stock

22

PLUG, BLIND

90340-14022-00

1
Out of stock

23

GASKET

214-11198-01-00

—

$2.66

In stock

23

BEARING, CYLINDER. (2TV)

A.--

1
Out of stock

23

GEAR, KICK

B.--

1
Out of stock

23

GEAR, KICK IDLE

C.--

1
Out of stock

23

GEAR, KICK PINION

D.--

1
Out of stock

23

KICK AXLE ASSEMBLY

E.--

1
Out of stock
