1982 Kawasaki CSR Twin Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1982 Kawasaki CSR Twin, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

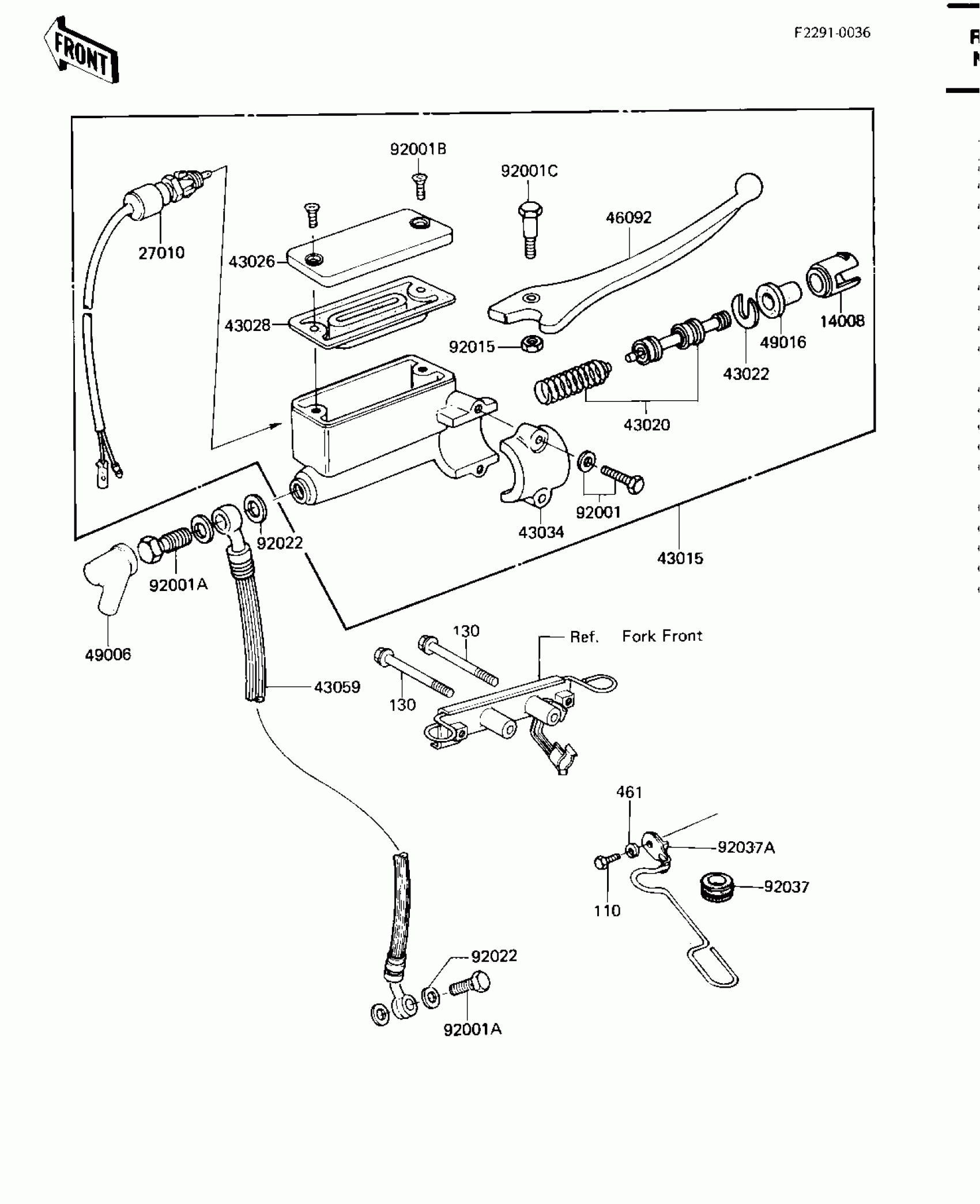

1982 Kawasaki CSR Twin Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14008

LINER,PISTON

14008-1007

1
Out of stock

27010

SWITCH,BRAKE

27010-1028

1
Out of stock

43015

CYLINDER ASSY,MASTER

43015-1043

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1027

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1001

1
Out of stock

43026

CAP-BRAKE

43026-1006

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1008

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

1
Out of stock

43059

HOSE-BRAKE,FR,L=1090

43059-1196

1
Out of stock

46092

LEVER,FRONT BRAKE

46092-1011

1
Out of stock

49006

BOOT,DUST

49006-1041

1
Out of stock

49016

COVER-SEAL,BRAKE PISTON

49016-1010

1
Out of stock

92001

BOLT,6X25,W/WASHER

43033-003

1
Out of stock

92001A

BOLT,OIL,L=23

92002-1888

1
Out of stock

92001B

SCREW-CSK-CROS,5X12,BLACK

92001-1055

1
Out of stock

92001C

BOLT,FR BRAKE LEVER

92001-1056

1
Out of stock

92015

NUT 6MM

312B0600

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1
Out of stock

92037

GROMMET,HOSE CLAMP

43064-006

1
Out of stock

92037A

CLAMP,CABLE

92037-1116

1
Out of stock

110

BOLT-UPSET,6X12

112G0612

1
Out of stock

110A

BOLT-UPSET,6X40

112G0640

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
